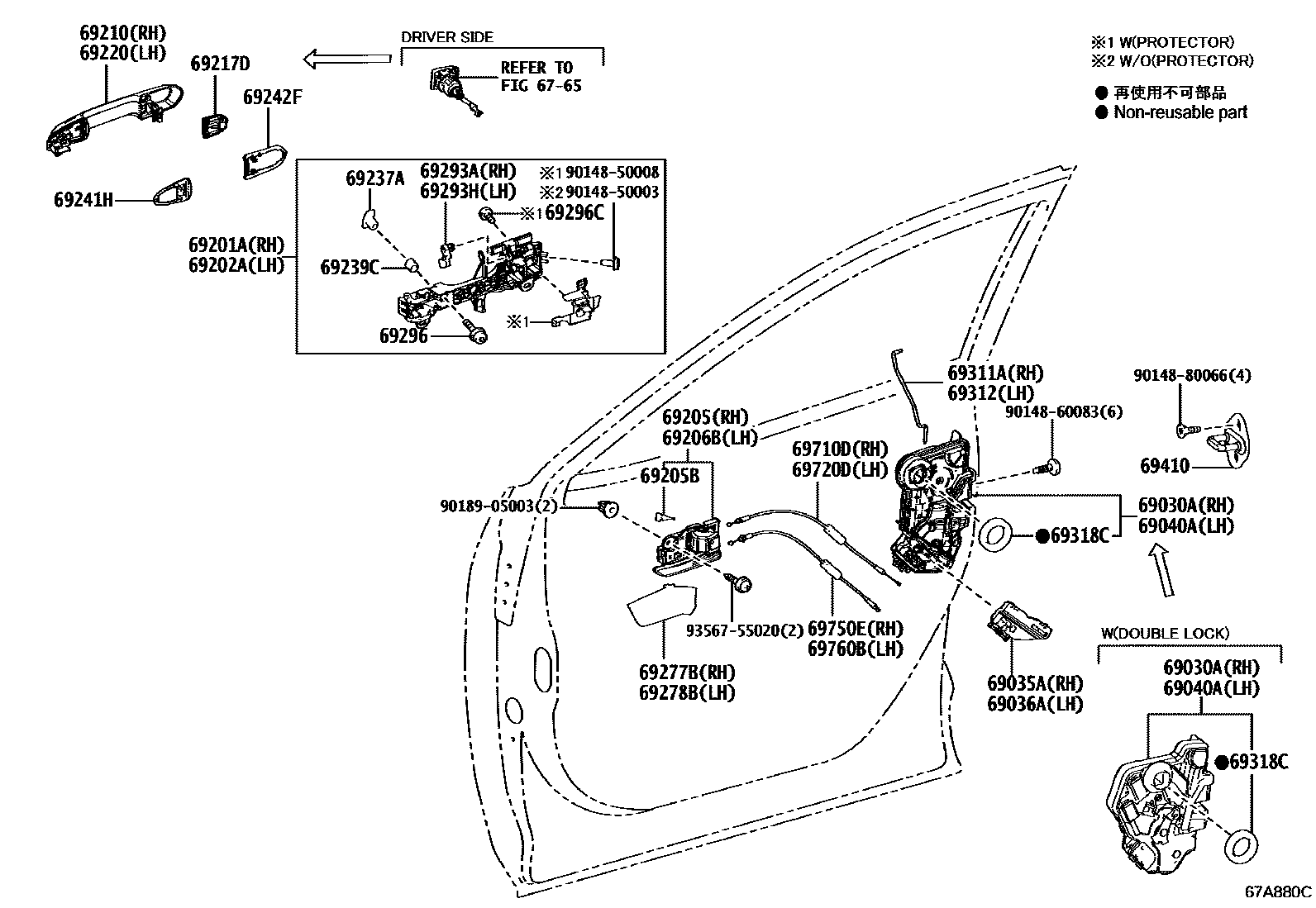

FRONT DOOR LOCK & HANDLE
6765
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
GRAY ME.,1G3
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,2RA ,8X8
DK. BLUE MC.,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D6 ,2QY
SILVER ME.,1D6
GRAY ME.,1G3
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
GRAY ME.,1G3
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6 ,2QY
SILVER ME.,1D6
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6 ,2QY
SILVER ME.,1D6
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D6 ,2QY
SILVER ME.,1D6
GRAY ME.,1G3
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 2,3U5
DK. BLUE MC.,2RA ,8X8
DK. BLUE MC.,8X8
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
GRAY ME.,1G3
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
9014850003
9014850008
9014860083
9014880066
9018905003
9356755020
37 parts on this diagram · 1 diagram in section
