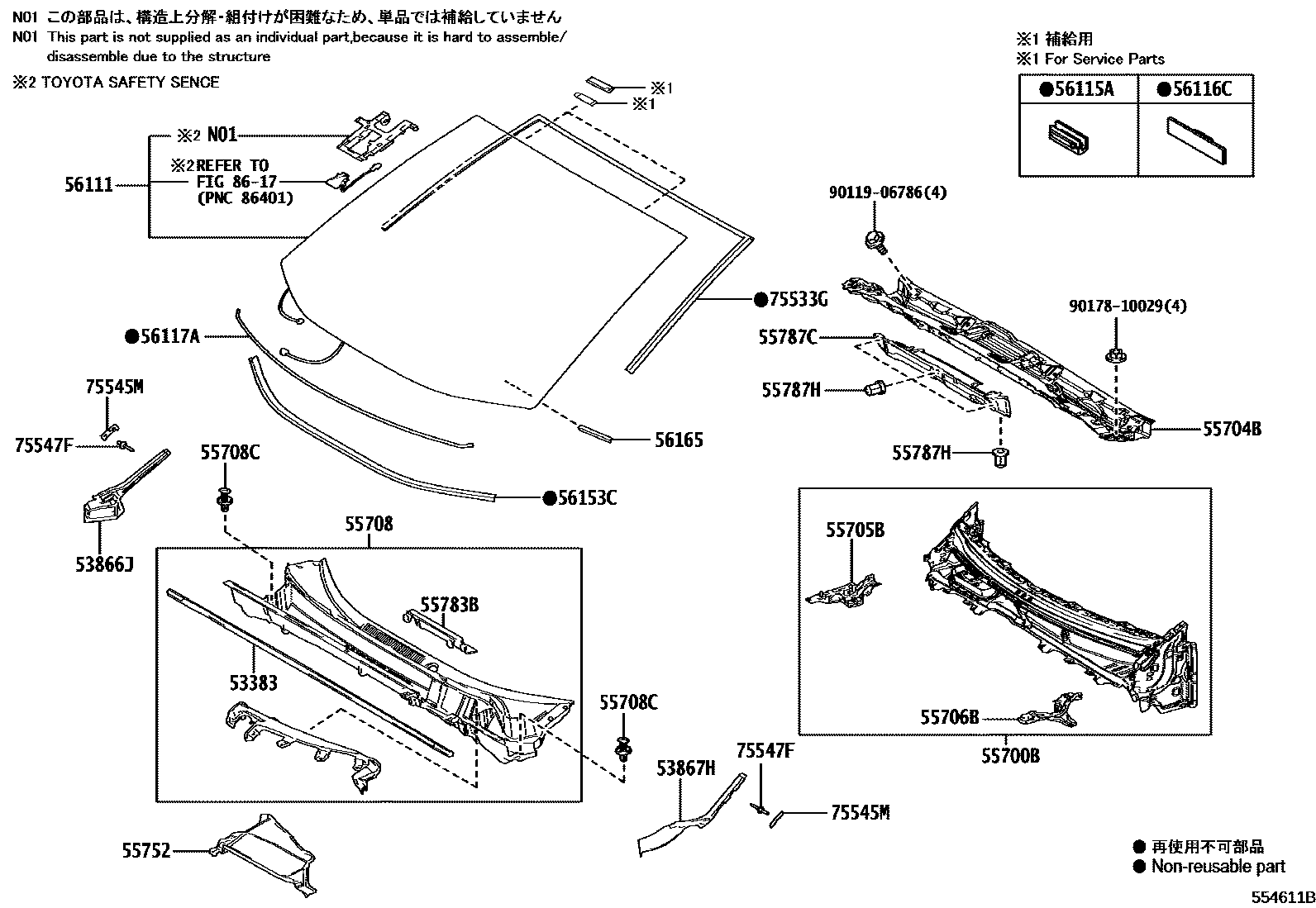

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752SHIELD, COWL VENTILATOR SPLASH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
BLACK
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1380,ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO & VOICE & CRUISE CONTROL & *SLC
*D,L=1380,COLD AREA SPEC-WITH
*D,L=1380,COLD AREA SPEC-WITH&HEAD-UP DISPLAY-WITH
*D,L=1380,COLD AREA SPEC-WITH & WITH(*EHL)
*D,L=1380,COLD AREA SPEC-WITH & WITH(*EHL)&HEAD-UP DISPLAY-WITH
*D,L=1380,HEAD-UP DISPLAY-WITH
*D,L=1380
*D,L=1380,ACTIVE SAFETY PACKAGE-WITHOUT&COLD AREA SPEC-WITH&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO & VOICE & CRUISE CONTROL
*D,L=1380,ACTIVE SAFETY PACKAGE-WITHOUT&COLD AREA SPEC-WITH&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO & VOICE & CRUISE CONTROL & *SLC
*D,L=1380,ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO & VOICE & CRUISE CONTROL
56153CMOULDING, FRONT WINDOW, INNER CENTER
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
8617
9011906786
9017810029
25 parts on this diagram · 2 diagrams in section
