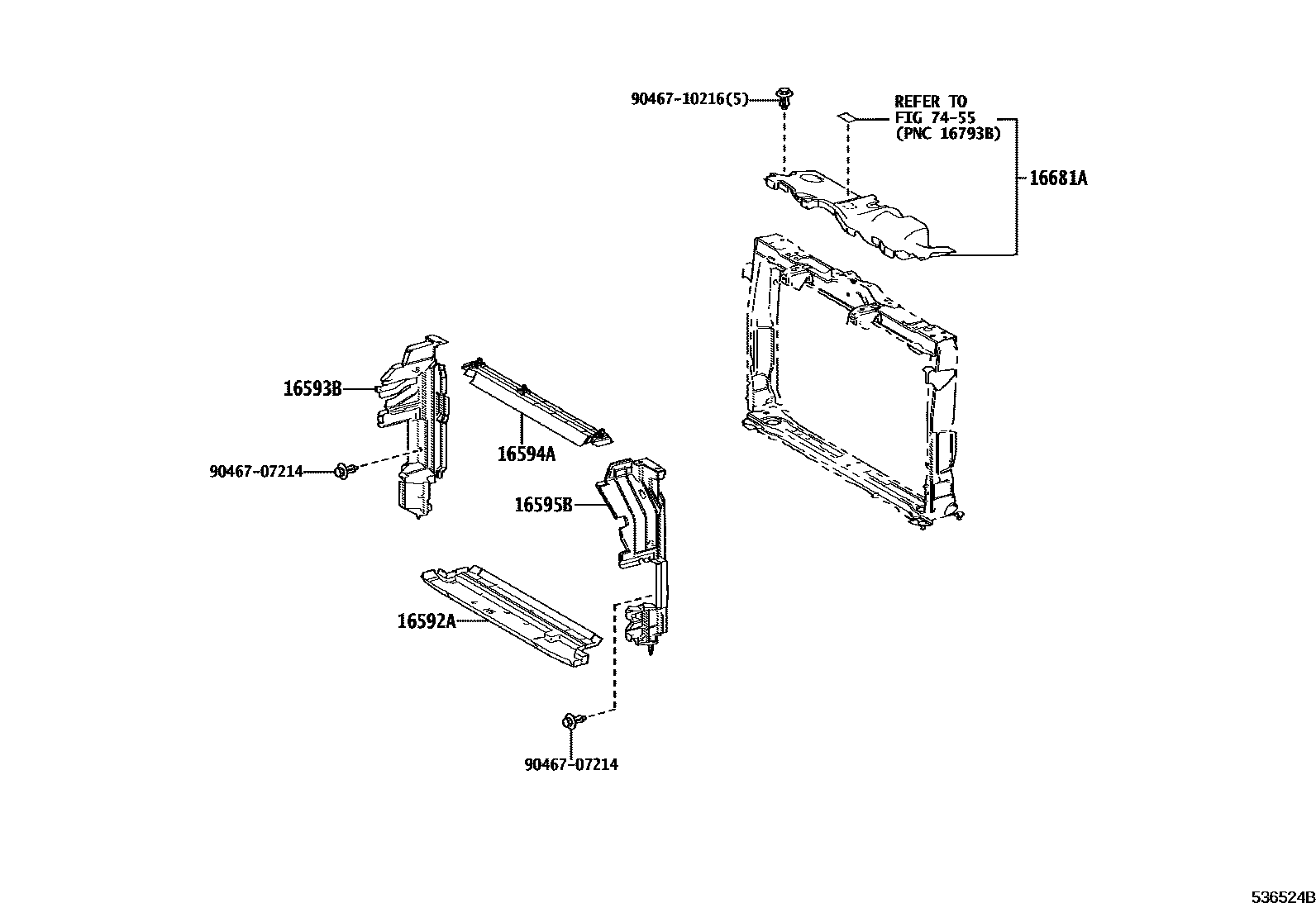

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25040iA25AFXS..AXAP54202006-202310

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25020iA25AFXS..AXAP54202006-202112

sub16593-25021

main16593-25021iA25AFXS..AXAP54202201-202310

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25AFXS..AXAP54202006-202501

main16594-25050iA25AFXS..AXAP54202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25020iA25AFXS..AXAP54202006-202112

sub16595-25021

main16595-25021iA25AFXS..AXAP54202201-202310

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25020iA25AFXS..AXAP54202006-202310

7455

9046707214

main90467-07214

9046710216

main90467-10216

8 parts on this diagram · 4 diagrams in section
