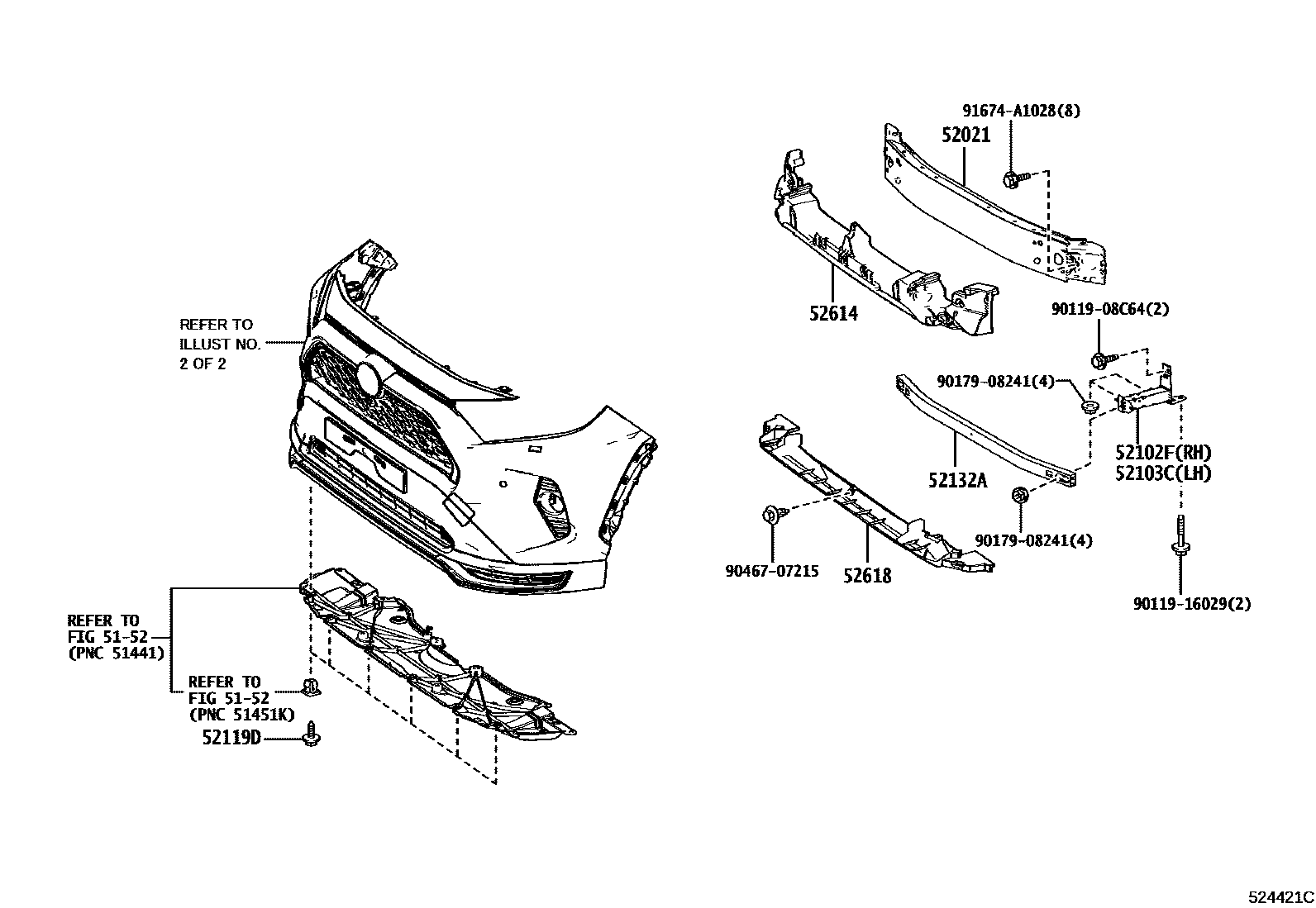

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42190iAXAP54202006-202310

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXAP54202006-202310

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXAP54202006-202310

52119DSCREW, NO.1

main90159-60477iAXAP54202006-202310

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXAP54202006-202310

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42140iAXAP54202006-202310

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42090iAXAP54202006-202310

9011908C64

main90119-08C64

9011916029

main90119-16029

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

13 parts on this diagram · 2 diagrams in section
