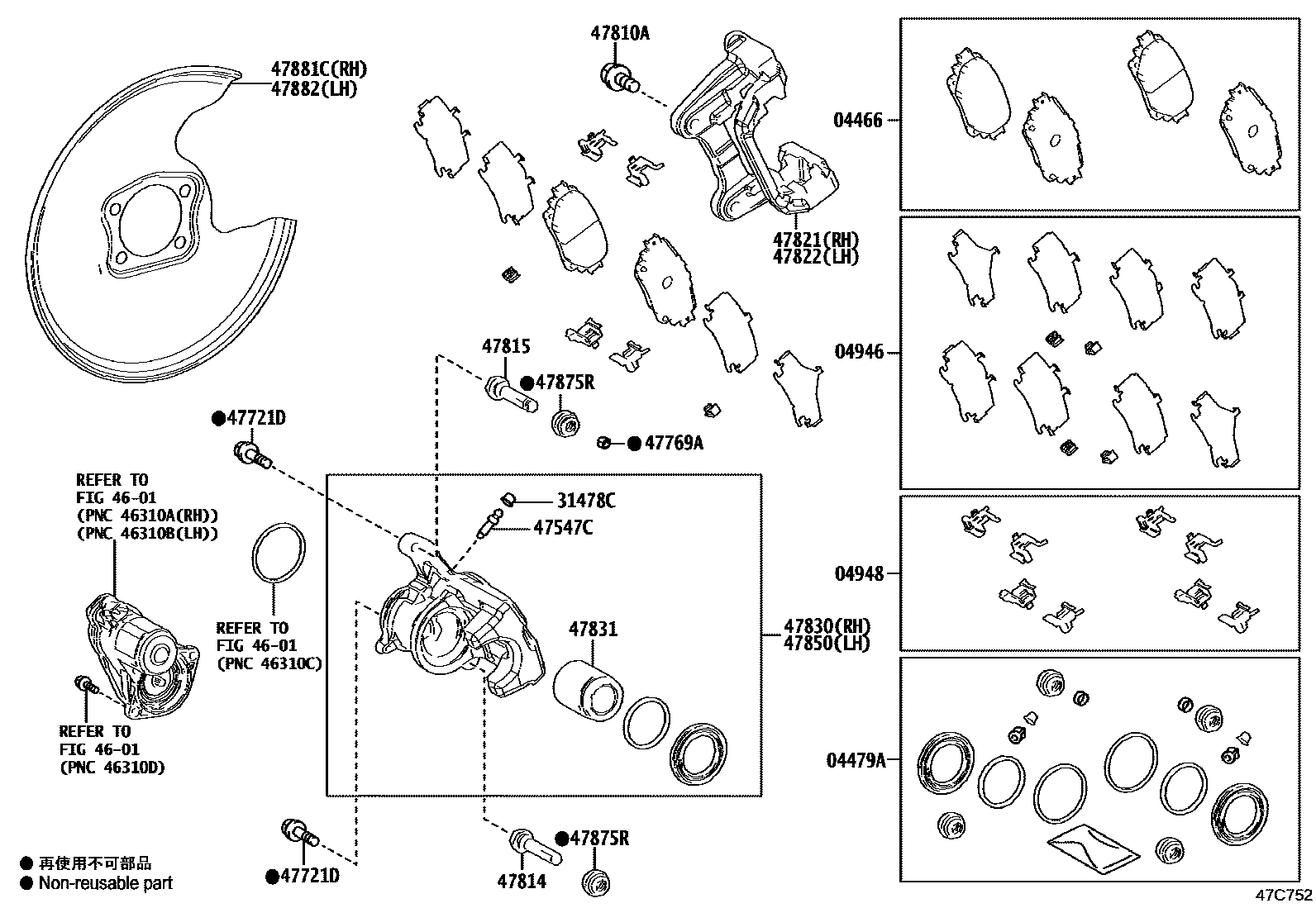

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAXAP54202312

MARK NBK D6363-FF N

main04466-F4020iAXAP54202006-202311

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iAXAP54202006-202310

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAXAP54202312

main04946-F4020iAXAP54202006-202311

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iAXAP54202006-202311

main04948-V2010iAXAP54202312

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAXAP54202006-202310

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXAP54202006-202310

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAXAP54202006-202310

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAXAP54202006-202310

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14212iAXAP54202006-202310

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAXAP54202006-202310

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAXAP54202006-202310

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42110iAXAP54202006-202310

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42100iAXAP54202006-202310

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42100iAXAP54202006-202310

47831PISTON, REAR DISC BRAKE

main47831-42100iAXAP54202006-202210

main47831-58040iAXAP54202210-202310

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42090iAXAP54202006-202310

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAXAP54202006-202310

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-42040iAXAP54202006-202310

47882COVER, DISC BRAKE DUST, REAR LH

main47882-42040iAXAP54202006-202310

20 parts on this diagram · 1 diagram in section
