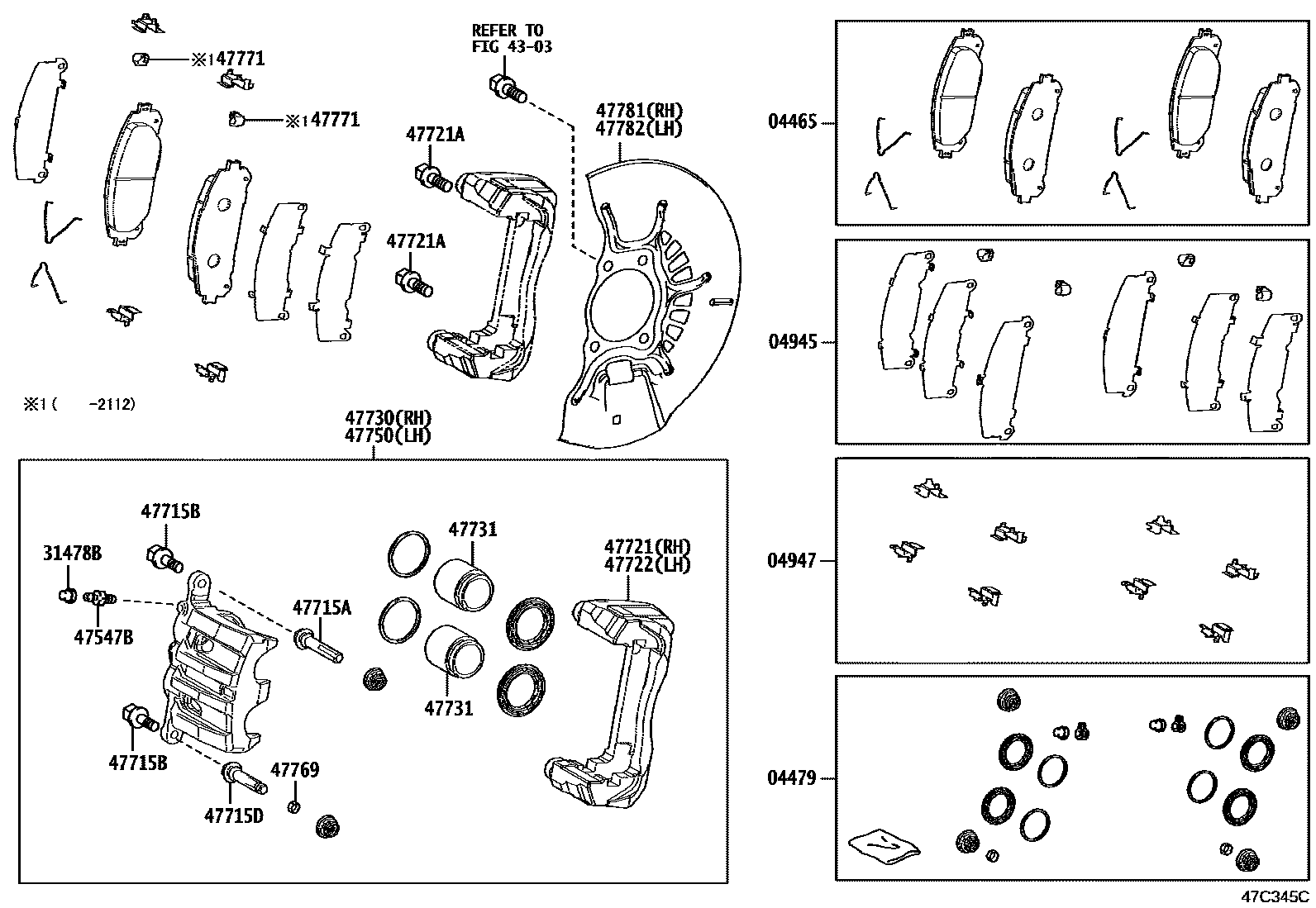

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48240iAXAP54202006-202112

MARK AKEBONO NS380H

main04465-78030iAXAP54202112-202310

MARK AKEBONO NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48210iAXAP54202006-202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48180iAXAP54202006-202112

main04945-48200iAXAP54¥1,460202112-202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48090iAXAP54¥1,670202006-202310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXAP54¥160202006-202310

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXAP54¥200202006-202310

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48200iAXAP54202006-202310

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA605iAXAP54¥100202006-202306

main90015-AA608iAXAP54¥100202306-202310

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48200iAXAP54202006-202310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48200iAXAP54202006-202310

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-12401iAXAP54¥190202006-202310

*12-1.25PX35.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48170iAXAP54202006-202310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48200iAXAP54202006-202310

47731PISTON, FRONT DISC BRAKE

main47731-48200iAXAP54¥1,260202006-202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48170iAXAP54202006-202310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0E070iAXAP54¥240202006-202310

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXAP54¥200202006-202112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAXAP54¥1,240202006-202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAXAP54¥1,240202006-202310

20 parts on this diagram · 1 diagram in section
