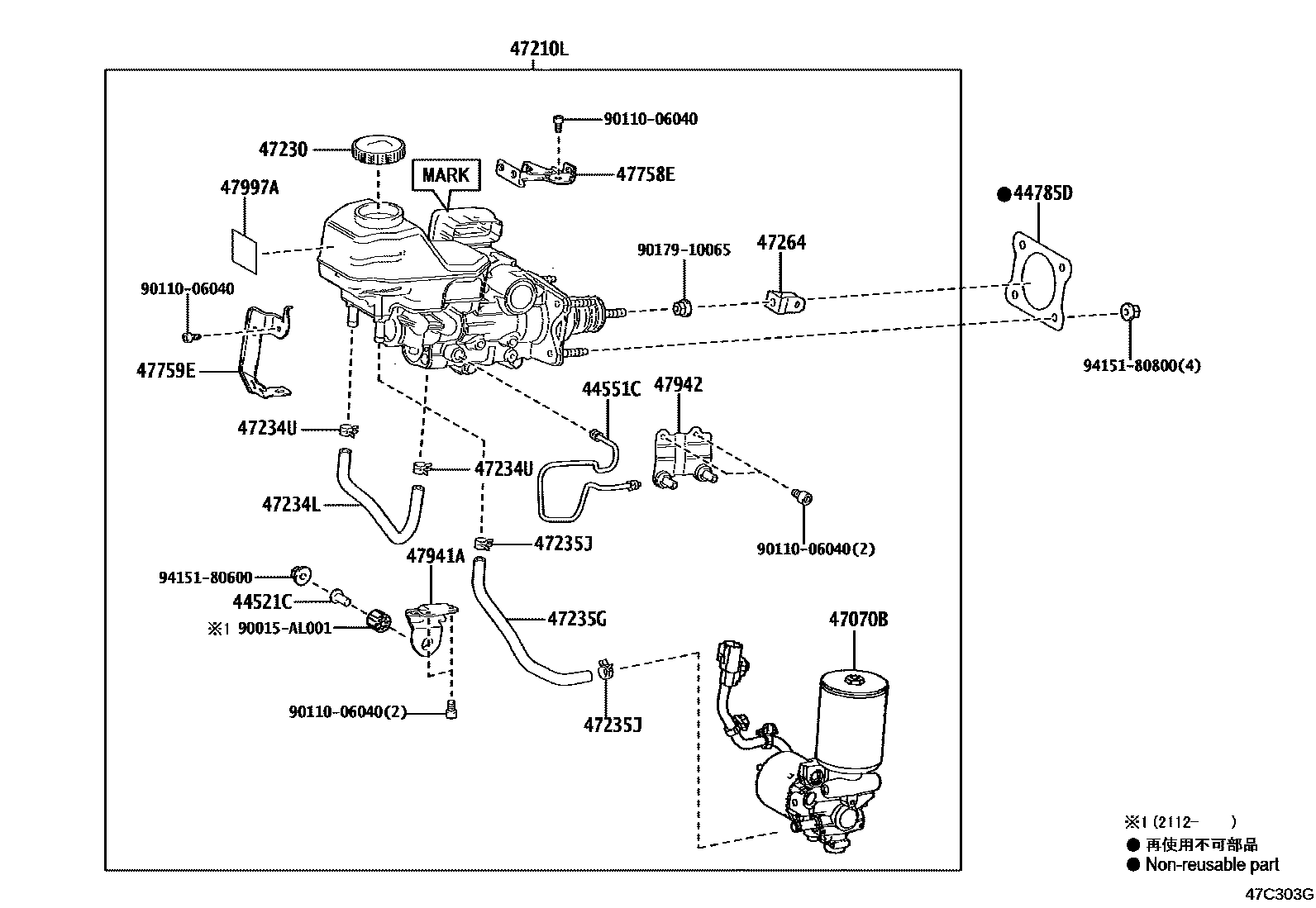

BRAKE MASTER CYLINDER
44521CCOLLAR, BRAKE ACTUATOR CASE
44551CTUBE, BRAKE ACTUATOR, NO.1
44785DGASKET, BRAKE MASTER CYLINDER
47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
*614,MARK47200-42F50
*614,MARK47200-42F51
*614
*614,MARK47200-42F60
*614
*614,MARK47200-42F61
*614,MARK47200-42G30
*614,MARK47200-42G31
*614,MARK47200-42G40
*614,MARK47200-42G41
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47234LHOSE, RESERVOIR, NO.1
47234UCLIP(FOR RESERVOIR HOSE NO.1)
47235GHOSE, RESERVOIR, NO.2
47235JCLIP(FOR RESERVOIR HOSE NO.2)
47264CLEVIS, MASTER CYLINDER PUSH ROD
47758EBRACKET, WIRE CLAMP, NO.1
47759EBRACKET, WIRE CLAMP, NO.2
47941ABRACKET, BRAKE POWER SUPPLY, NO.1
47942BRACKET, BRAKE POWER SUPPLY, NO.2
47997ALABEL, ACCUMULATOR CAUTION, NO.1
90015AL001
main90015-AL001
9011006040
main90110-06040
9017910065
main90179-10065
9415180600
main94151-80600
9415180800
main94151-80800
21 parts on this diagram · 2 diagrams in section
