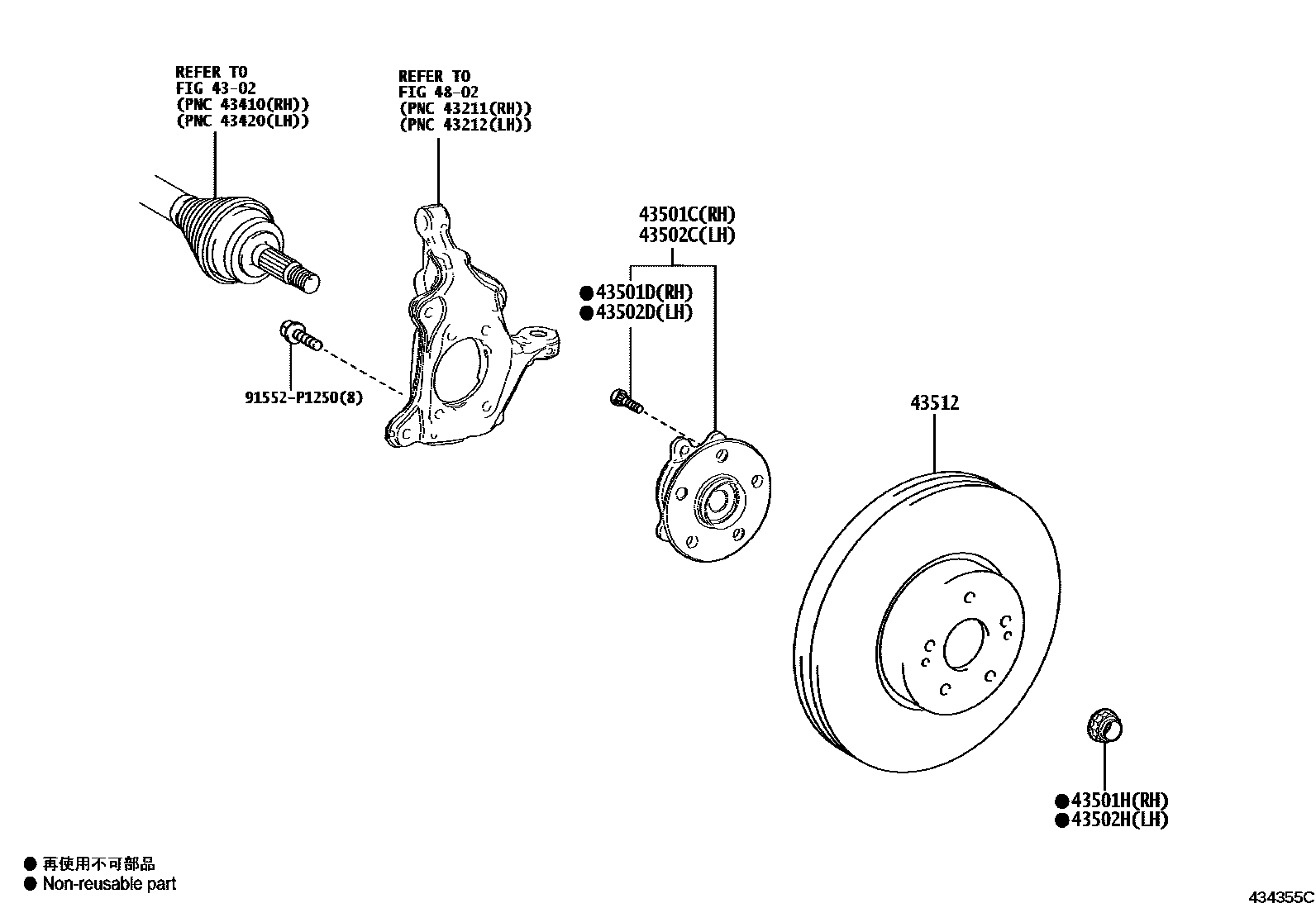

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42030iAXAP54202006-202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXAP54202006-202310

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXAP54202006-202310

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42030iAXAP54202006-202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXAP54202006-202310

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXAP54202006-202310

43512DISC, FRONT

main43512-0E070iAXAP54202006-202011

(L)

main43512-48150iAXAP54202008-202011

(J)

main43512-48150iAXAP54202011-202310

4802

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section
