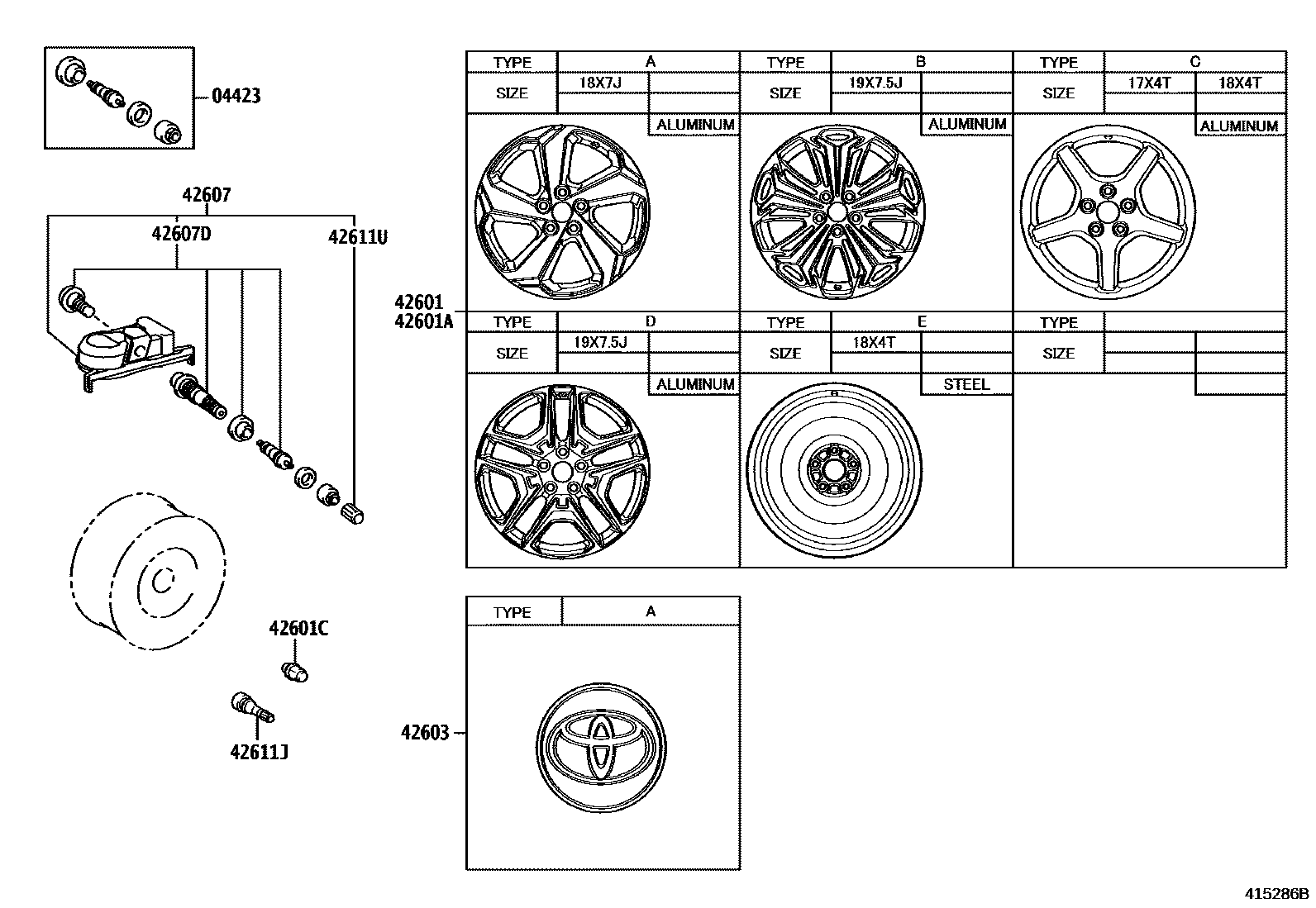

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X7J,#,TYPE A:REFER ILLUST.
19X7.5J,#,TYPE B:REFER ILLUST.
19X7.5J,#,GR SPORT,TYPE D:REFER ILLUST.
19X7.5J,#,TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMINUM,GR SPORT,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE C:REFER ILLUST.
18X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
GR SPORT&TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMINUM,GR SPORT
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
9 parts on this diagram · 1 diagram in section
