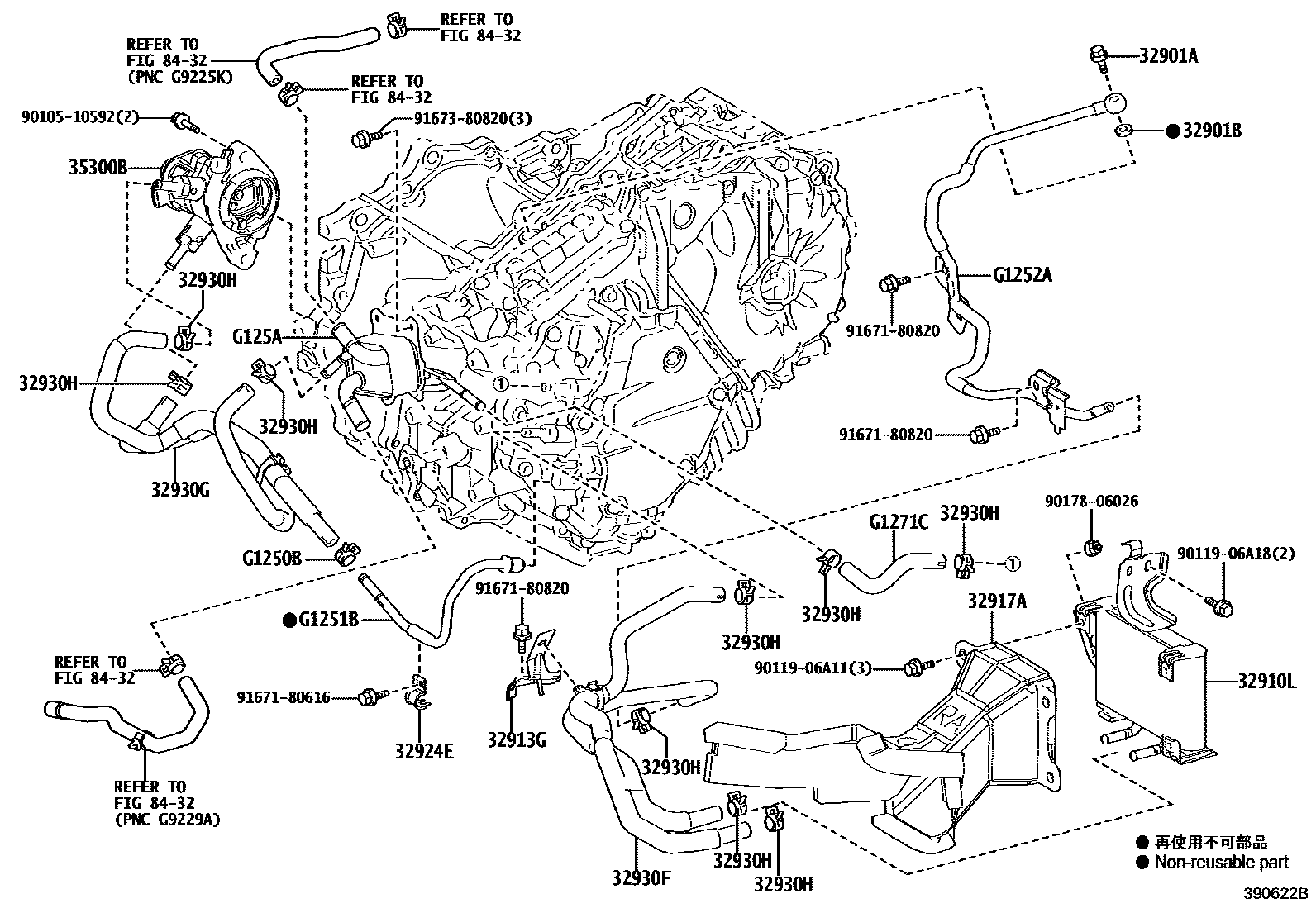

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXAP54202006-202310

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXAP54202006-202310

32910LCOOLER ASSY, OIL

main32910-42040iAXAP54202006-202310

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAXAP54202006-202310

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-42020iAXAP54202006-202310

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iAXAP54202006-202310

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-42060iAXAP54202006-202310

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-42070iAXAP54202006-202310

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAXAP54202006-202310

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070iAXAP54202006-202310

8432

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004iAXAP54202006-202310

G1251BPIPE, MOTOR COOLING, NO.1

mainG125142010iAXAP54202006-202310

G1252APIPE, MOTOR COOLING, NO.2

mainG125242010iAXAP54202006-202310

G125ACOOLER, MOTOR COOLING

mainG125A48020iAXAP54202006-202310

G1271CHOSE, MOTOR COOLING, NO.1

mainG127142010iAXAP54202006-202310

9010510592

main90105-10592

9011906A11

main90119-06A11

9011906A18

main90119-06A18

9017806026

main90178-06026

9167180616

main91671-80616

9167180820

main91671-80820

9167380820

main91673-80820

23 parts on this diagram · 1 diagram in section
