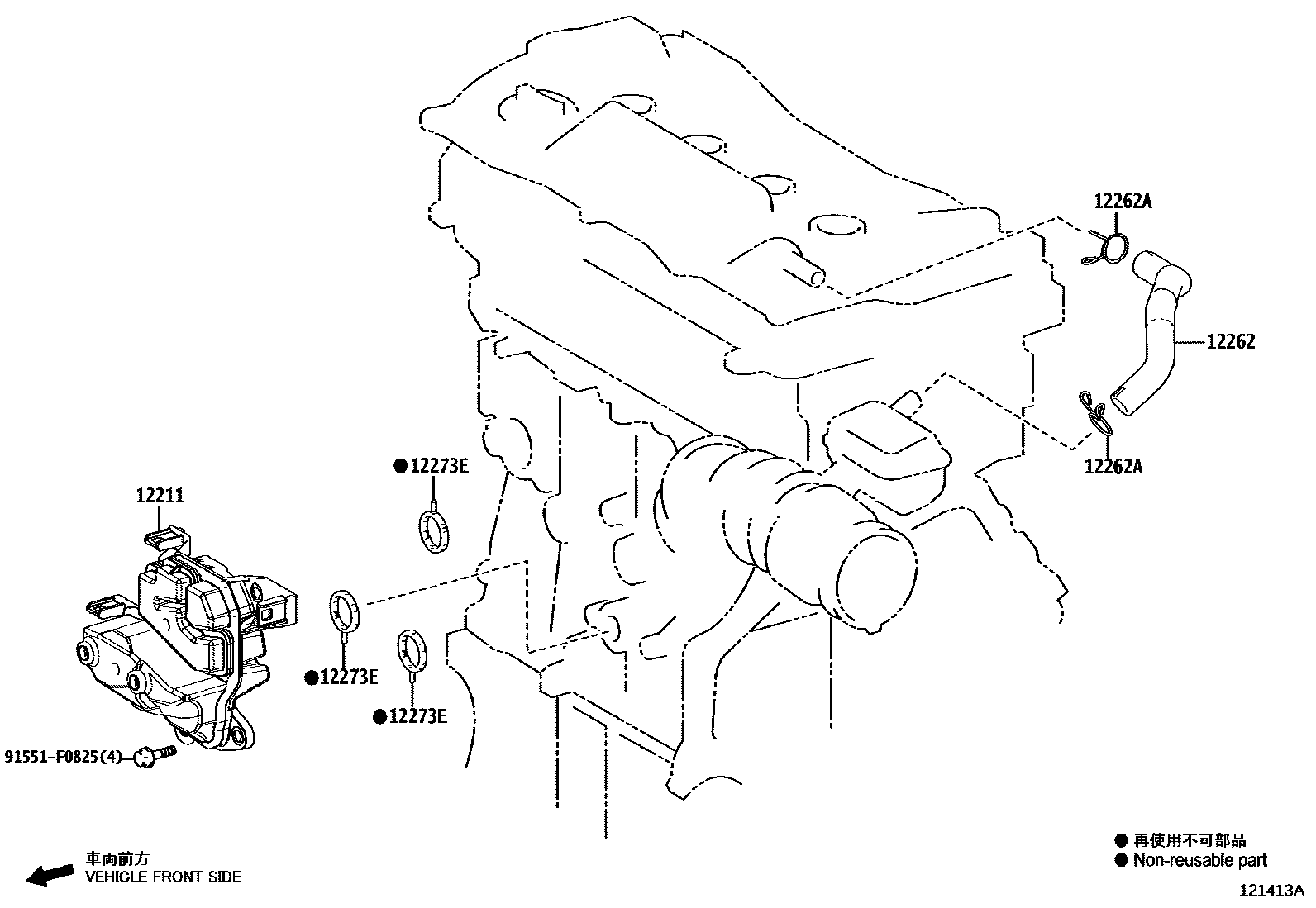

VENTILATION HOSE

12211CASE, VENTILATION, NO.1

main12211-25010iA25AFXS..AXAP54202006-202007

sub12211-25011

main12211-25011iA25AFXS..AXAP54202008-202301

12262HOSE, VENTILATION, NO.2

main12262-25080iA25AFXS..AXAP54202006-202310

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25AFXS..AXAP54202006-202310

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFXS..AXAP54202006-202301

91551F0825

main91551-F0825

5 parts on this diagram · 1 diagram in section
