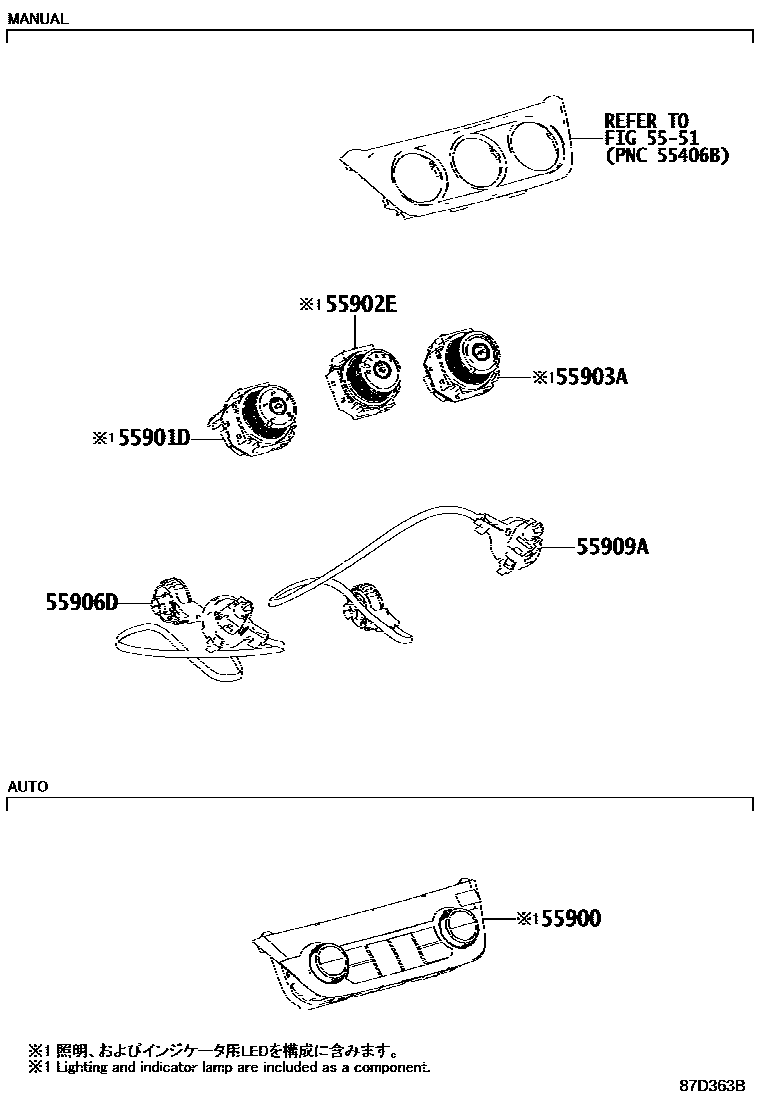

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

5551

55900CONTROL ASSY, AIR CONDITIONER

main55900-42390iALA49..RHD..G..DCR201212-201510

HONG KONG SPEC

main55900-42390iALA49..RHD..G..DCR201212-201510

SINGAPORE SPEC

main55900-42400iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM)201212-201510

BASIC PACKAGE

main55900-42410iALA4#,ZSA44..LHD..(G,M)201212-201510

FRENCH SPEC&BASIC PACKAGE

main55900-42410iALA4#,ZSA44..LHD..(G,M)201212-201510

BASIC PACKAGE

main55900-42440iZSA44..RHD..G201510-201810

BASIC PACKAGE

main55900-42440iAVA4#,WWA42,ZSA44..RHD..(G,M)201510-201810

BASIC PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT TYPE)

main55900-42450iWWA42,ZSA44..LHD..(G,M)..EUR201510-201810

FRENCH SPEC&BASIC PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT TYPE)

main55900-42450iALA49,ASA44,ZSA4#..JPP..(6FC,B)..G201510-201708

main55900-42450iZSA44..JPP..M..RUS;ASA44,AVA42..LHD..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M;AVA44,ZSA44..LHD..(G,M)..(HTWC,HTWVM)201510-201810

FRENCH SPEC&BASIC PACKAGE

main55900-42450iZSA44..JPP..M..RUS;ASA44,AVA42..LHD..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M;AVA44,ZSA44..LHD..(G,M)..(HTWC,HTWVM)201510-201810

BASIC PACKAGE

main55900-42460iALA49,ASA44,ZSA4#..RUP..G201610-201810

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-12250iALA49..X..DCR¥4,040201212-201510

UKURAINE SPEC

main55901-12250iALA49..X..DCR¥4,040201212-201510

*334

main55901-12250iALA49..X..DCR¥4,040201212-201510

NON-WVTA

main55901-42040iALA4#,ZSA44..X..(DCRE,DCRL,HTWVM)201212-201510

FRENCH SPEC&BASIC PACKAGE

main55901-42040iALA4#,ZSA44..X..(DCRE,DCRL,HTWVM)201212-201510

ENGLAND SPEC&BASIC PACKAGE

main55901-42040iALA49,ASA44,WWA42,ZSA4#..X201510-201909

AIR CONDITIONER-AUTO DUAL CONTROL

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-42160iALA4#,ZSA44..X201212-201510

FRENCH SPEC&BASIC PACKAGE

main55902-42160iALA4#,ZSA44..X201212-201510

BASIC PACKAGE

main55902-42160iALA49,ASA44,WWA42,ZSA4#..X201510-201909

AIR CONDITIONER-AUTO DUAL CONTROL

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-42080iASA44..X..EUR201708-201810

main55903-42090iZSA44..RHD..X201212-201607

main55903-42100iZSA44..LHD..X;ALA4#..X..(DCRE,DCRL)201212-201510

main55903-42100iASA44..X..RUS;ZSA44..LHD..X;ALA49,WWA42,ZSA42..X201510-201909

AIR CONDITIONER-AUTO DUAL CONTROL

main55903-42110iALA49..X..DCR¥3,550201212-201510

NON-WVTA

main55903-42110iZSA44..LHD..X¥3,550201212-201510

UKURAINE SPEC

main55903-42110iZSA44..LHD..X¥3,550201212-201510

*334

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iZSA44..LHD..(G,M)¥1,030201212-201510

BASIC PACKAGE

main55906-26060iALA4#,ZSA44..X¥1,030201212-201510

FRENCH SPEC&BASIC PACKAGE

main55906-26060iALA49,ASA44,WWA42,ZSA4#..X¥1,030201510-201909

AIR CONDITIONER-AUTO DUAL CONTROL

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iALA4#,ZSA44..X¥770201212-201510

FRENCH SPEC&BASIC PACKAGE

main55909-26080iALA4#,ZSA44..X¥770201212-201510

BASIC PACKAGE

main55909-26080iALA49,ASA44,WWA42,ZSA4#..X¥770201510-201909

AIR CONDITIONER-AUTO DUAL CONTROL

7 parts on this diagram · 5 diagrams in section
