LANE-KEEPING ASSIST

84978SWITCH, LANE-KEEPING ASSIST MAIN

main84978-42020iALA40,41,ZSA44..RHD..G201311-201411

HEADLAMP-4,PROJECTER & W(*AHB)

sub84978-42021

main84978-42020iALA40,41,ZSA44..RHD..G201311-201411

HEADLAMP-DISCHARGE & W(*AHB)

sub84978-42021

main84978-42021iZSA44..RHD..A..G201412-201510

HEADLAMP-4,PROJECTER & W(*AHB)

main84978-42021iALA40,41,ZSA44..RHD..6F..G201412-201510

HEADLAMP-DISCHARGE & W(*AHB)

8501

86466COVER, LANE DEPARTURE WARNING CAMERA, NO.1

main86466-42010iZSA44..RHD..A..G201212-201510

HEADLAMP-4,PROJECTER & W(*AHB)

main86466-42010iALA41..G;ALA41..LHD..M;ALA40,49,ZSA44..LHD..(G,M)201212-201510

HEADLAMP-DISCHARGE & W(*AHB)

86468CAMERA, LANE DEPARTURE WARNING

main86468-42010iALA4#,ZSA44..LHD..(G,M)201212-201311

HEADLAMP-4,PROJECTER & W(*AHB),MARK B

main86468-42010iALA4#,ZSA44..LHD..(G,M)201212-201311

HEADLAMP-DISCHARGE & W(*AHB),MARK B

main86468-42011iZSA44..RHD..A..G201311-201510

HEADLAMP-4,PROJECTER & W(*AHB)

main86468-42011iZSA44..LHD..A..G;ALA49..LHD..(G,M);ALA40,41,ZSA44..6F..G;ALA40,41,ZSA44..LHD..M201311-201510

HEADLAMP-DISCHARGE & W(*AHB)

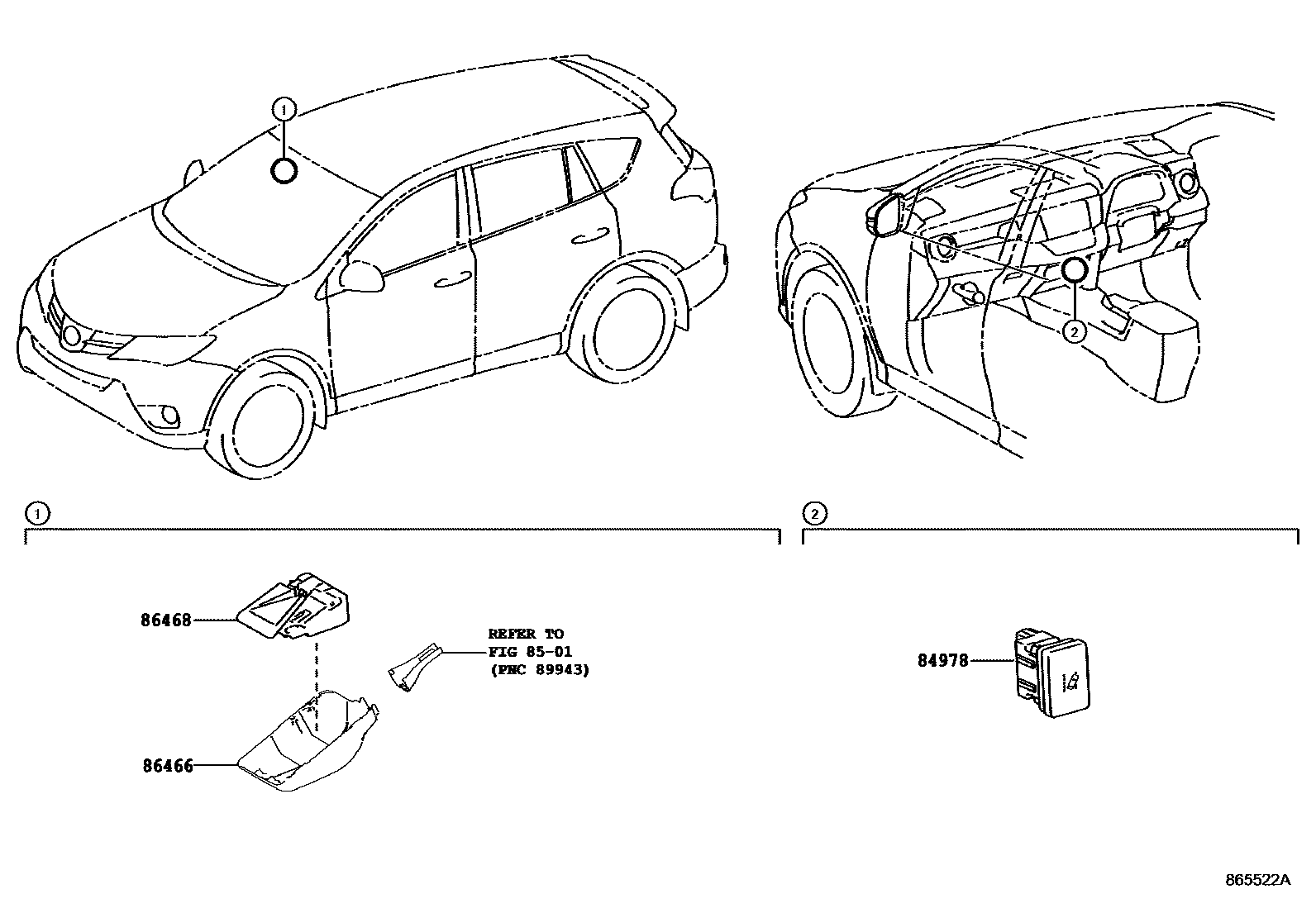

4 parts on this diagram · 1 diagram in section
