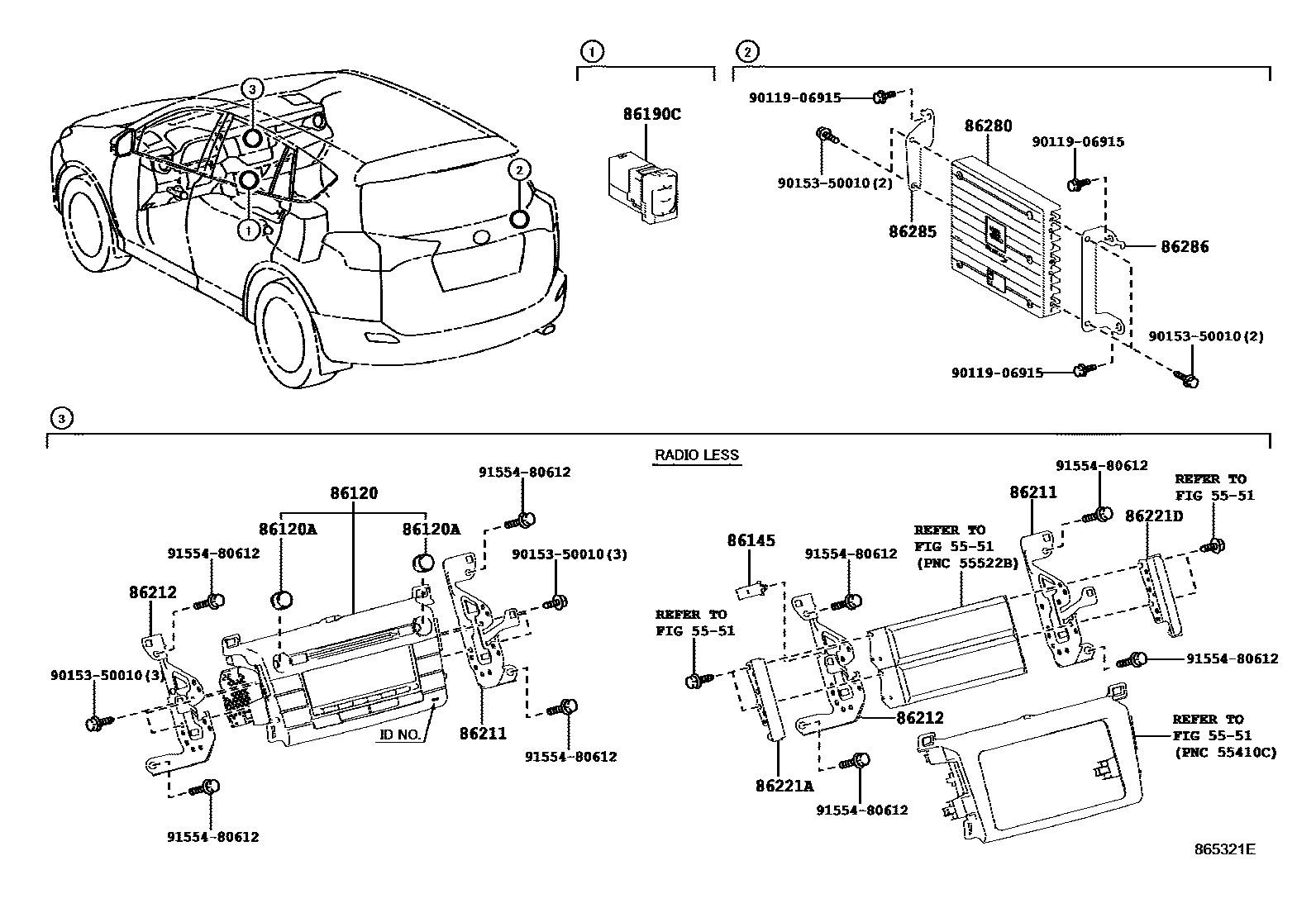

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

5551

86120RECEIVER ASSY, RADIO

main86120-42400iALA4#,ZSA44..LHD..X201212-201510

PANASONIC, ID=53880,AUDIO-4SPEAKER(AUDIO LESS)

main86120-42400iALA4#,ZSA44..LHD..X201212-201510

PANASONIC, ID=53880

main86120-42400iALA4#,ZSA44..LHD..X201212-201510

PANASONIC, ID=53880,AUDIO-W/O(AUDIO&SPEAKER)

main86120-42410iWWA42,ZSA44..LHD..X;ALA49,ASA44,ZSA42..X..RUS201510-201909

PANASONIC, ID=510124,AUDIO-4SPEAKER(AUDIO LESS)

main86120-42410iWWA42,ZSA44..LHD..X;ALA49,ASA44,ZSA42..X..RUS201510-201909

PANASONIC, ID=510124

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER)

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,AUDIO-4SPEAKER(AUDIO LESS)

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,AUDIO-6SPEAKER(AUDIO LESS)

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,AUSTRALIA SPEC&AUDIO-13MM JBL AVN

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,NEW ZEALAND SPEC&AUDIO-13MM JBL AVN

main86120-42460iALA4#,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882,IRELAND SPEC&AUDIO-W/O(AUDIO&SPEAKER)

main86120-42460iALA49..RHD..G..DCR;ALA49,ZSA44..RHD..X201212-201510

PANASONIC, ID=53882

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,EXCEPT FOR WVTA&AUDIO-4SPEAKER(AUDIO LESS)

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,UK,MALTA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,UK,MALTA SPEC&AUDIO-WITHOUT

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,IRELAND SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,AUDIO-4SPEAKER(AUDIO LESS)

main86120-42490iWWA42,ZSA44..RHD..X201510-201805

PANASONIC, ID=510125,AUDIO-WITHOUT

main86120-42500iASA44..X..EUR201708-201709

PIONEER, ID=P11219

sub86120-42501

main86120-42500iASA44..X..EUR201708-201709

PIONEER, ID=P11219,AUDIO-4SPEAKER(AUDIO LESS)

sub86120-42501

main86120-42501iASA44..X201709-201810

PIONEER,AUDIO-4SPEAKER(AUDIO LESS)

sub86120-42502

main86120-42501iASA44..X201709-201810

PIONEER

sub86120-42502

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23041iALA4#,ZSA44..X;ALA49..RHD..G..DCR201212-201510

main90010-23052iASA44..X..EUR201708-201810

AUDIO-4SPEAKER(AUDIO LESS)

86145CONNECTOR, ANTENNA MALE

main86145-52010

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42040iALA4#,ZSA44201212-201909

86211BRACKET, RADIO, NO.1

main86211-42080iAVA4#..EUR;WWA42,ZSA44..LHD..(G,M)..EUR201510-201810

AUDIO-WITHOUT

main86211-42080iWWA42..LHD..(G,M);ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810

AUDIO-6SPEAKER(AUDIO LESS)

main86211-42080iALA4#,ZSA44201212-201510

main86211-42080iZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR201510-201810

SPEED WARNING-WITHOUT

86212BRACKET, RADIO, NO.2

main86212-42080iALA4#,ZSA44201212-201510

main86212-42080iZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR201510-201810

SPEED WARNING-WITHOUT

main86212-42080iZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR201510-201810

AUDIO-6SPEAKER(AUDIO LESS)

main86212-42080iZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR201510-201810

AUDIO-WITHOUT

86221APANEL, RADIO RECEIVER

86221DPANEL, RADIO RECEIVER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-42030

main86280-42050

main86280-0WC70

86285BRACKET, AMPLIFIER, NO.1

main86285-42030

86286BRACKET, AMPLIFIER, NO.2

main86286-0R010

9011906915

main90119-06915

9015350010

main90153-50010

9155480612

main91554-80612

15 parts on this diagram · 3 diagrams in section
