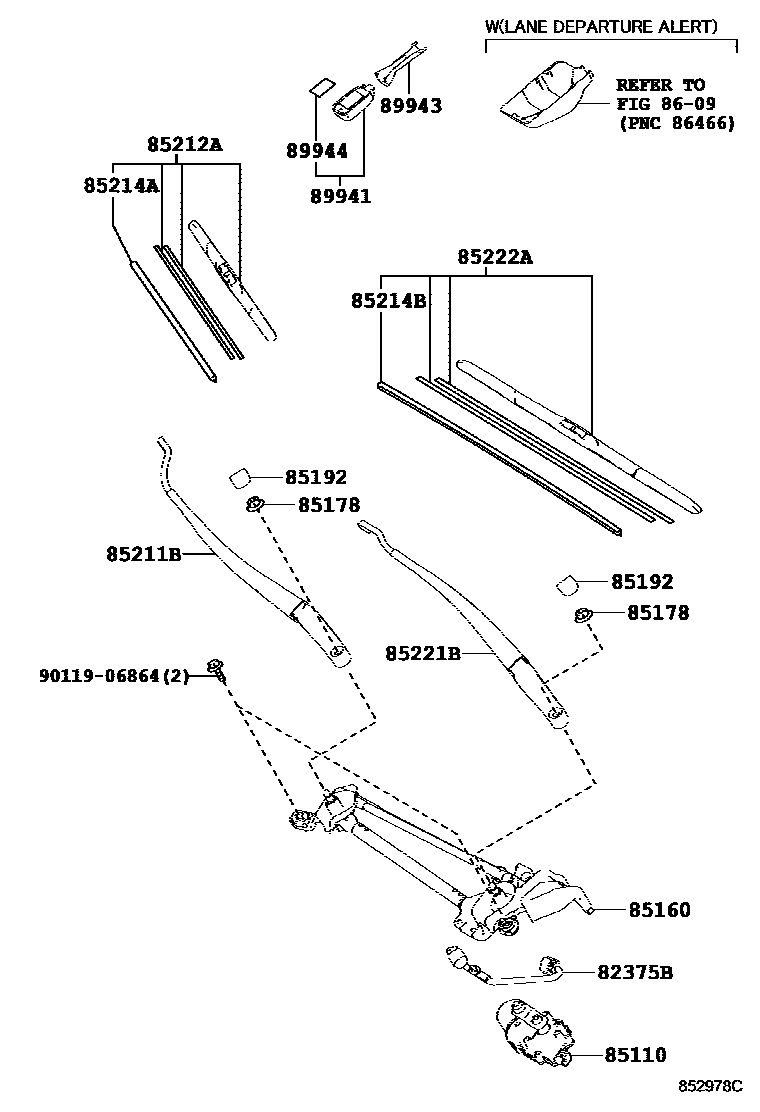

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

82375BWIRE, WIPER MOTOR

main82375-48020iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42190iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810

main85110-42210iAVA4#,WWA42,ZSA44..RHD201510-201810

main85110-42200iALA49..RHD..6FC..DCR201212-201402

NEW ZEALAND SPEC

main85110-42201iALA49..RHD..6FC..DCR201403-201510

NEW ZEALAND SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-42170iALA4#,ZSA44..LHD201212-201510

main85150-42190iAVA4#,WWA42,ZSA44..RHD201510-201810

main85150-42180iZSA44..RHD..6F..(G,X)201212-201311

NON-WVTA&NEW ZEALAND SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iALA4#,ZSA44201212-201510

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iALA4#,ZSA44201212-201510

85211BARM, FRONT WIPER, RH

main85211-42140iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810

main85211-42170iAVA4#,WWA42,ZSA44..RHD201510-201810

main85211-42160iALA49..RHD..6FC..DCR201212-201510

SOUTH AFRICA SPEC

85212ABLADE, FR WIPER, RH

main85212-42130iALA4#,ZSA44..LHD201212-201510

main85212-42150iALA4#,ZSA44..RHD201403-201510

main85212-52250iALA4#,ZSA44..RHD201212-201403

85214ARUBBER, WIPER, RH

main85214-28090iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810

main85214-52110iAVA4#,WWA42,ZSA44..RHD201510-201810

main85214-68020iALA4#,ZSA44..RHD201212-201308

85214BRUBBER, WIPER, LH

main85214-28090iAVA4#,WWA42,ZSA44..RHD201510-201810

main85214-52110iWWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

main85214-68020iALA4#,ZSA44..LHD201212-201308

85221BARM, FRONT WIPER, LH

main85221-42140iZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS;ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS201510-201810

main85221-42150iALA4#,ZSA44..LHD201212-201510

main85221-42160iALA4#,ZSA44..RHD201212-201510

85222ABLADE, FR WIPER, LH

main85222-42120iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

main85222-42130iAVA4#,WWA42,ZSA44..RHD201510-201810

main85222-42140iALA4#,ZSA44..LHD201403-201510

8609

89941SENSOR, RAIN

main89941-52010iALA4#,ZSA44..G,M201212-201510

BASIC PACKAGE

89943COVER, RAIN SENSOR

main89943-42020iZSA42..RUP..6F..M201510-201708

main89943-33050iALA41..G;ALA41..LHD..M;ALA40,49,ZSA44..LHD..(G,M)201212-201510

HEADLAMP-DISCHARGE & W(*AHB)

89944TAPE, RAIN SENSOR

main89944-42010iALA4#,ZSA44..G,M201212-201510

BASIC PACKAGE

9011906864

main90119-06864

16 parts on this diagram · 4 diagrams in section
