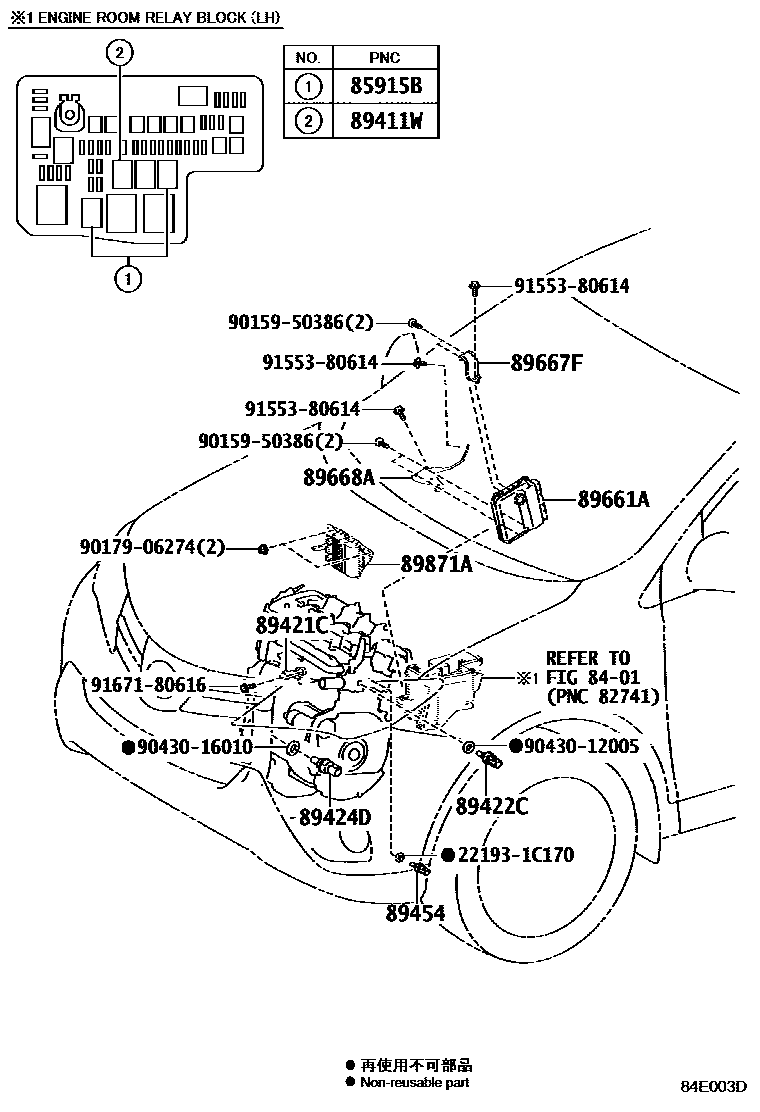

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

8401

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02027iALA4#201212-201810

89411WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201212-201810

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iALA4#201212-201810

main89421-WA010iWWA42201510-201805

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iALA4#201212-201810

main89422-WA010iWWA42201510-201805

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iALA4#201212-201810

89454SENSOR, FUEL TEMPERATURE

main89454-60020iALA49..RUP201212-201810

main89454-WA010iWWA42201510-201805

89661ACOMPUTER, ENGINE CONTROL

main89661-0R260iWWA42201510-201606

sub89661-0R590

main89661-0R500iWWA42..G,M201601-201606

PRE-COLLISION SYSTEM-WITH

sub89661-0R660

main89661-0R590iWWA42201607-201712

sub89661-0R591

main89661-0R591iWWA42201801-201805

BOSCH

main89661-0R660iWWA42..G,M201607-201712

PRE-COLLISION SYSTEM-WITH

sub89661-0R661

main89661-0R661iWWA42201801-201805

BOSCH,PRE-COLLISION SYSTEM-WITH

main89661-42J40iALA40201212-201510

main89661-42J50iALA49..DCRL201212-201510

main89661-42J60iALA49..DCRE201212-201510

main89661-42J70iALA49..6F..DCR201212-201306

sub89661-42J71

main89661-42J71iALA49..6F..DCR201307-201510

main89661-42M10iALA49..6FC..DCR201212-201306

sub89661-42M11

main89661-42M11iALA49..6FC..DCR201307-201510

main89661-42T30iALA49..6F..DCR201212-201306

EXHAUST EMISSION CONTROL-EUROPE EURO4,DIESEL,W/OBD

sub89661-42T31

main89661-42T31iALA49..6F..DCR201307-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,DIESEL,W/OBD

main89661-42U20iALA41201311-201510

main89661-42X10iALA49..JPP..DCRL201510-201810

main89661-42X30iALA49..RUP..DCRE;ALA49..(G,M)..DCRE201510-201810

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42070iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201212-201810

main89667-42100iWWA42201510-201805

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42070iALA49..RUP;ALA49..(G,M)..DCRE201212-201810

main89668-42090iWWA42201510-201805

89871ADRIVER, INJECTOR

main89870-42070iALA49..RUP;ALA49..(G,M)..DCRE201212-201810

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9043016010

main90430-16010

9155380614

main91553-80614

9167180616

main91671-80616

18 parts on this diagram · 3 diagrams in section
