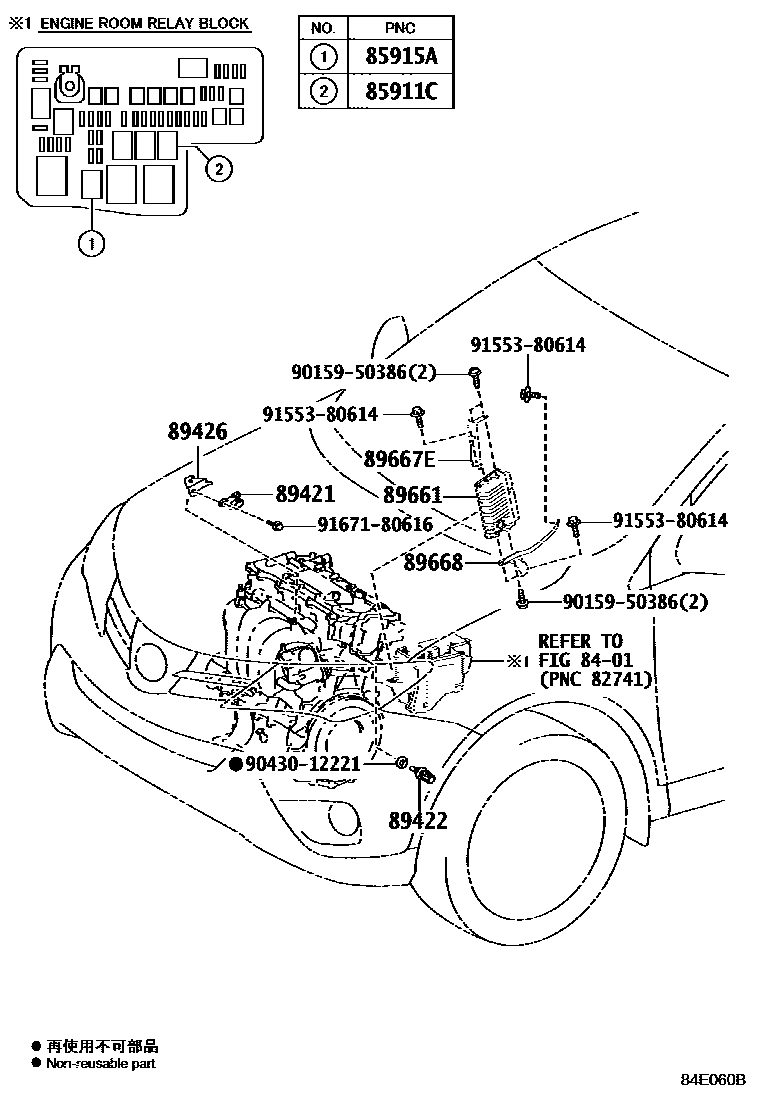

ELECTRONIC FUEL INJECTION SYSTEM
8401
85911CRELAY, EFI 2
main90987-02027iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ASA44,AVA44..JPP..(G,M)201212-201810
85915ARELAY, MAIN
main90987-02027iZSA44..RHD..X;ASA44,ZSA4#..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89426BRACKET, VACUUM SENSOR
89661COMPUTER, ENGINE CONTROL
UKRAINE SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO6 GASOLINE)
EXCEPT FOR WVTA&EXHAUST EMISSION CONTROL-LESS(OBD EUROPE EURO5 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO4 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO4 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO4 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO4 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
ECO PACKAGE-WITHOUT
sub89661-42X81
sub89661-42Y11
MACEDONIA SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO6 GASOLINE)
EXCEPT FOR WVTA&HONG KONG,MACAO SPEC
BOSNIA,HERZEGOVINA SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO6 GASOLINE)
BOSNIA,HERZEGOVINA SPEC
EXCEPT FOR WVTA&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
MACEDONIA SPEC
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
EXCEPT FOR WVTA
UKRAINE SPEC
BOSNIA,HERZEGOVINA SPEC
MACEDONIA SPEC
BOSNIA,HERZEGOVINA SPEC
EXCEPT FOR WVTA
MACEDONIA SPEC
UKRAINE SPEC
DENSO
DENSO
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015950386
main90159-50386
9043012221
main90430-12221
9155380614
main91553-80614
9167180616
main91671-80616
13 parts on this diagram · 4 diagrams in section
