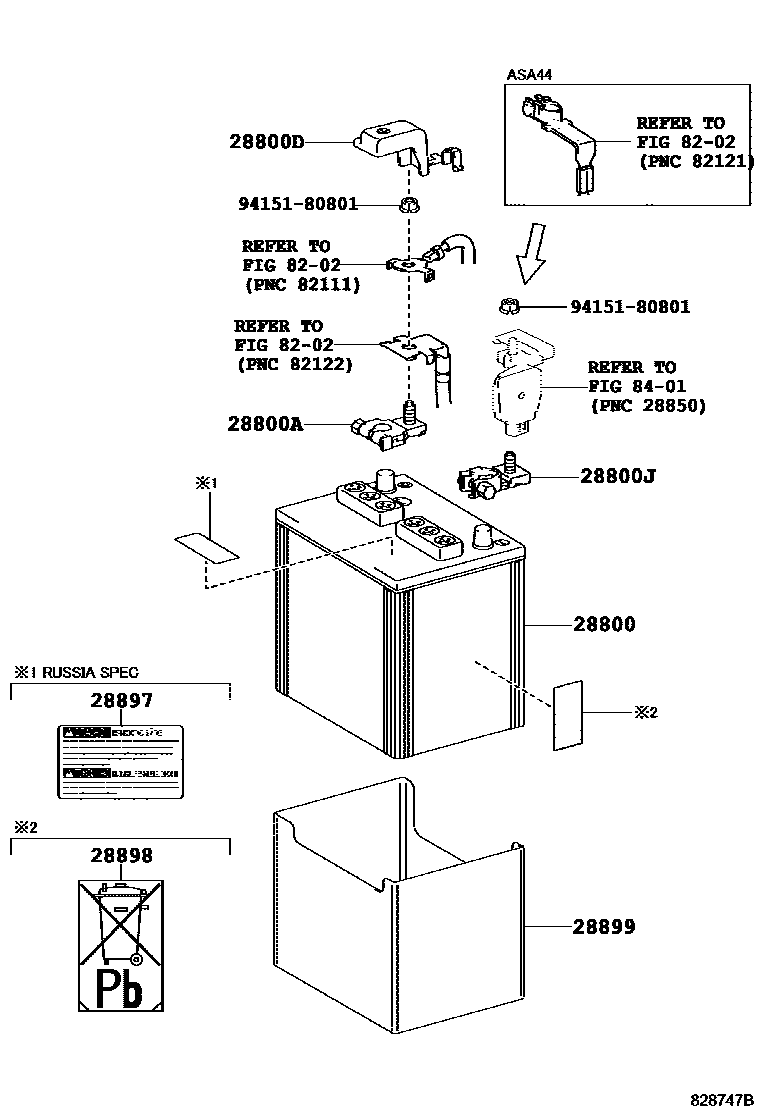

BATTERY & BATTERY CABLE

0001 1 0004 1 0006 1 0007 112V BATTERY(S46B24R) 0008 112V BATTERY(S55D23R) 0009 1HV BATTERY 0010 1HV BATTERY 0011 1HV BATTERY

28800BATTERY

main28800-21171i2ARFXE..AVA4#201510-201810

S46B24R

sub28800-21172

main28800-26141i2AD#..ALA49..RUP;2ADFTV..ALA49..M201608-201810

115D31L

sub28800-26142

main28800-26150i1ADFTV..ALA40201212-201805

95D31L

sub28800-36151

main28800-26902i2AD#..ALA49201212-201608

115D31L

main28800-36071i2ARFE..ASA44..JPP..(G,M)..RUS201510-201810

80D23L

main28800-42041i3ZRFAE..ZSA44..A201212-201510

55D23L,YUASA

sub28800-31260

main28800-42062i3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)201212-201810

55D23L,FURUKAWA

sub28800-42063

main28800-47120i3ZRFAE..ZSA44..A201504-201810

Q-85,GS YUASA

sub28800-47121

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2WW..WWA42201510-201805

main90982-05061i2ADFTV..ALA49..G,M;2ARFE..ASA44..JPP..X..RUS;2AD#,2ARFE..ALA49,ASA44..RUP201212-201510

main90982-05061i2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M)201510-201810

ANTI-THEFT SYSTEM-W/(IMMOBI&D-LOCK&ALM)&PITCH&GLASS SENS)

main90982-05061i2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M)201510-201810

ANTI-THEFT SYSTEM-WITH(IMMOBI&D-LOCK&ALARM&GLASS SENSOR)

main90982-05063i2ARFXE..AVA4#201510-201810

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2AD#..ALA49..RUP;2ADFTV..ALA49..M201609-201810

main82821-42070i3ZRFE..ZSA4#..RUP;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)201212-201810

main82821-48020i2ADFHV..ALA49;2ADFTV..ALA49..M,X201212-201611

main82821-53090i2ARFXE..AVA4#201510-201810

28800JTERMINAL, BATTERY NEGATIVE

main82675-42120i2WW..WWA42201212-201805

main90982-06059i3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)201510-201810

main90982-06070i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201212-201810

28897PLATE, BATTERY CAUTION

main28897-31040i2AD#,2ARFE,3ZRFE..ALA49,ASA44,ZSA4#..RUP201610

28898PLATE, BATTERY

main28898-46020i1ADFTV,2AD#,3ZRFAE..ALA41,49,ZSA44..6F,6FC201212-201610

main28898-46020i2ARFXE..AVA4#..EUR201510-201810

PRE-COLLISION SYSTEM-WITH

28899INSULATOR, BATTERY

main28899-26060i1ADFTV,2AD#..ALA4#201212-201810

main28899-26110i2WW..WWA42201510-201805

main28899-36020i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main28899-36090i2ARFXE..AVA4#201510-201810

8202

8401

9415180801

main94151-80801

10 parts on this diagram · 8 diagrams in section
