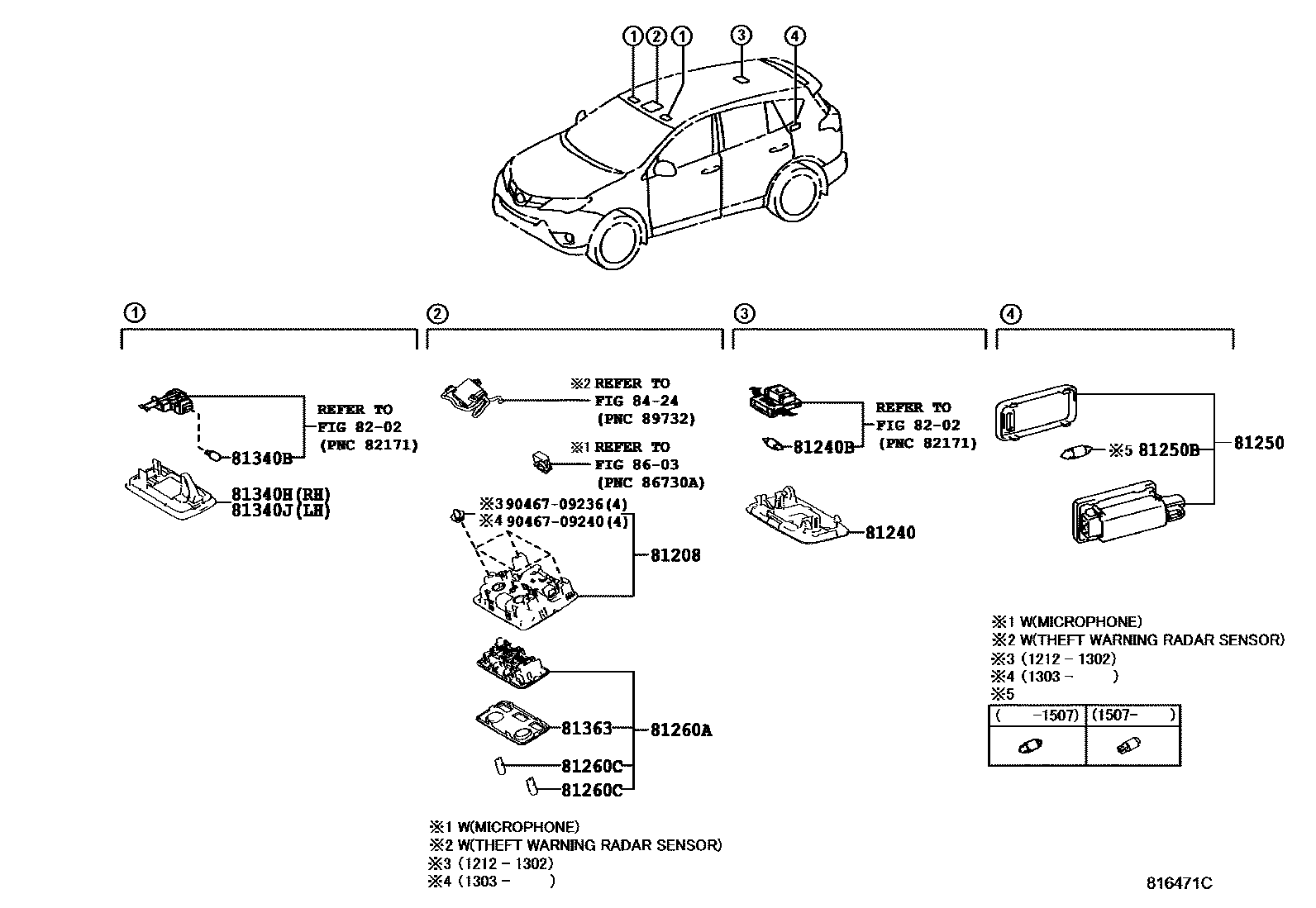

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81208LAMP SUB-ASSY, MAP

main81208-42020-B0iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201510

LT.GRAY,TRIM1#,2#,3#,4#

main81208-42020-B0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201510

LT.GRAY,TRIM2#

main81208-42180-B0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M201510-201810

LT.GRAY,TRIM10,20,30,40

sub81208-42181

main81208-42180-B0iALA49,ASA44,WWA42,ZSA4#..JPP..X201510-201810

LT.GRAY,TRIM20

sub81208-42181

main81208-42180-B0iALA49,ASA44,WWA42,ZSA4#..JPP..X201510-201810

LT.GRAY,TRIM2#

sub81208-42181

main81208-42180-B0iALA49,ZSA4#..6F..G..RUS201510-201607

LT.GRAY,TRIM1#,2#,3#,4#

sub81208-42181

main81208-42180-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M201510-201810

BLACK,TRIM20

sub81208-42181

main81208-42180-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M201510-201810

BLACK,TRIM10,20,30,40

sub81208-42181

main81208-42230-B0iALA49,ASA44,ZSA4#..RUP..G201610-201901

LT.GRAY,TRIM10,20,30,40

sub81208-42231

main81208-42230-B0iALA49,ASA44,ZSA4#..RUP..G201610-201901

LT.GRAY,TRIM20

sub81208-42231

main81208-42230-B0iALA49,ASA44,ZSA4#..RUP..G201610-201901

LT.GRAY,TRIM2#

sub81208-42231

main81208-42230-C0iALA49,ASA44,ZSA4#..RUP..G201610-201901

BLACK,TRIM10,20,30,40

sub81208-42231

main81208-42230-C0iALA49,ASA44,ZSA4#..RUP..G201610-201901

BLACK,TRIM20

sub81208-42231

main81208-42231-B0iALA49,ASA44,ZSA4#..RUP..G201902

LT.GRAY,TRIM2#

main81208-42231-B0iALA49,ASA44,ZSA4#..RUP..G201902

LT.GRAY,TRIM10,20,30,40

main81208-42231-B0iALA49,ASA44,ZSA4#..RUP..G201902

LT.GRAY,TRIM20

main81208-42231-C0iALA49,ASA44,ZSA4#..RUP..G201902

BLACK,TRIM20

main81208-42231-C0iALA49,ASA44,ZSA4#..RUP..G201902

BLACK,TRIM10,20,30,40

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201810

LT.GRAY,TRIM1#,2#,3#,4#

sub81240-35020

sub81240-42020

main81240-35020-B0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201510-201810

LT.GRAY,TRIM2#,3#

sub81240-35020

sub81240-42020

main81240-35020-B0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201212-201810

LT.GRAY,TRIM2#

sub81240-35020

sub81240-42020

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iALA4#,ZSA44201212-201503

main81330-58010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201504-201810

81250BBULB, ROOM LAMP, NO.2

main99132-12050iALA4#,ZSA44201504-201810

12V 5W

main99132-13050iALA4#,ZSA44201212-201504

12V 5W

81260ALAMP ASSY, MAP

main81260-52120-B0iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201510

LT.GRAY,TRIM1#,2#,3#,4#

main81260-52120-B0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201510

LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main99132-12050iALA4#,ZSA44201212-201810

12V 5W

81340BBULB (FOR VANITY LAMP)

main90981-11062iALA4#,ZSA44201212-201810

12V 8W

81340HLAMP ASSY, VANITY, RH

main81340-30110iALA4#,ZSA44201212-201810

81340JLAMP ASSY, VANITY, LH

main81340-30110iALA4#,ZSA44201212-201810

81363LENS, ROOM LAMP, OUTER

main81363-52010iALA4#,ZSA44201212-201510

8202

8424

8603

9046709236

main90467-09236

9046709240

main90467-09240

16 parts on this diagram · 4 diagrams in section
