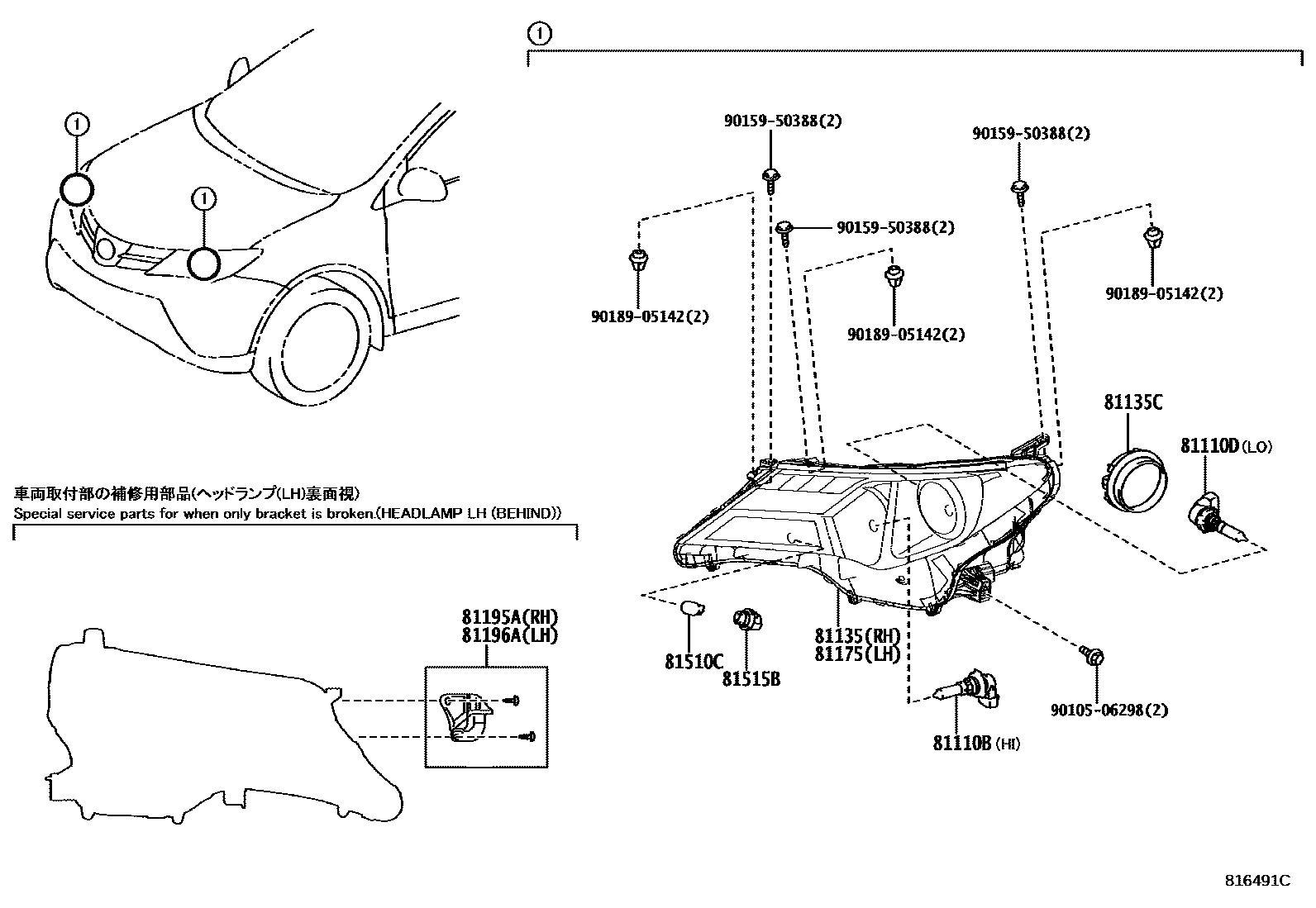

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1LED HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13092iALA4#,ZSA44201212-201510

12V 60W,HALOGEN

main90981-13102iZSA42..RUP..6F..M;ASA44,ZSA44..RUP..(6F,6FC)..X201510-201810

12V 55W

main90981-13102iASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTW201510-201810

12V 55W,UK,MALTA SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

main90981-13102iASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTW201510-201810

12V 55W,FRENCH SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13092iALA4#,ZSA44201212-201510

12V 60W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-42540iALA4#,ZSA44..LHD201212-201305

sub81130-42541

main81130-42541iALA4#,ZSA44..LHD201305-201308

sub81130-42542

main81130-42542iALA4#,ZSA44..LHD201308-201510

main81130-42560iALA4#,ZSA44..RHD201212-201305

sub81130-42561

main81130-42561iALA4#,ZSA44..RHD201305-201308

sub81130-42562

main81130-42562iALA4#,ZSA44..RHD201308-201510

main81130-42650iZSA42..RUP..X;WWA42..LHD..(M,X);ALA49..RUP..(M,X);ZSA44..RUP..6F..M;ZSA44..RUP..B..(M,X);ALA49,ZSA42..JPP..6F..M;ASA44,ZSA42..RUP..(6FC,B)..M;ASA44,ZSA44..JPP..(6F,201510-201707

main81130-42650iASA44..X..EUR;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM)201510-201810

FRENCH SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

main81130-42660iWWA42,ZSA44..RHD..G201510-201810

UK,MALTA SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

main81145-42680iAVA44..LHD;AVA42..LHD..EUR;ZSA44..LHD..G..EUR;ALA49,ASA44,ZSA4#..JPP..(6FC,B)..G201510-201810

HEAD LAMP-LED

main81145-42690iWWA42,ZSA44..RHD..M201510-201810

HEAD LAMP-LED

81135CCOVER, HEADLAMP BACK, NO.1

main81135-42520iALA4#,ZSA44201212-201510

81175UNIT ASSY, HEADLAMP, LH

main81170-42540iALA4#,ZSA44..LHD201212-201305

sub81170-42541

main81170-42541iALA4#,ZSA44..LHD201305-201308

sub81170-42542

main81170-42542iALA4#,ZSA44..LHD201308-201510

main81170-42560iALA4#,ZSA44..RHD201212-201305

sub81170-42561

main81170-42561iALA4#,ZSA44..RHD201305-201308

sub81170-42562

main81170-42562iALA4#,ZSA44..RHD201308-201510

main81170-42650iASA44..X..EUR;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM)201510-201810

FRENCH SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

main81170-42650iZSA42..RUP..X;WWA42..LHD..(M,X);ALA49..RUP..(M,X);ZSA44..RUP..6F..M;ZSA44..RUP..B..(M,X);ALA49,ZSA42..JPP..6F..M;ASA44,ZSA42..RUP..(6FC,B)..M;ASA44,ZSA44..JPP..(6F,201510-201707

main81170-42660iWWA42,ZSA44..RHD..G201510-201810

UK,MALTA SPEC&BASIC PACKAGE&HEAD LAMP-HALOGEN

main81185-42680iAVA42..RUS;ALA49,ASA44,ZSA4#..RUP..G;ALA49,WWA42,ZSA4#..LHD..6F..G..(DCRE,EFI)201510-201810

HEAD LAMP-LED

main81185-42690iAVA4#..RHD;WWA42,ZSA44..RHD..G201510-201810

HEAD LAMP-LED

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42010iALA4#,ZSA44201212-201510

main81195-42040iZSA42..RUP..6F..M;ASA44,ZSA44..RUP..(6F,6FC)..X201510-201810

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42010iALA4#,ZSA44201212-201510

main81196-42040iZSA42..RUP..6F..M;ASA44,ZSA44..RUP..(6F,6FC)..X201510-201810

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iALA4#,ZSA44201212-201810

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iALA4#,ZSA44201212-201810

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

12 parts on this diagram · 4 diagrams in section
