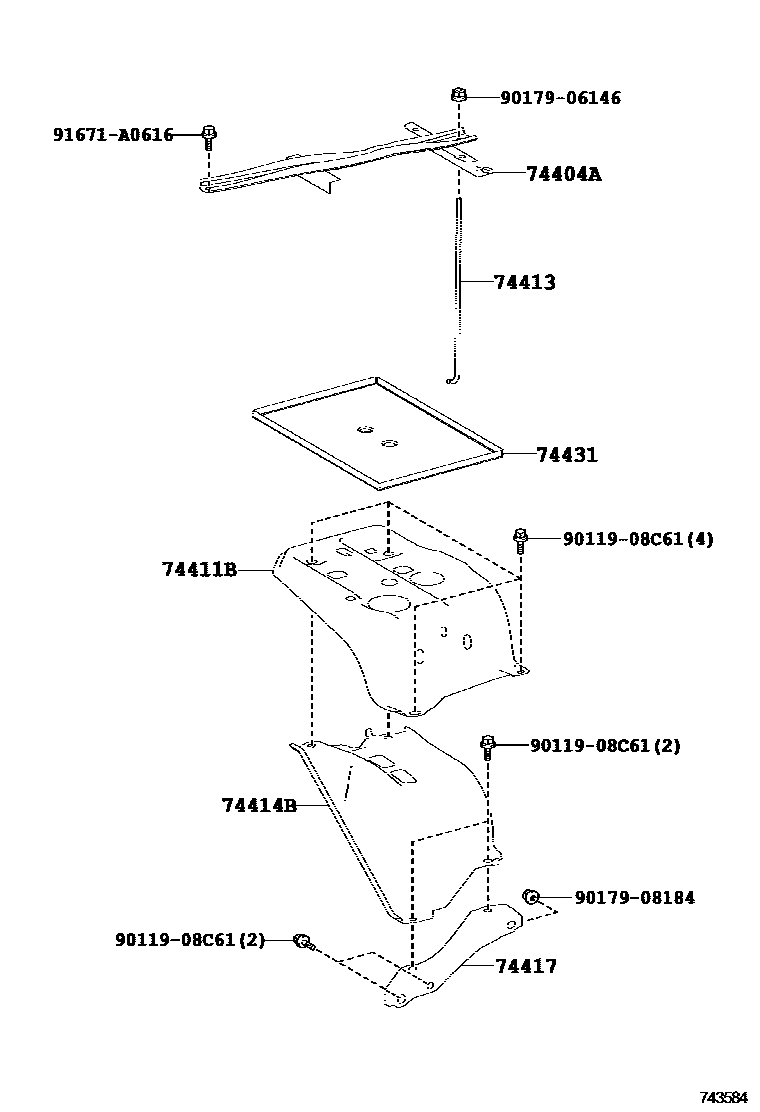

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-42190iASA44..X..EUR;ASA44..JPP..(G,M)¥2,130201510-201810

main74404-42200iALA49..RUP;ALA49..(G,M)..DCRE201212-201810

main74404-42210iZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA42..JPP..B..(G,M);ZSA44..JPP..B..(G,X)201212-201810

main74404-42220iWWA42201510-201805

main74404-42250iAVA4#201510-201810

74411BBRACKET, BATTERY, FRONT

main74410-42011iZSA44¥15,000201212-201810

main74411-42040iALA49,ASA44..RUP;ALA49..(G,M)..DCRE;ASA44..JPP..X..RUS¥4,900201212-201810

74413BOLT, BATTERY CLAMP

main74451-10060iALA4#,ZSA44¥360201212-201502

main74451-10061iALA4#,ZSA44¥210201503-201810

sub74451-42030¥400

74414BREINFORCEMENT, BATTERY BRACKET

main74414-42011iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)¥3,260201212-201810

main74414-42020iWWA42201510-201805

74417BRACKET, BATTERY CARRIER

main74417-42030iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR¥1,110201212-201810

74431TRAY, BATTERY

main74431-42101iALA49,WWA42201212-201909

main74431-42110iZSA44¥1,830201212-201909

main74431-42140iASA44201510-201909

9011908C61

main90119-08C61¥80

9017906146

main90179-06146¥100

9017908184

main90179-08184¥90

91671A0616

main91671-A0616¥60

10 parts on this diagram · 4 diagrams in section
