SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33030-B1iASA44..X..RUS;ZSA44..RHD..X;ALA49,ZSA4#..RUP..X;WWA42,ZSA44..JPP..6F..X..(DCRE,EFI)201510-201810
LT.GRAY,TRIM20
sub73023-58010
sub73023-33030
main73023-33030-B1iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201607
LT.GRAY,TRIM1#,2#,3#,4#
sub73023-58010
sub73023-33030
main73023-33030-C0iAVA42,ZSA44..G..EUR;ALA49,ASA44,AVA44,ZSA4#..JPP..(ATM,CVT)..G..(DCRL,EFI,HTWC)201510-201810
BLACK,TRIM10,20,30,40
sub73023-58010
sub73023-33030
main73023-33030-C0iAVA42,ZSA44..G..EUR;ALA49,ASA44,AVA44,ZSA4#..JPP..(ATM,CVT)..G..(DCRL,EFI,HTWC)201510-201810
BLACK,TRIM20
sub73023-58010
sub73023-33030
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33030-B1iASA44..X..RUS;ZSA44..RHD..X;ALA49,ZSA4#..RUP..X;WWA42,ZSA44..JPP..6F..X..(DCRE,EFI)201212-201810
LT.GRAY,TRIM2#
sub73024-58010
sub73024-33030
main73024-33030-C0iAVA42,ZSA44..G..EUR;ALA49,ASA44,AVA44,ZSA4#..JPP..(ATM,CVT)..G..(DCRL,EFI,HTWC)201510-201810
BLACK,TRIM20
sub73024-58010
sub73024-33030
main73024-33030-C0iAVA42,ZSA44..G..EUR;ALA49,ASA44,AVA44,ZSA4#..JPP..(ATM,CVT)..G..(DCRL,EFI,HTWC)201510-201810
BLACK,TRIM10,20,30,40
sub73024-58010
sub73024-33030
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201508-201810
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/LT.GRAY,TRIM20
BLACK/LT.GRAY,TRIM10,20,30,40
BLACK/LT.GRAY,TRIM2#
BLACK/BLACK,TRIM20
BLACK/BLACK,TRIM10,20,30,40
main73210-42350-C0iALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201304
BLACK,TRIM2#
sub73210-42351
BLACK,TRIM1#,2#,3#,4#
sub73210-42351
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
sub73210-42410
BLACK/LT.GRAY,TRIM10,20,30,40
BLACK/LT.GRAY,TRIM20
BLACK/LT.GRAY,TRIM2#
BLACK/BLACK,TRIM10,20,30,40
BLACK/BLACK,TRIM20
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-33010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810
BLACK
main73219-33020iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810
GRAY
main73219-33030iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/LT.GRAY,TRIM2#
BLACK/LT.GRAY,TRIM10,20,30,40
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM10,20,30,40
BLACK/BLACK,TRIM20
BLACK,TRIM2#
sub73220-42311
BLACK,TRIM1#,2#,3#,4#
sub73220-42311
BLACK/LT.GRAY,TRIM20
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
BLACK/LT.GRAY,TRIM2#
BLACK/BLACK,TRIM20
BLACK/LT.GRAY,TRIM2#
BLACK/LT.GRAY,TRIM10,20,30,40
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM10,20,30,40
BLACK/BLACK,TRIM20
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BASIC PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT TYPE),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,3#,4#
SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK,TRIM2#
main73230-42210-C0iALA41..LHD..M;ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM)201212-201510
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
main73230-42210-C0iZSA4#..JPP..B..M;WWA42,ZSA44..JPP..LHD..X;ALA49,ASA44,ZSA42..JPP..X..RUS201510-201810
BLACK,TRIM2#,3#
main73230-42210-C0iZSA4#..JPP..B..M;WWA42,ZSA44..JPP..LHD..X;ALA49,ASA44,ZSA42..JPP..X..RUS201510-201810
BASIC PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT TYPE),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,3#,4#
SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

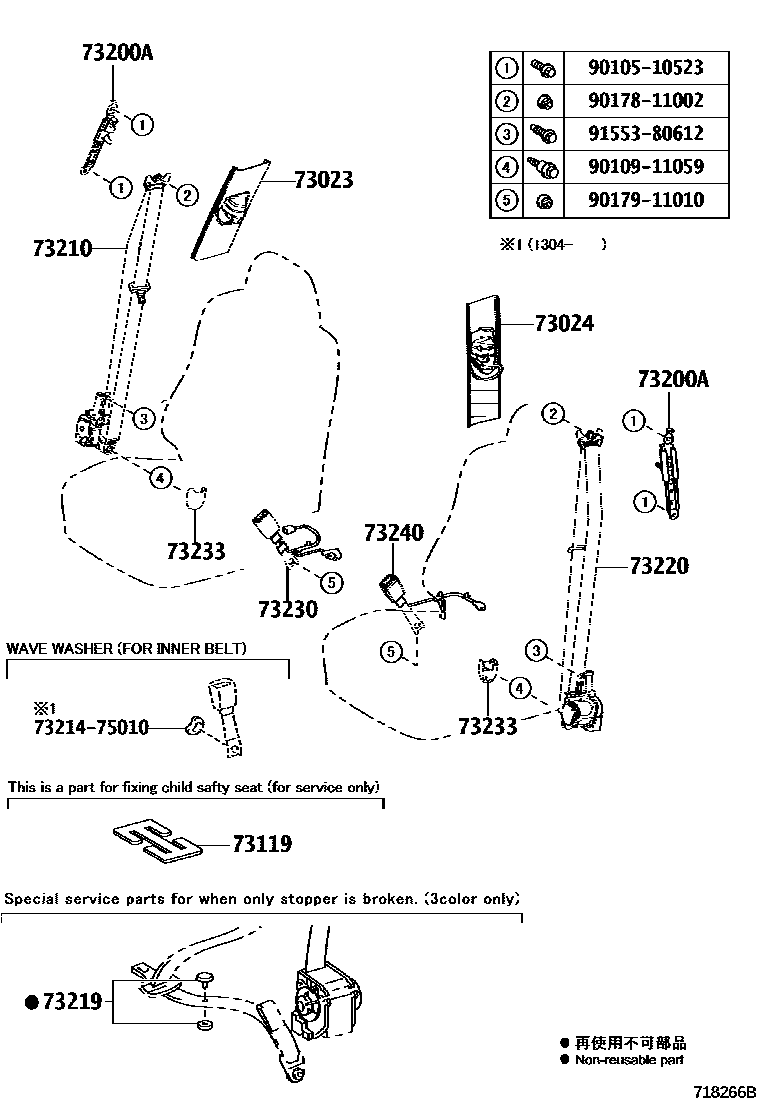

16 parts on this diagram · 3 diagrams in section
