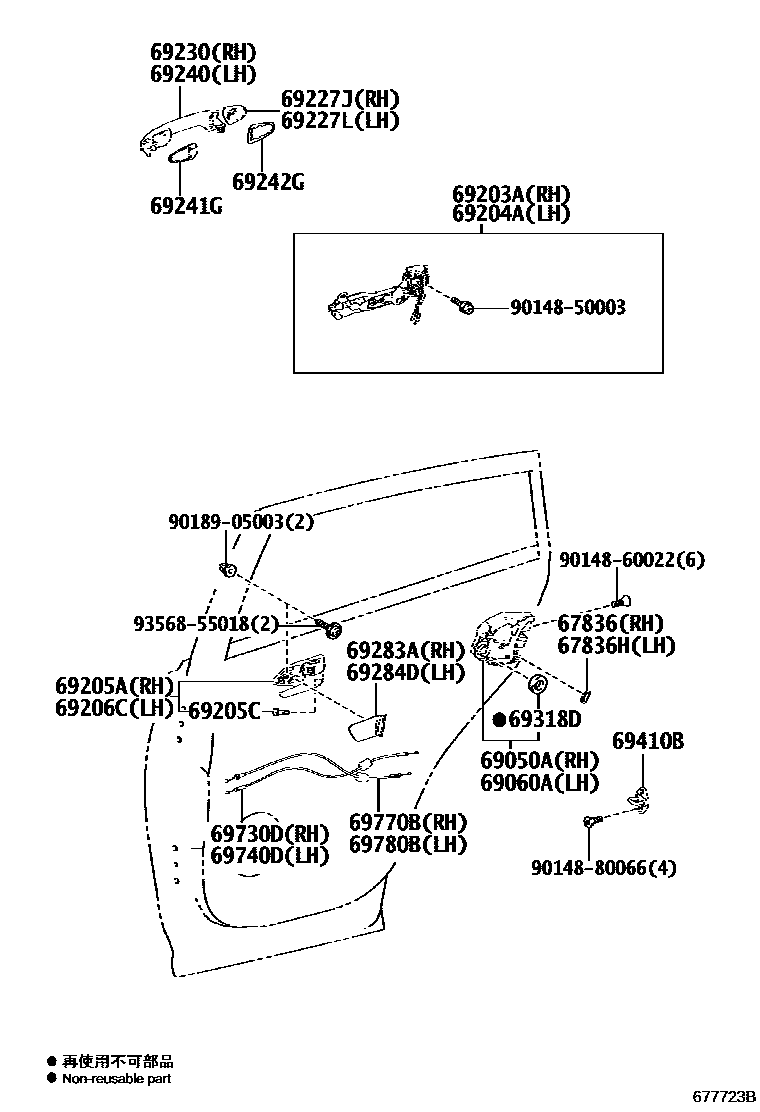

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iALA49,ASA44,AVA4#,WWA42,ZSA4#201212-201701

main67836-60010iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201702-201810

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-14010iALA49,ASA44,AVA4#,WWA42,ZSA4#201212-201701

main67836-60010iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201702-201810

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-12410iALA4#,ZSA44..RHD201212-201810

main69050-33120iWWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

main69050-42021iALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201212-201510

AUSTRALIA SPEC

main69050-42021iALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201212-201510

NEW ZEALAND SPEC

main69050-42021iALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201212-201510

ANTI-THEFT SYSTEM-WITH(*IM)

main69050-42021iALA49..RHD..6F..X..DCR201212-201510

BASIC PACKAGE&POWER DOOR LOCK-WITH

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-12410iALA4#,ZSA44..RHD201212-201810

main69060-33120iALA4#,ZSA44..LHD..G201212-201810

main69060-42021iALA49..RHD..6FC..X..DCR201212-201510

AUSTRALIA SPEC

main69060-42021iALA49..RHD..6FC..X..DCR201212-201510

NEW ZEALAND SPEC

main69060-42021iALA49..RHD..6FC..X..DCR201212-201510

BASIC PACKAGE&POWER DOOR LOCK-WITH

main69060-42021iALA49..RHD..6FC..X..DCR201212-201510

ANTI-THEFT SYSTEM-WITH(*IM)

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-42070iALA4#,ZSA44201212-201810

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-42070iALA4#,ZSA44201212-201810

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-33111-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201510-201810

BLACK,TRIM2#,3#

main69205-33111-C0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201810

BLACK,TRIM2#

main69205-33111-C0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201810

BLACK,TRIM1#,2#,3#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-33121-C0iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201810

BLACK,TRIM2#

main69206-33121-C0iALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)201212-201810

BLACK,TRIM1#,2#,3#,4#

main69206-33121-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201510-201810

BLACK,TRIM2#,3#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42080-A0iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

SUPER WHITE 2,040

main69227-42080-A1iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201812

WHITE PEARL CS.,070

main69227-42080-A2iALA49,ASA44,ZSA4#..RUP201803

PLATINUM WHITE PEARL MC.,089

main69227-42080-B0iALA4#,ZSA44201212-201810

SILVER ME.,1F7

main69227-42080-B1iALA4#,ZSA44201212-201810

GRAY ME.,1G3

main69227-42080-B2iALA49,ASA44,ZSA4#..RUP201410-201803

DK. STEEL MC.,1H2

main69227-42080-B3iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201608-201810

SILVER ME.,1D6

main69227-42080-C1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

BLACK MC.,209

main69227-42080-C2iALA49,ASA44,ZSA4#..RUP201610

ATTITUDE BLACK MC.,218

main69227-42080-C3iWWA42;ALA49..RUP;ZSA44..RUP..B;ZSA42..RUP..B..M;ZSA42..RUP..(G,X);ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ASA44,ZSA44..JPP..(6F,6FC)..X..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A201608-201810

BLACKISH AGEHA GF.,221

main69227-42080-D0iALA4#,ZSA44201212-201708

RED M.M.,3R3

main69227-42080-D1iAVA42..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP.201510-201810

DK.RED M.M.,3T0

main69227-42080-D2iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201708-201810

RED MC.,3T3

main69227-42080-E0iALA4#,ZSA44201212-201810

BRONZE M.M.,4T3

main69227-42080-E1iALA4#,ZSA44201311-201810

DK.BROWN ME.,4U5

main69227-42080-E2iALA49,ASA44,AVA4#,WWA42,ZSA4#201410-201608

ORANGE ME.,4R8

main69227-42080-E3iALA49,ASA44,ZSA4#..RUP201610-201803

DK. BROWN M.M.,4U3

main69227-42080-E4iALA49,ASA44,ZSA4#..RUP201803

GRAPHITE ME.,4X7

main69227-42080-G0iALA4#,ZSA44201212-201311

DK.GREEN MC.,6V4

main69227-42080-J0iALA4#,ZSA44201212-201410

GRAYISH BLUE M.M.,8V5

main69227-42080-J2iASA44..JPP..RUS;ALA49,AVA4#,WWA42,ZSA4#..JPP201510-201810

BLUE ME.,8X7

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-42080-A0iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

SUPER WHITE 2,040

main69227-42080-A1iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201812

WHITE PEARL CS.,070

main69227-42080-A2iALA49,ASA44,ZSA4#..RUP201803

PLATINUM WHITE PEARL MC.,089

main69227-42080-B0iALA4#,ZSA44201212-201810

SILVER ME.,1F7

main69227-42080-B1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

GRAY ME.,1G3

main69227-42080-B2iALA49,ASA44,ZSA4#..RUP201410-201803

DK. STEEL MC.,1H2

main69227-42080-B3iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201608-201810

SILVER ME.,1D6

main69227-42080-C1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

BLACK MC.,209

main69227-42080-C2iALA49,ASA44,ZSA4#..RUP201610

ATTITUDE BLACK MC.,218

main69227-42080-C3iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201608-201810

BLACKISH AGEHA GF.,221

main69227-42080-D0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201708

RED M.M.,3R3

main69227-42080-D1iAVA42..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP.201510-201810

DK.RED M.M.,3T0

main69227-42080-D2iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201708-201810

RED MC.,3T3

main69227-42080-E0iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

BRONZE M.M.,4T3

main69227-42080-E1iALA4#,ZSA44201311-201810

DK.BROWN ME.,4U5

main69227-42080-E2iALA49,ASA44,AVA4#,WWA42,ZSA4#201410-201608

ORANGE ME.,4R8

main69227-42080-E3iALA49,ASA44,ZSA4#..RUP201610-201803

DK. BROWN M.M.,4U3

main69227-42080-E4iALA49,ASA44,ZSA4#..RUP201803

GRAPHITE ME.,4X7

main69227-42080-G0iALA4#,ZSA44201212-201311

DK.GREEN MC.,6V4

main69227-42080-J0iALA4#,ZSA44201212-201410

GRAYISH BLUE M.M.,8V5

main69227-42080-J2iASA44..JPP..RUS;ALA49,AVA4#,WWA42,ZSA4#..JPP201510-201810

BLUE ME.,8X7

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-42040-A0iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

SUPER WHITE 2,040

main69211-42040-A1iALA4#,ZSA44201212-201812

WHITE PEARL CS.,070

main69211-42040-A2iALA49,ASA44,ZSA4#..RUP201803-201909

PLATINUM WHITE PEARL MC.,089

main69211-42040-B0iALA4#,ZSA44201212-201810

SILVER ME.,1F7

main69211-42040-B1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

GRAY ME.,1G3

main69211-42040-B2iALA49,ASA44,ZSA4#..RUP201410-201803

DK. STEEL MC.,1H2

main69211-42040-B3iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201608-201810

SILVER ME.,1D6

main69211-42040-C1iALA4#,ZSA44201212-201810

BLACK MC.,209

main69211-42040-C2iALA49,ASA44,ZSA4#..RUP201610-201909

ATTITUDE BLACK MC.,218

main69211-42040-C3iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201608-201810

BLACKISH AGEHA GF.,221

main69211-42040-D0iALA4#,ZSA44201212-201708

RED M.M.,3R3

main69211-42040-D1iAVA42..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP.201510-201810

DK.RED M.M.,3T0

main69211-42040-D2iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201708-201810

RED MC.,3T3

main69211-42040-E0iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

BRONZE M.M.,4T3

main69211-42040-E1iALA4#,ZSA44201311-201810

DK.BROWN ME.,4U5

main69211-42040-E2iALA49,ASA44,AVA4#,WWA42,ZSA4#201410-201608

ORANGE ME.,4R8

main69211-42040-E3iALA49,ASA44,ZSA4#..RUP201610-201803

DK. BROWN M.M.,4U3

main69211-42040-E4iALA49,ASA44,ZSA4#..RUP201803-201909

GRAPHITE ME.,4X7

main69211-42040-G0iALA4#,ZSA44201212-201311

DK.GREEN MC.,6V4

main69211-42040-J0iALA4#,ZSA44201212-201410

GRAYISH BLUE M.M.,8V5

main69211-42040-J2iASA44..JPP..RUS;ALA49,AVA4#,WWA42,ZSA4#..JPP201510-201810

BLUE ME.,8X7

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-42040-A0iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

SUPER WHITE 2,040

main69211-42040-A1iALA4#,ZSA44201212-201812

WHITE PEARL CS.,070

main69211-42040-A2iALA49,ASA44,ZSA4#..RUP201803-201909

PLATINUM WHITE PEARL MC.,089

main69211-42040-B0iAVA42..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP.201212-201810

SILVER ME.,1F7

main69211-42040-B1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

GRAY ME.,1G3

main69211-42040-B2iALA49,ASA44,ZSA4#..RUP201410-201803

DK. STEEL MC.,1H2

main69211-42040-B3iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201608-201810

SILVER ME.,1D6

main69211-42040-C1iALA4#,ZSA44201212-201810

BLACK MC.,209

main69211-42040-C2iALA49,ASA44,ZSA4#..RUP201610-201909

ATTITUDE BLACK MC.,218

main69211-42040-C3iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201608-201810

BLACKISH AGEHA GF.,221

main69211-42040-D0iALA4#,ZSA44201212-201708

RED M.M.,3R3

main69211-42040-D1iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810

DK.RED M.M.,3T0

main69211-42040-D2iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201708-201810

RED MC.,3T3

main69211-42040-E0iALA4#,ZSA44201212-201810

BRONZE M.M.,4T3

main69211-42040-E1iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201311-201810

DK.BROWN ME.,4U5

main69211-42040-E2iALA4#,ZSA44201410-201608

ORANGE ME.,4R8

main69211-42040-E3iALA49,ASA44,ZSA4#..RUP201610-201803

DK. BROWN M.M.,4U3

main69211-42040-E4iALA49,ASA44,ZSA4#..RUP201803-201909

GRAPHITE ME.,4X7

main69211-42040-G0iALA4#,ZSA44201212-201311

DK.GREEN MC.,6V4

main69211-42040-J0iALA4#,ZSA44201212-201410

GRAYISH BLUE M.M.,8V5

main69211-42040-J2iASA44..JPP..RUS;ALA49,AVA4#,WWA42,ZSA4#..JPP201510-201810

BLUE ME.,8X7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-42040iALA4#,ZSA44201212-201810

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-30100iALA4#,ZSA44201212-201810

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-47010-C0iAVA42..G..RUS;ALA49,ASA44,ZSA4#..RUP..G;ALA49,WWA42,ZSA4#..6F..G..(DCRE,EFI)201212-201810

BLACK,TRIM1#,2#,3#,4#

main69283-47010-C0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201810

BLACK,TRIM2#

main69283-47010-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201510-201810

BLACK,TRIM2#,3#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-47010-C0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201810

BLACK,TRIM2#

main69284-47010-C0iALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR201212-201810

BLACK,TRIM1#,2#,3#,4#

main69284-47010-C0iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M201510-201810

BLACK,TRIM2#,3#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iALA4#,ZSA44201212-201810

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iALA4#,ZSA44201212-201810

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-42040iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-42040iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-42090iALA49..RHD..6F..X..DCR201212-201510

AUSTRALIA SPEC

main69770-42090iALA49..RHD..6F..X..DCR201212-201510

NEW ZEALAND SPEC

main69770-42090iALA49..RHD..6F..X..DCR201212-201510

ANTI-THEFT SYSTEM-WITH(*IM)

main69770-42090iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810

main69770-42100iALA4#,ZSA44..RHD201212-201810

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-42090iALA4#,ZSA44..LHD201212-201510

AUSTRALIA SPEC

main69770-42090iALA4#,ZSA44..LHD201212-201510

NEW ZEALAND SPEC

main69770-42090iALA4#,ZSA44..LHD201212-201510

ANTI-THEFT SYSTEM-WITH(*IM)

main69770-42090iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810

main69770-42100iALA4#,ZSA44..RHD201212-201810

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9018905003

main90189-05003

9356855018

main93568-55018

28 parts on this diagram · 1 diagram in section
