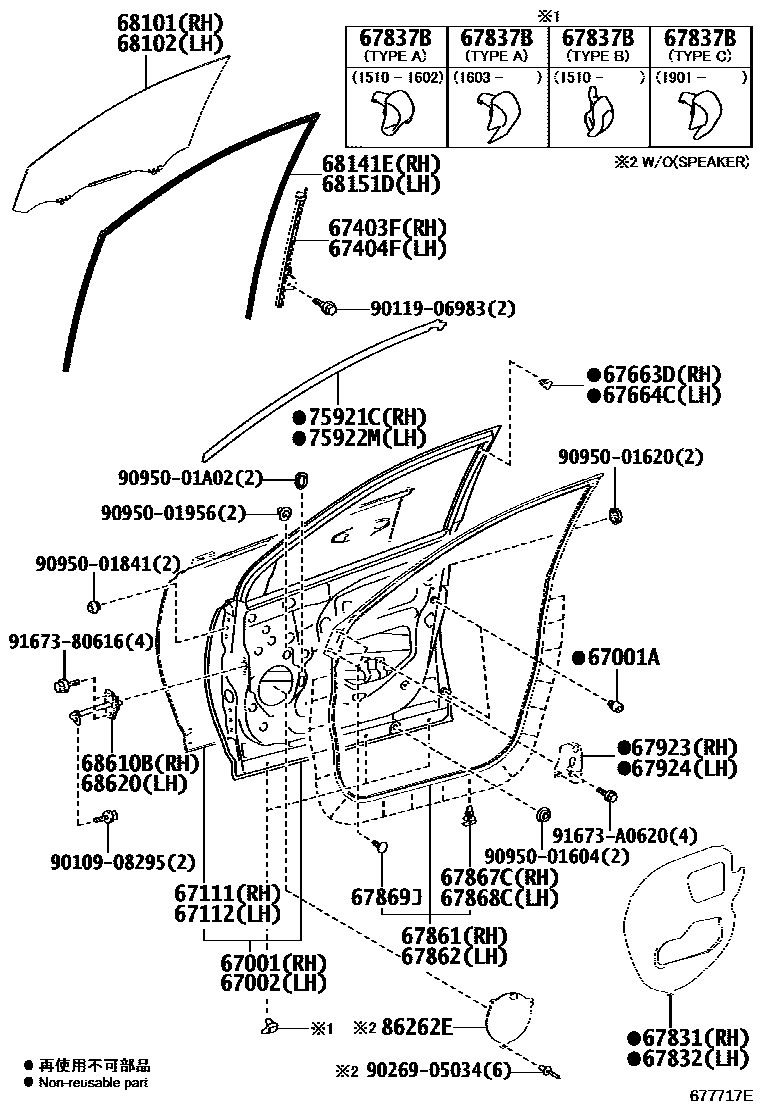

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R080iALA49,ASA44,ZSA4#..RUP201610

main67001-42150iALA4#,ZSA44201212-201510

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4iALA4#,ZSA44201212-201510

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R100iALA49,ASA44,ZSA4#..RUP201610

main67002-42150iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201510-201810

67111PANEL, FRONT DOOR, OUTER RH

main67111-0R060iALA49,ASA44,ZSA4#..RUP201610

main67111-42070iALA4#,ZSA44201212-201510

67112PANEL, FRONT DOOR, OUTER LH

main67112-0R060iALA49,ASA44,ZSA4#..RUP201610

main67112-42070iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201510-201810

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42040iALA4#,ZSA44201212-201510

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42040iALA4#,ZSA44201212-201510

67663DGARNISH, DOOR FRAME, RH

main67663-42020iALA4#,ZSA44201212-201510

67664CGARNISH, DOOR FRAME, LH

main67664-42020iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42080iALA4#,ZSA44201212-201508

main67831-42081iALA4#,ZSA44201509-201510

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42030iALA4#,ZSA44201212-201508

main67832-42031iALA4#,ZSA44201509-201510

67837BSEAL, FRONT DOOR DUST PROOF

main67837-12120×6iALA49,ASA44,AVA4#,WWA42,ZSA4#201510-201602

TYPE A:REFER ILLUST.

main67837-42010×6iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

TYPE B:REFER ILLUST.

main67837-47060×6iALA49,ASA44,ZSA4#..RUP201901

TYPE C:REFER ILLUST.

main67837-48050×6iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201603

TYPE A:REFER ILLUST.

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42090iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42090iALA4#,ZSA44201212-201510

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iALA4#,ZSA44201212-201510

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iALA4#,ZSA44201212-201510

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-42010iALA4#,ZSA44201212-201510

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-42010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R050iALA49,ASA44,ZSA4#..RUP201610

(L)

main68101-42190iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201510-201810

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R050iALA49,ASA44,ZSA4#..RUP201610

(L)

main68102-42190iALA49,ASA44,ZSA4#..RUP201610

(J)

68141ERUN, FRONT DOOR GLASS, RH

main68141-42100iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

68151DRUN, FRONT DOOR GLASS, LH

main68151-42100iALA4#,ZSA44201212-201510

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42050iALA4#,ZSA44201212-201311

main68610-42051iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

68620CHECK ASSY, FRONT DOOR, LH

main68610-42050iALA4#,ZSA44201212-201311

main68610-42051iALA4#,ZSA44201311-201510

75921CTAPE, BLACK OUT, NO.1 RH

main75921-42040iALA4#,ZSA44201212-201510

75922MTAPE, BLACK OUT, NO.1 LH

main75922-42040iALA4#,ZSA44201212-201510

86262ECOVER, SPEAKER, FRONT

main86262-50010×2iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

AUDIO-W/O(AUDIO&SPEAKER)

9010908295

main90109-08295

9011906983

main90119-06983

9026905034

main90269-05034

9095001604

main90950-01604

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

91673A0620

main91673-A0620

38 parts on this diagram · 2 diagrams in section
