SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
main53821-16010×2iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
55713CPANEL, COWL TOP SIDE, RH
5752
61035BPILLAR SUB-ASSY, NO.4 INNER, RH
61067AEXTENSION SUB-ASSY, QUARTER PANEL, INNER REAR RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
main61403-42050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
main61707-42060iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61719CBRACKET, ROOF SIDE RAIL, RH
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61783DPAD, REAR WHEEL OPENING EXTENSION, NO.1
main61783-48010×2iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
62151BPAD, COWL SIDE SILENCER
62151DPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
65565PATCH, SIDE PANEL REAR END, RH
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
65637BLINER, REAR WHEEL HOUSE, RH
67887GWEATHERSTRIP, ROCKER OUTER, RH
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9010508460
main90105-08460
9011506340
main90115-06340
9011906869
main90119-06869
9046706121
main90467-06121
9155380816
main91553-80816
9415080800
main94150-80800

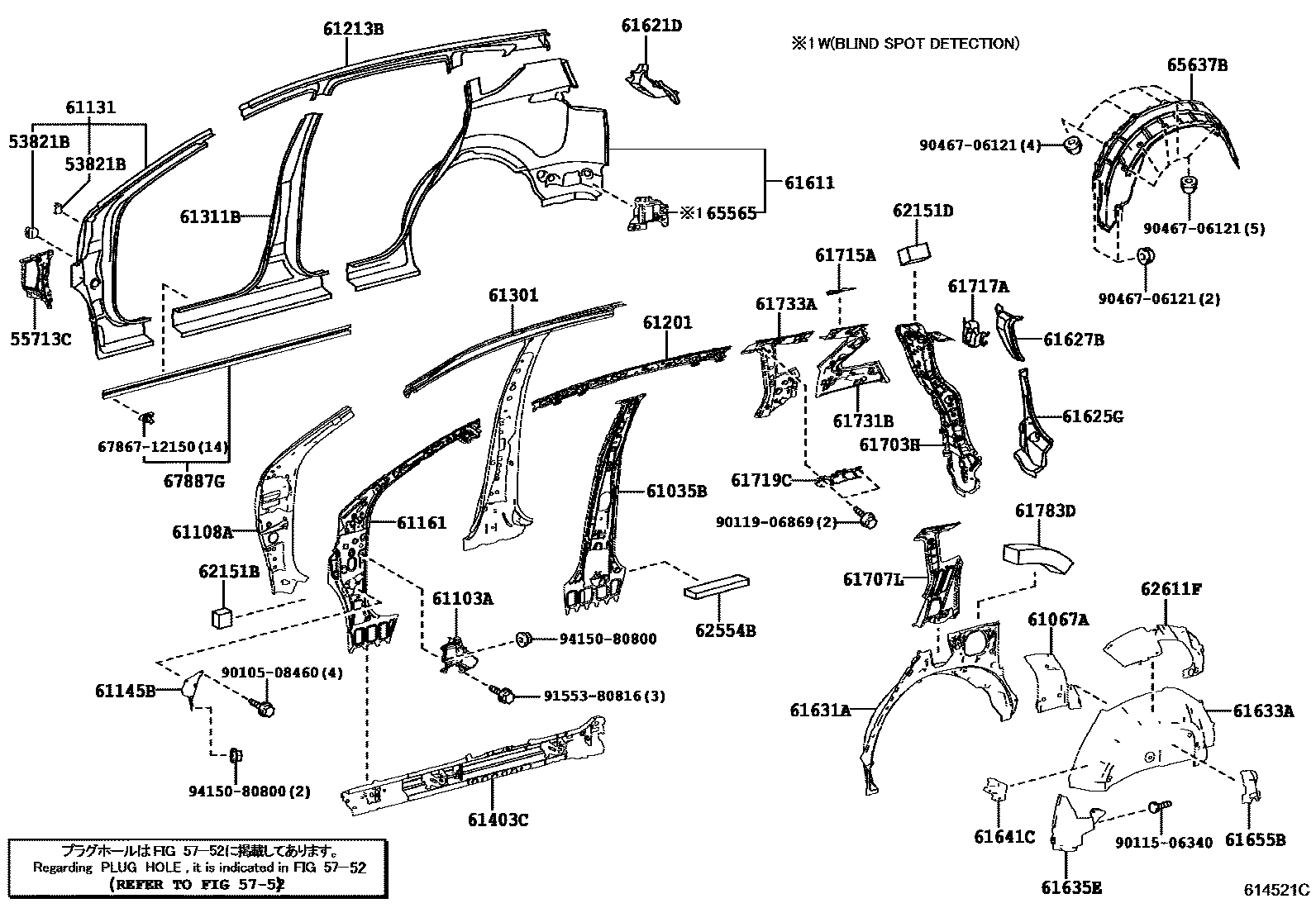

46 parts on this diagram · 4 diagrams in section
