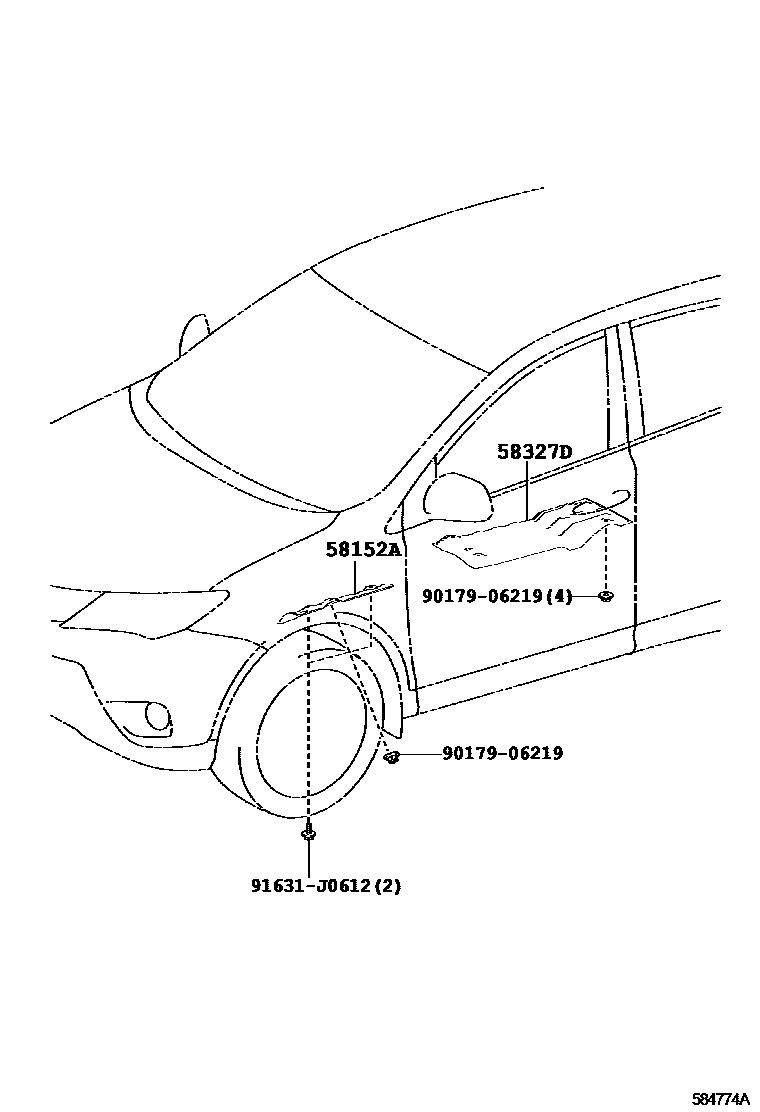

FLOOR INSULATOR

0001 1TYPE A 0002 1TYPE B 0004 1TYPE A 0005 1TYPE B 0007 1

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42010iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201212-201810

main58152-42030iZSA44..RHD..X;ASA44,ZSA4#..RUP;ASA44..JPP..X..RUS;ZSA42..JPP..6F..(G,M);ZSA44..JPP..6F..(G,X)..RUS201212-201810

main58152-48031iAVA4#201510-201810

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-42010iALA4#,ZSA44201212-201510

TYPE A:REFER ILLUST.

main58327-42020iALA4#,ZSA44201309-201510

TYPE B:REFER ILLUST.

main58327-42020iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

main58327-48050iAVA4#201510-201810

9017906219

main90179-06219

91631J0612

main91631-J0612

4 parts on this diagram · 5 diagrams in section
