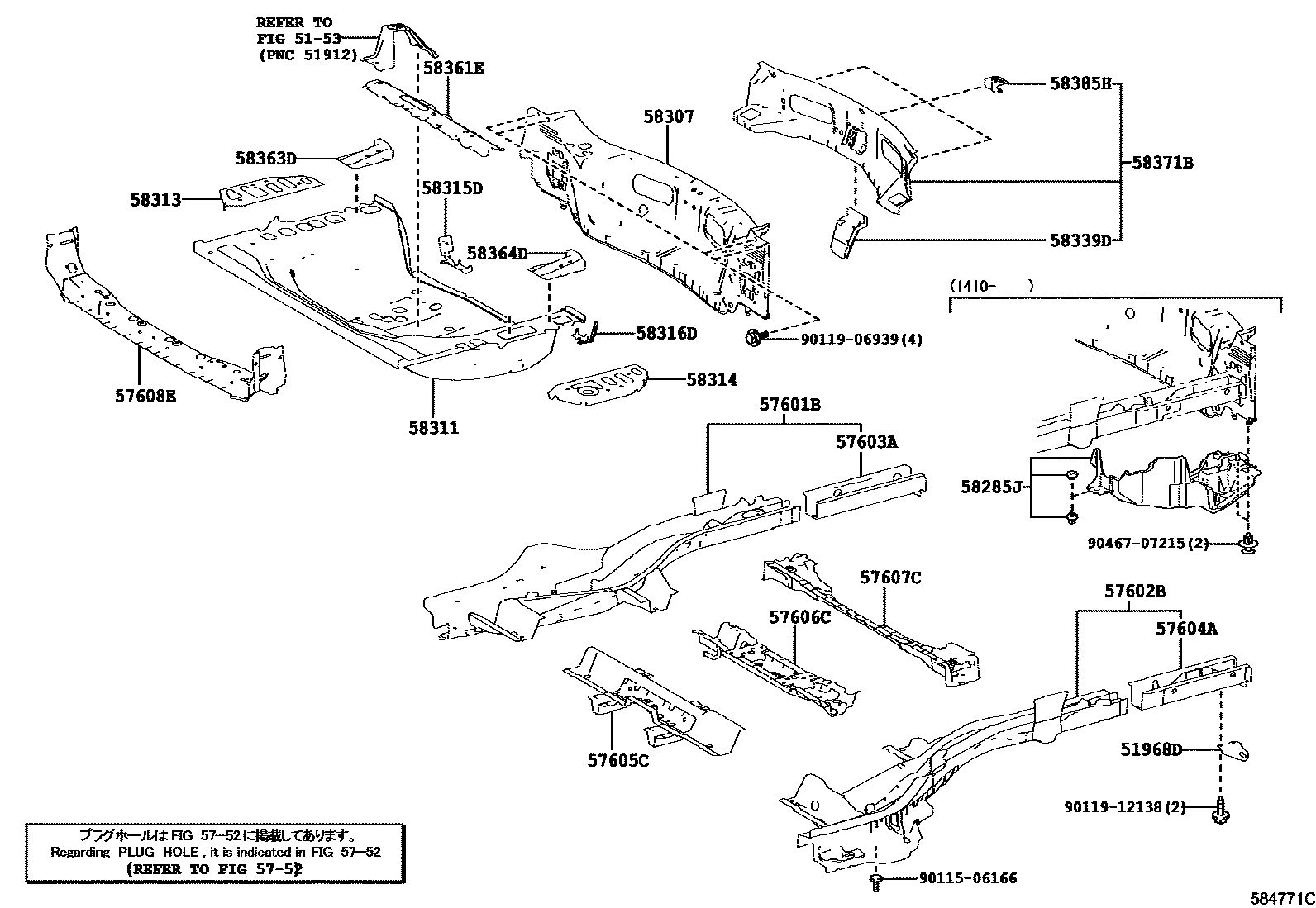

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

5153

51968DHOOK, TRANSPORT, REAR LH

main51968-42010iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42907iALA4#,ZSA44201212-201306

sub57601-48918

main57601-48918iALA4#,ZSA44201306-201510

main57601-78020iAVA4#201510-201810

sub57601-78021

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42905iALA4#,ZSA44201212-201306

sub57602-48917

main57602-48917iALA4#,ZSA44201306-201510

main57602-78020iAVA4#201510-201810

sub57602-78021

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-42021iALA4#,ZSA44201212-201510

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-42020iALA4#,ZSA44201212-201510

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-42010iALA49,ASA44,WWA42,ZSA4#201212-201510

main57605-78020iAVA4#201510-201810

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42100iALA4#,ZSA44201212-201510

main57606-48070iAVA4#201510-201810

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42070iALA4#,ZSA44201212-201410

main57607-78010iALA4#,ZSA44201410-201510

main57607-78020iAVA4#201510-201810

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-42050iALA4#,ZSA44201212-201305

sub57608-48030

main57608-48030iALA4#,ZSA44201306-201410

main57608-78010iALA4#,ZSA44201410-201510

58285JCOVER, CENTER FLOOR HOLE

main58285-42010iALA4#,ZSA44201410-201510

main58285-42020iASA44,AVA4#,WWA42,ZSA44..EUR201510-201810

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42020iALA4#,ZSA44201212-201410

sub58307-42021

main58307-42021iALA4#,ZSA44201410-201505

sub58307-42022

sub90950-01886

main58307-42030iALA4#,ZSA44201505-201510

58311PAN, REAR FLOOR

main58311-0R050iALA49,ASA44,ZSA4#..RUP201610

main58311-42130iALA4#,ZSA44201212-201505

sub58311-42132

main58311-42132iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201505-201810

58313PANEL, REAR FLOOR SIDE, RH

main58313-42040iALA4#,ZSA44201212-201510

58314PANEL, REAR FLOOR SIDE, LH

main58314-42040iALA4#,ZSA44201212-201510

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-42070iALA4#,ZSA44201212-201510

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-42080iALA4#,ZSA44201212-201510

58339DBRACKET, JACK UP

main58339-42040iALA4#,ZSA44201212-201810

58361EREINFORCEMENT, REAR FLOOR PANEL, NO.1

main58361-42020iALA4#,ZSA44201212-201510

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-42010iALA4#,ZSA44201212-201510

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-42030iALA4#,ZSA44201212-201510

58371BPANEL, BODY LOWER BACK, OUTER

main58302-42020iALA4#,ZSA44201212-201810

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-42020iALA4#,ZSA44201212-201810

9011506166

main90115-06166

9011906939

main90119-06939

9011912138

main90119-12138

9046707215

main90467-07215

28 parts on this diagram · 3 diagrams in section
