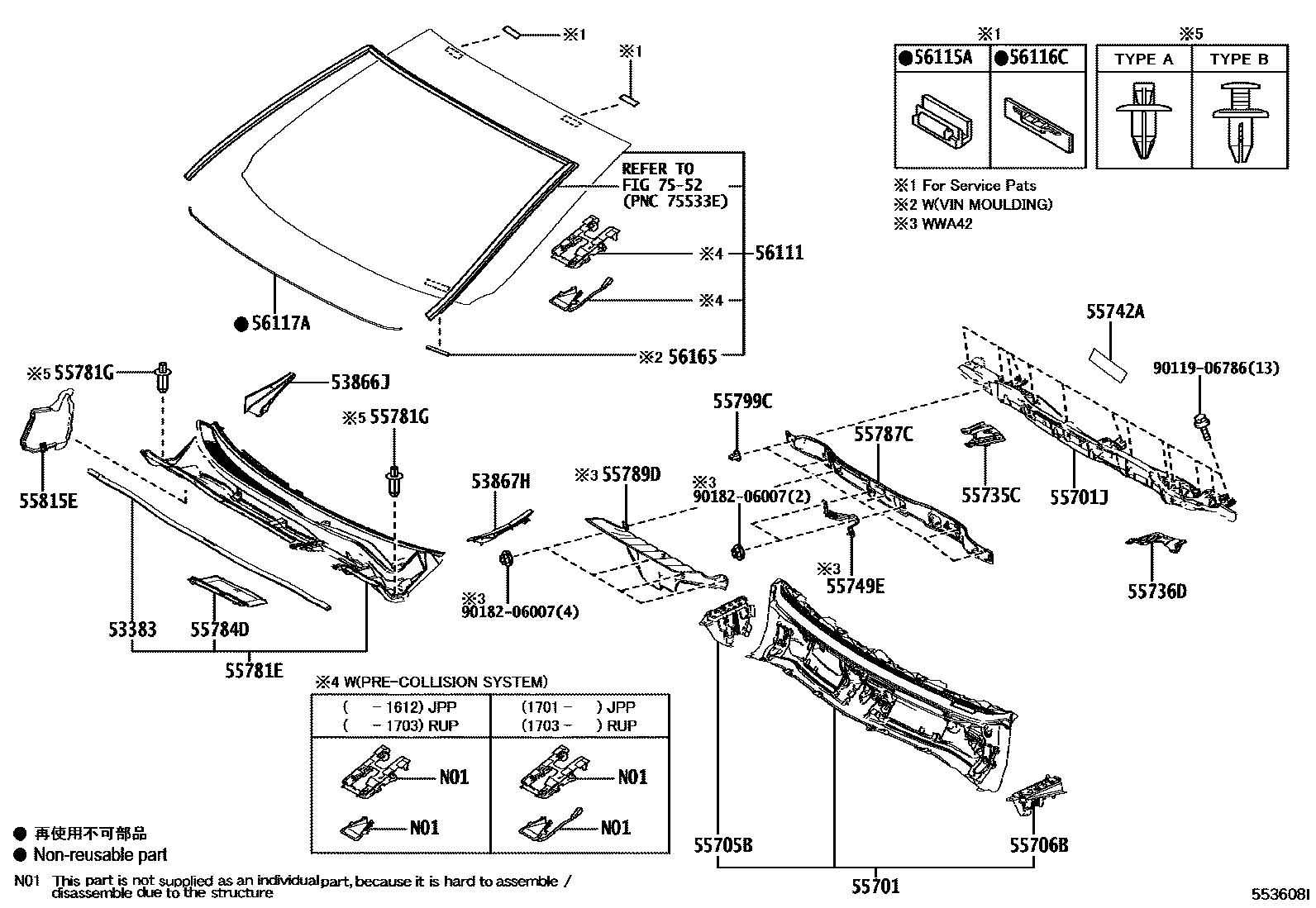

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
main53867-42020iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥1,030201212-201810
55701PANEL SUB-ASSY, COWL
main55700-42480iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201212-201810
55701JPANEL SUB-ASSY, COWL TOP, OUTER
sub55701-42391
main55701-42391iWWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
main55705-42070iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS¥3,260201212-201810
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
main55706-42050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥3,260201212-201810
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55749EPLATE, COWL TOP INSULATOR, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK,TYPE B:REFER ILLUST.
BLACK,TYPE A:REFER ILLUST.
sub90467-A0016
main90467-07076-C7iASA44..X..EUR;AVA42,ZSA44..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI)201703-201810
BLACK,TYPE A:REFER ILLUST.
sub90467-A0016
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55787CINSULATOR, COWL TOP PANEL, NO.1
sub55787-42051
main55787-42051iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
55789DINSULATOR, COWL TOP PANEL, NO.3
55799CCLIP, COWL TOP VENTILATOR LOUVER
55815ESEAL, FRONT VENTILATOR, NO.1
main55815-42040iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201510-201810
56111GLASS, WINDSHIELD
(L)
COLD AREA SPEC & WITH(REAR SEAT HEATER)
sub56101-0R231
COLD AREA SPEC & W/O(REAR SEAT HEATER)
sub56101-0R231
COLD AREA SPEC & W/O(REAR SEAT HEATER)
sub56101-0R232
COLD AREA SPEC & WITH(REAR SEAT HEATER)
sub56101-0R232
COLD AREA SPEC & W/O(REAR SEAT HEATER)
COLD AREA SPEC & WITH(REAR SEAT HEATER)
*LAM,T=4.76,GREEN,ENGLAND SPEC&BASIC PACKAGE
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,FRENCH SPEC&BASIC PACKAGE
*LAM,T=4.76,GREEN,NON-WVTA&SINGAPORE SPEC
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
REGULATION COMFORMITY LABEL & NAME PLATE-W(*WVTA & ID PLATE)&UK,MALTA SPEC&BASIC PACKAGE&SPEED WARNING-WITHOUT
FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT
COLD AREA SPEC
(J)
COLD AREA SPEC
(J)
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-JBL 7INCH DLX-DA DAB
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCHDLX-DA DAB
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-7INCH USBBT DLX-DA DAB
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-7INCH USB BT DLX-DA DAB
56115ASTOPPER, WINDSHIELD GLASS, NO.1
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-JBL 7INCH DLX-DA DAB
main56115-30100iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS¥130201212-201510
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-7INCH USB BT DLX-DA DAB
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCHDLX-DA DAB
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-7INCH USBBT DLX-DA DAB
56116CSTOPPER, WINDSHIELD GLASS, NO.2
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCHDLX-DA DAB
main56116-22050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥120201510-201810
COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-7INCH USBBT DLX-DA DAB
main56116-22050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥120201510-201810
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-7INCH USB BT DLX-DA DAB
main56116-22050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥120201510-201810
COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-JBL 7INCH DLX-DA DAB
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1307,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL DAB EU
*D,L=1307,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCH DA-FULL DAB EU
*D,L=1307,COLD AREA SPEC&AUDIO-6SPEAKER 7INCH DA-FULL DAB EU
*D,L=1307,COLD AREA SPEC&AUDIO-JBL 7INCH DA-FULL DAB EU
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-7INCH USB BT DLX-DA DAB
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)&PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCH DLX-DA DAB
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)&TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-7INCH USB BT DLX-DA DAB
*D,L=1307,COLD AREA SPEC & WITH(REAR SEAT HEATER)&AUDIO-JBL 7INCH DLX-DA DAB
*D,L=1307,COLD AREA SPEC & W/O(REAR SEAT HEATER)
*D,L=1307,PRE-COLLISION SYSTEM-WITH
*D,L=1307,PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL DAB EU
*D,L=1307,PRE-COLLISION SYSTEM-WITH&AUDIO-JBL 7INCH DA-FULL DAB EU
*D,L=1307,SPEED WARNING-WITHOUT
*D,L=1307,AUDIO-6SPEAKER(AUDIO LESS)
*D,L=1307,AUDIO-6SPEAKER 7INCH DA-FULL DAB EU
*D,L=1307,AUDIO-JBL 7INCH DA-FULL DAB EU
*D,L=1307
*D,L=1307,REGULATION COMFORMITY LABEL & NAME PLATE-W(*WVTA & ID PLATE)&UK,MALTA SPEC&BASIC PACKAGE&SPEED WARNING-WITHOUT
*D,L=1307,REGULATION COMFORMITY LABEL & NAME PLATE-W(*WVTA & ID PLATE)&UK,MALTA SPEC&AUDIO-WITHOUT
*D,L=1307,FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT
*D,L=1307,COLD AREA SPEC
*D,L=1307,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH
*D,L=1307,ENGLAND SPEC&BASIC PACKAGE
*D,L=1307,FRENCH SPEC&BASIC PACKAGE
*D,L=1307,NON-WVTA&SINGAPORE SPEC
*D,L=1307,COLD AREA SPEC&HEADLAMP-4,PROJECTER & W(*AHB)
*D,L=1307,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)
*D,L=1307,HEADLAMP-4,PROJECTER & W(*AHB)
*D,L=1307,HEADLAMP-DISCHARGE & W(*AHB)
56165COVER, FRONT WINDOW INNER MOULDING, LH
main56165-30010iALA49..X;ALA49..RHD..(G,M);ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..X¥350201212-201510
FRENCH SPEC&BASIC PACKAGE
main56165-30010iZSA44..X..EUR;AVA4#,WWA42..RHD;ZSA44..RHD..(G,M);ASA44,WWA42..LHD..X..EUR¥350201510-201810
FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT
7552
9011906786
9018206007
26 parts on this diagram · 2 diagrams in section
