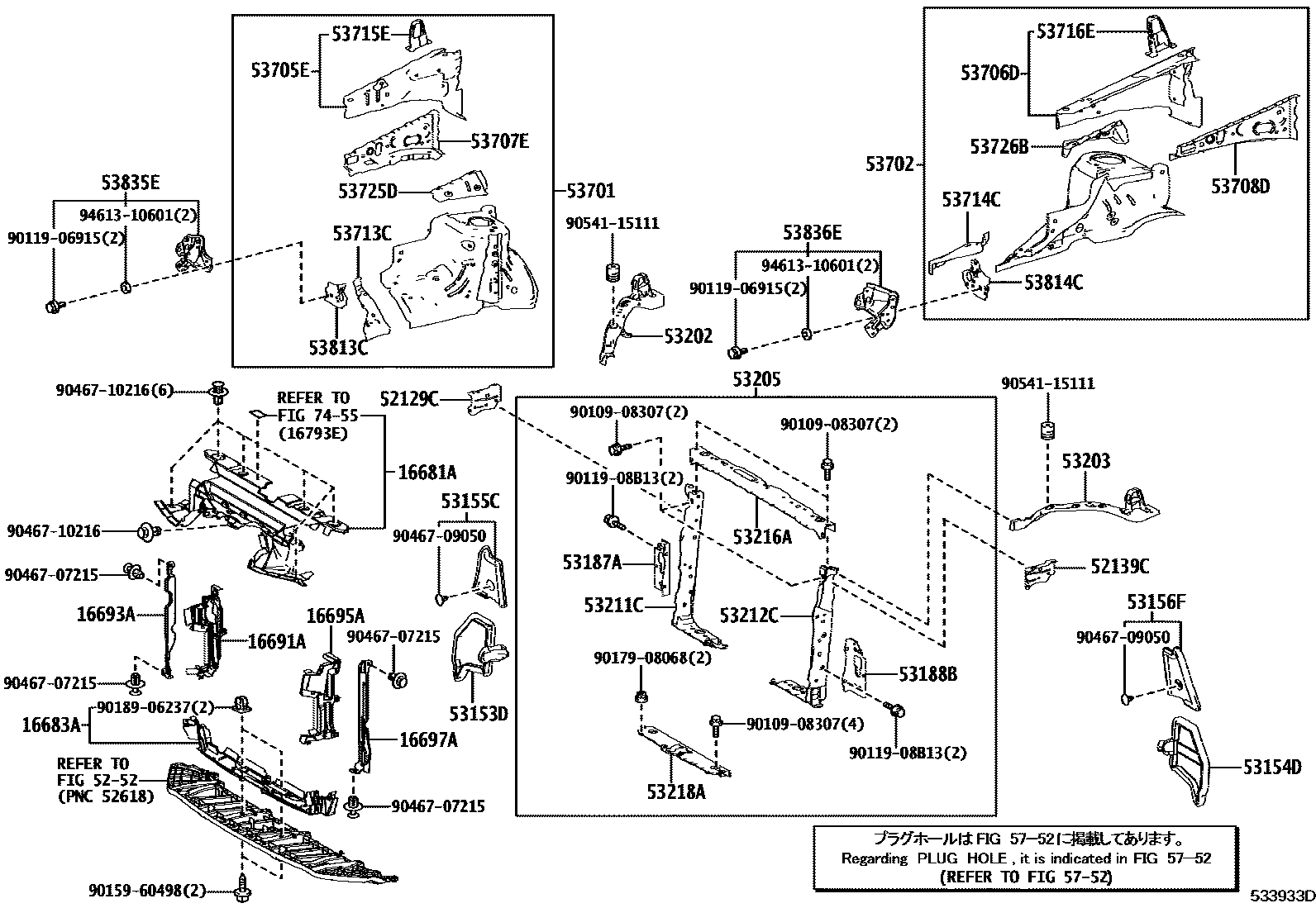

FRONT FENDER APRON & DASH PANEL

0001 1FRONT FENDER APRON 0002 1FRONT FENDER APRON 0003 1FRONT FENDER APRON 0004 1FRONT FENDER APRON 0005 1FRONT FENDER APRON 0006 1FRONT FENDER APRON 0007 1DASH PANEL 0008 1DASH PANEL 0009 1DASH PANEL 0010 1DASH PANEL

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-26010i1ADFTV,2AD#..ALA4#201212-201510

main16681-36010i3ZRFAE..ZSA44201212-201510

main16681-36020i2AD#,2AR#,2WW,3ZR#..ALA49,ASA44,AVA4#,WWA42,ZSA4#201510-201607

sub16681-36021

main16681-36021i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;3ZRFE..ZSA42..JPP..B..M;3ZRFE..ZSA44..JPP..B..X;2ARFE,3ZRFE..ASA44,ZSA44..JPP..(G,M);2ADFTV,3ZRFE..ALA49,ZSA42..JPP..(G,X);2201608-201810

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-36010i1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44201212-201510

main16683-36060i2ARFXE..AVA4#201510-201810

main16683-36070i2WW..WWA42;2AD#..ALA49..RUP;3ZRFE..ZSA44..RUP..B;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..RUP..B..M;3ZRFE..ZSA42..RUP..(G,X);2ARFE..ASA44..JPP..X..RUS;3ZRFE..ZSA44..JPP.201510-201810

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-26010i1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44201212-201510

main16691-36090i3ZRFE..ZSA42..RUP..6F..M;2ARFE,3ZRFE..ASA44,ZSA44..RUP..(6F,6FC)..X201510-201810

main16691-36100i2ARFXE..AVA4#201510-201810

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-26010i1ADFTV,2AD#..ALA4#201212-201810

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-26010i1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44201212-201510

main16695-36090i2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2ADFTV,3ZRFE..ALA49,ZSA42..JPP..X;2ADFHV,3ZRFAE..ALA49,ZSA44..JPP..L201510-201810

main16695-36100i2ARFXE..AVA4#201510-201810

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-26010i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201212-201810

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-42020iALA4#,ZSA44¥1,470201212-201810

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-42020iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS¥1,470201212-201810

5252

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-42010iALA4#,ZSA44201212-201810

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-42020iALA4#,ZSA44¥1,460201212-201810

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-42040iALA4#,ZSA44201212-201810

53156FSEAL, RADIATOR GRILLE, NO.2

main53156-42020iALA4#,ZSA44¥840201212-201810

53187ASTAY, RADIATOR SUPPORT, RH

main53187-42010iALA4#,ZSA44¥1,720201212-201810

53188BSTAY, RADIATOR SUPPORT, LH

main53188-42010iALA4#,ZSA44¥1,720201212-201810

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-42030iALA4#,ZSA44¥3,840201212-201810

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-42040iALA4#,ZSA44¥3,840201212-201810

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-42080iALA4#,ZSA44201212-201510

main53205-42120iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

53211CSUPPORT, RADIATOR, RH

main53211-42903iALA4#,ZSA44201212-201810

53212CSUPPORT, RADIATOR, LH

main53212-42903iALA4#,ZSA44201212-201810

53216ASUPPORT, RADIATOR, UPPER

main53216-42902iALA4#,ZSA44201212-201810

53218ASUPPORT, RADIATOR, LOWER

main53209-42020iALA4#,ZSA44201212-201510

main53209-78010iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA¥1,500201510-201810

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-42150iALA4#,ZSA44¥29,500201212-201810

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-42160iALA4#,ZSA44¥29,500201212-201810

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-42020iALA4#,ZSA44201212-201810

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-42020iALA4#,ZSA44201212-201810

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42010iALA4#,ZSA44¥3,560201212-201810

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42010iALA4#,ZSA44¥3,560201212-201810

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-42040iALA4#,ZSA44¥1,390201212-201810

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-42040iALA4#,ZSA44¥1,950201212-201312

sub53714-42041¥1,350

main53714-42041iALA4#,ZSA44¥1,350201401-201810

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-42020iALA4#,ZSA44201212-201810

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-42020iALA4#,ZSA44201212-201810

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-42010iALA4#,ZSA44¥1,390201212-201810

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-42010iALA4#,ZSA44¥1,390201212-201810

53813CEXTENSION, FRONT FENDER, RH

main53813-42030iALA4#,ZSA44¥1,170201212-201810

53814CEXTENSION, FRONT FENDER, LH

main53814-42030iALA4#,ZSA44¥1,280201212-201810

53835EBRACE, FRONT FENDER TO APRON, RH

main53803-42010iALA4#,ZSA44201212-201509

sub53803-42020

main53803-42020iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

53836EBRACE, FRONT FENDER TO APRON, LH

main53804-42010iALA4#,ZSA44¥2,560201212-201810

5752

7455

9010908307

main90109-08307¥80

9011906915

main90119-06915¥60

9011908B13

main90119-08B13¥90

9015960498

main90159-60498¥70

9017908068

main90179-08068¥100

9018906237

main90189-06237¥100

9046707215

main90467-07215¥80

9046709050

main90467-09050¥120

9046710216

main90467-10216¥100

9054115111

main90541-15111¥330

9461310601

main94613-10601¥70
