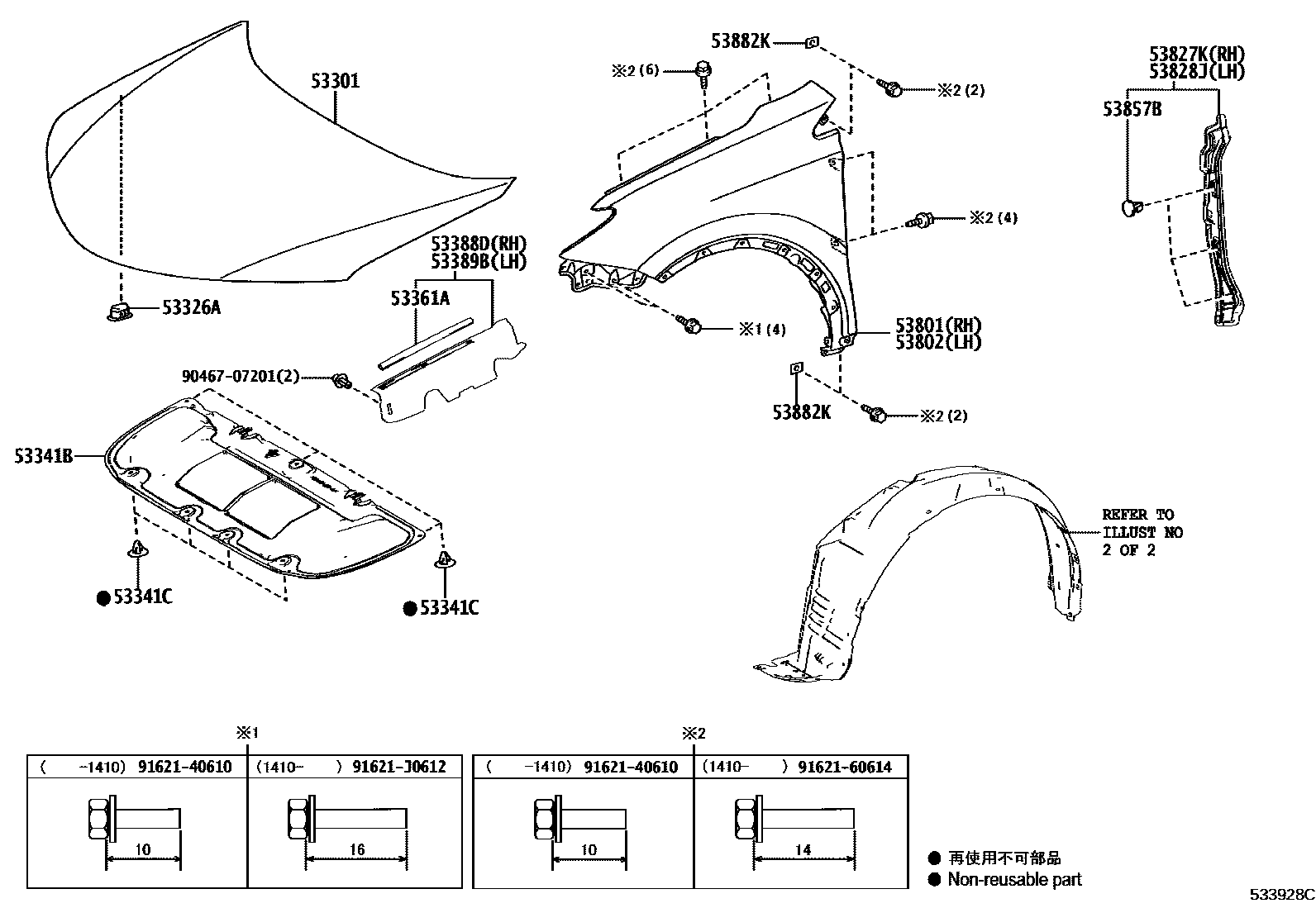

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R070iALA49,ASA44,ZSA4#..RUP201610-201909

main53301-42110iALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP201212-201810

53326ACLIP, HOOD MOULDING

main53326-52010iALA4#,ZSA44201212-201810

53341BINSULATOR, HOOD

main53341-42090iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iALA4#,ZSA44201212-201810

53361AWEATHERSTRIP, HOOD

main53361-42010iALA4#,ZSA44201212-201810

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42030iALA4#,ZSA44201212-201510

main53388-42031iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42050iALA4#,ZSA44201212-201510

main53389-42051iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810

53801FENDER SUB-ASSY, FRONT RH

main53811-0R120iALA49,ASA44,ZSA4#..RUP201610-201909

main53811-42320iALA4#,ZSA44201212-201810

53802FENDER SUB-ASSY, FRONT LH

main53812-0R100iALA49,ASA44,ZSA4#..RUP201610-201909

main53812-42350iALA4#,ZSA44201212-201810

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42050iALA4#,ZSA44201212-201810

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42070iALA4#,ZSA44201212-201810

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iALA4#,ZSA44201212-201810

53882KSEAL, FRONT FENDER

main53882-16030iALA4#,ZSA44201212-201810

9046707201

main90467-07201

9162140610

main91621-40610

9162160614

main91621-60614

91621J0612

main91621-J0612

17 parts on this diagram · 2 diagrams in section
