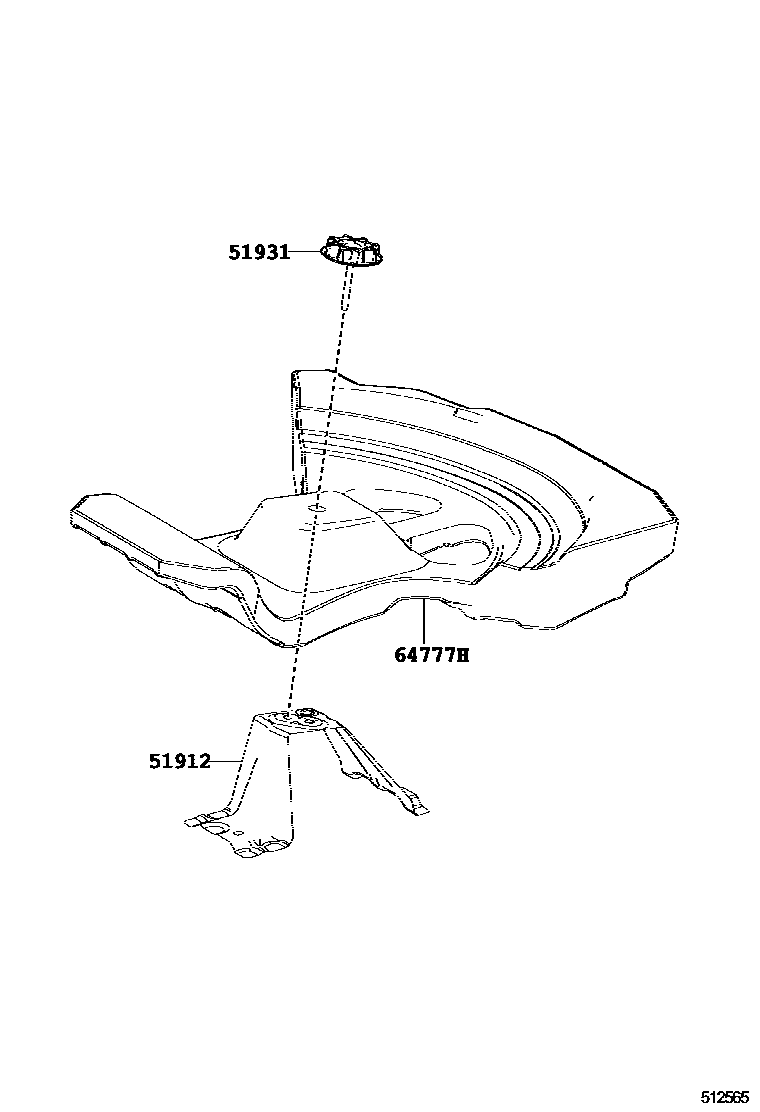

SPARE WHEEL CARRIER

51912BRACKET, SPARE WHEEL

main51912-42010iALA49..DCR201212-201510

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main51912-42010iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-GROUND TIRE

main51912-42010iAVA4#..RUS;ALA49,ASA44,ZSA4#..DCRE,DCRL,EFI201510

51931CARRIER, SPARE WHEEL, NO.1

main51931-33230iWWA42;ZSA44..RHD..X;ALA49,ASA44,ZSA4#..RUP..G;ALA49,AVA42,ZSA4#..(6F,A)..G..RUS201212-201810

SPARE TIRE-GROUND TIRE

main51931-47020iAVA42..EUR;ASA44..X..EUR;AVA44..G..EUR;ZSA44..LHD..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE201510-201810

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main51931-47020iAVA42..EUR;ASA44..X..EUR;AVA44..G..EUR;ZSA44..LHD..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE201510-201810

SPARE TIRE-165/80D17ST(TEMPORARY)

64777HCUSHION, SPARE WHEEL

main64777-0R140iALA49,ASA44,ZSA4#..RUP..G201811

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main64777-42050iASA44..X..EUR;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)..RUS201212-201810

SPARE TIRE-GROUND TIRE

main64777-42060iAVA4#,WWA42,ZSA44..EUR201510-201811

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main64777-42060iAVA4#,WWA42,ZSA44..EUR201510-201810

SPARE TIRE-165/80D17ST(TEMPORARY)

3 parts on this diagram · 1 diagram in section
