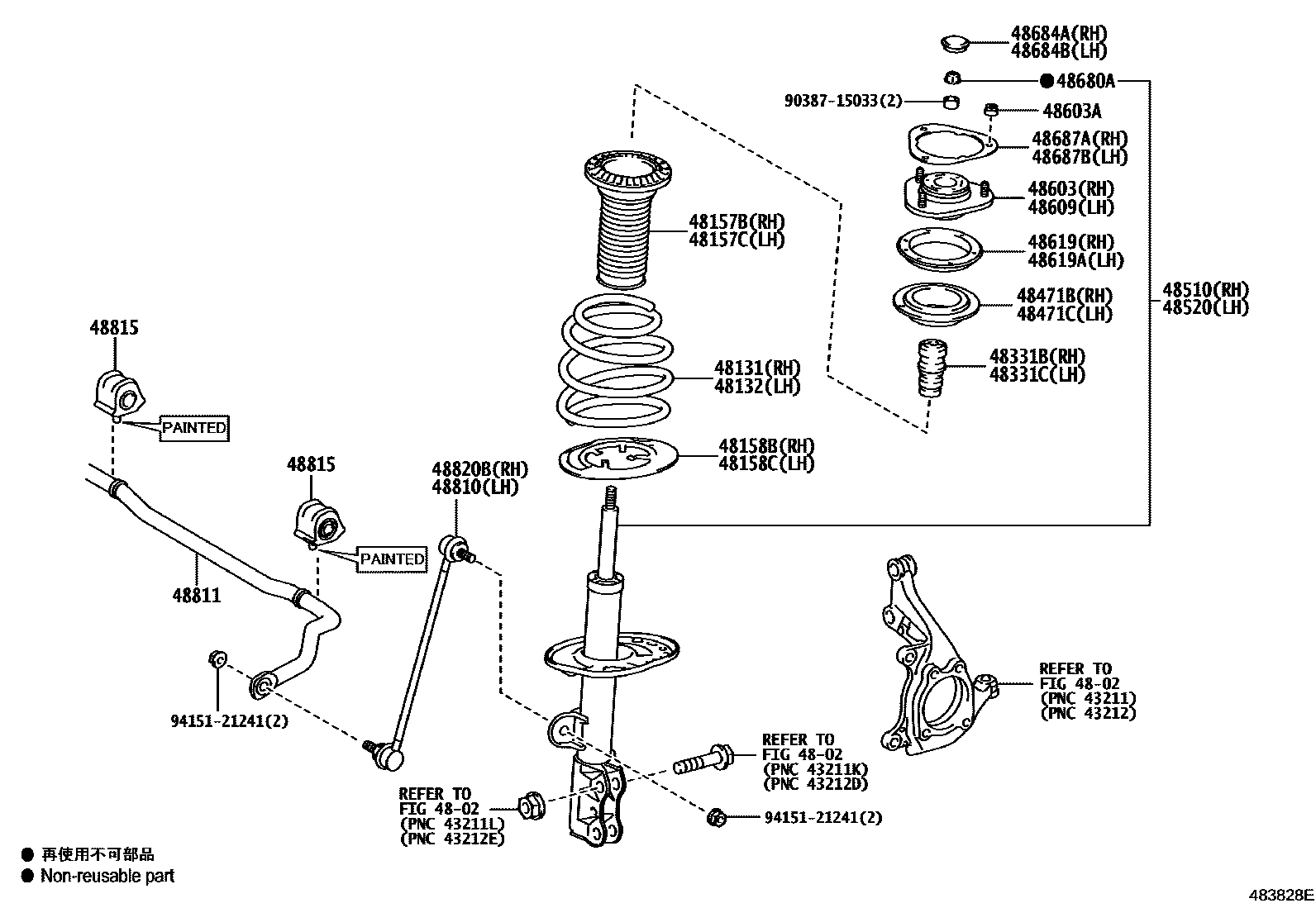

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2
UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2
ROUGH ROAD AREA SPEC.-SPEC.2
48132SPRING, FRONT COIL, LH
NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2
UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
*334&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2)
REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA)&ROUGH ROAD AREA SPEC.-SPEC.2
ROUGH ROAD AREA SPEC.-SPEC.2
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-78010iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201410-201810
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
main48331-42120iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201504-201810
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-42361
MARK 48510-42371
MARK 48510-42391
MARK 48510-42440
MARK 48510-42550
MARK 48510-42560
MARK 48510-42610
MARK 48510-42620
MARK 48510-42620,ROUGH ROAD AREA SPEC.-SPEC.2
MARK 48510-42660
MARK 48510-42670
main48510-80821iASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
MARK 48510-42680
main48510-80821iASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
MARK 48510-42680,ROUGH ROAD AREA SPEC.-SPEC.2
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-42361
MARK 48520-42371
MARK 48520-42391
MARK 48520-42440
MARK 48520-42550
MARK 48520-42560
MARK 48520-42610
MARK 48520-42620,ROUGH ROAD AREA SPEC.-SPEC.2
MARK 48520-42620
MARK 48520-42660
MARK 48520-42670
main48520-80497iASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
MARK 48520-42680,ROUGH ROAD AREA SPEC.-SPEC.2
main48520-80497iASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
MARK 48520-42680
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48687APLATE, FRONT SUSPENSION SUPPORT, RH
48687BPLATE, FRONT SUSPENSION SUPPORT, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
main48811-42071iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-42111iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810
LH
main48815-42121iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510-201810
RH
LH,PAINTED=WHITE
RH,PAINTED=WHITE
RH,PAINTED=ORANGE
RH
LH
LH,PAINTED=ORANGE
48820BLINK ASSY, FRONT STABILIZER, RH
9038715033
main90387-15033
9415121241
main94151-21241
29 parts on this diagram · 2 diagrams in section
