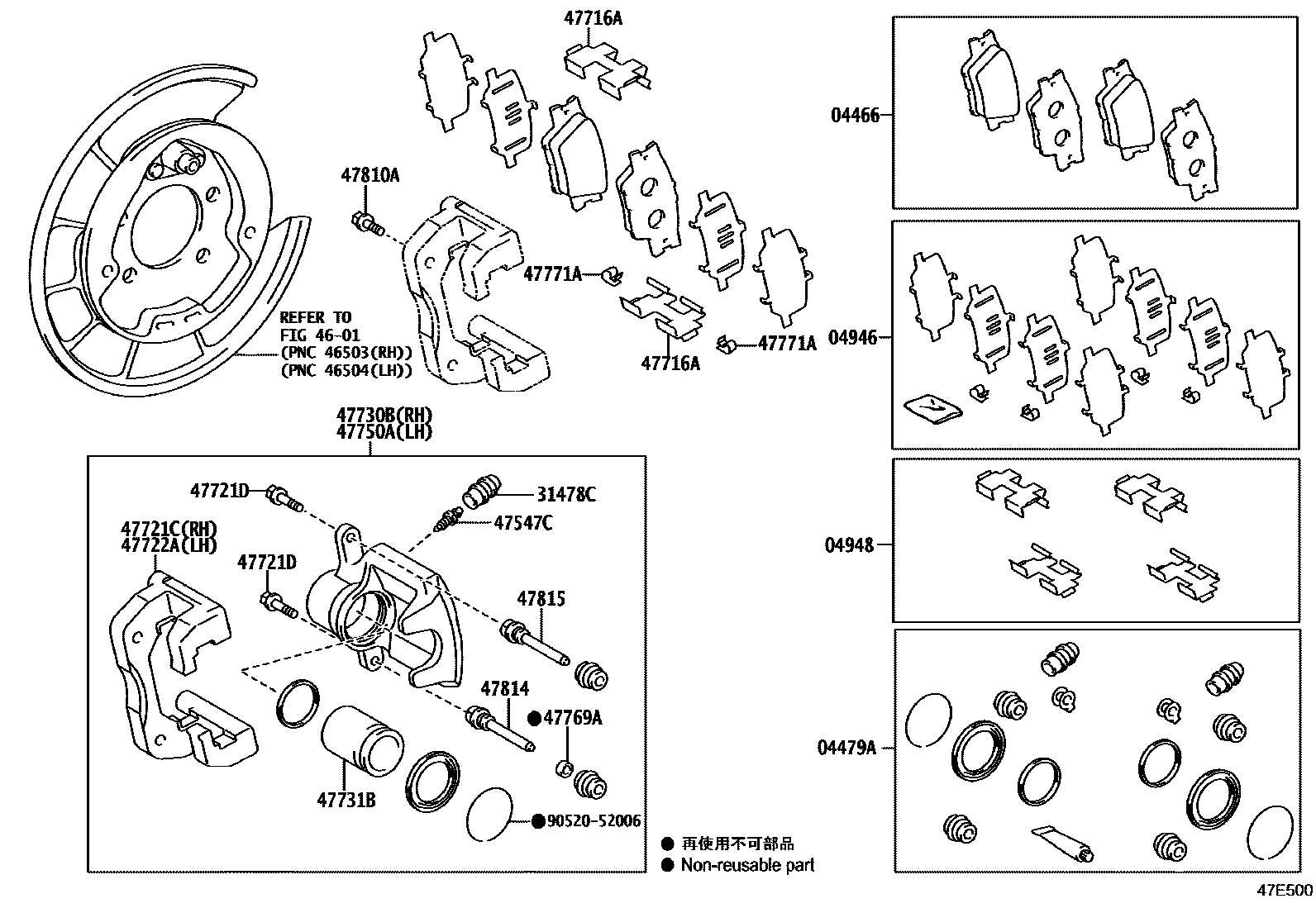

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42060iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

MARK ADVICS PS558

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33350iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33070iALA4#,ZSA44201505-201810

main04946-42030iALA4#,ZSA44201212-201310

main04946-42050iALA4#,ZSA44201310-201504

04948FITTING KIT, DISC BRAKE, REAR

main04948-42030iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201310-201810

main04948-75010iALA4#,ZSA44201212-201310

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iALA4#,ZSA44201212-201810

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iALA4#,ZSA44201212-201810

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-42080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201310-201810

main47816-75010iALA4#,ZSA44201212-201310

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42080iALA4#,ZSA44201212-201810

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42070iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-42080iALA4#,ZSA44201212-201810

47731BPISTON, REAR DISC BRAKE

main47831-33210iALA4#,ZSA44201212-201810

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42070iALA4#,ZSA44201212-201810

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iALA4#,ZSA44201212-201310

main47771-72010iALA4#,ZSA44201505-201810

main47871-47060iALA4#,ZSA44201310-201505

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12314iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iALA4#,ZSA44201212-201810

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iALA4#,ZSA44201212-201810

9052052006

main90520-52006

20 parts on this diagram · 1 diagram in section
