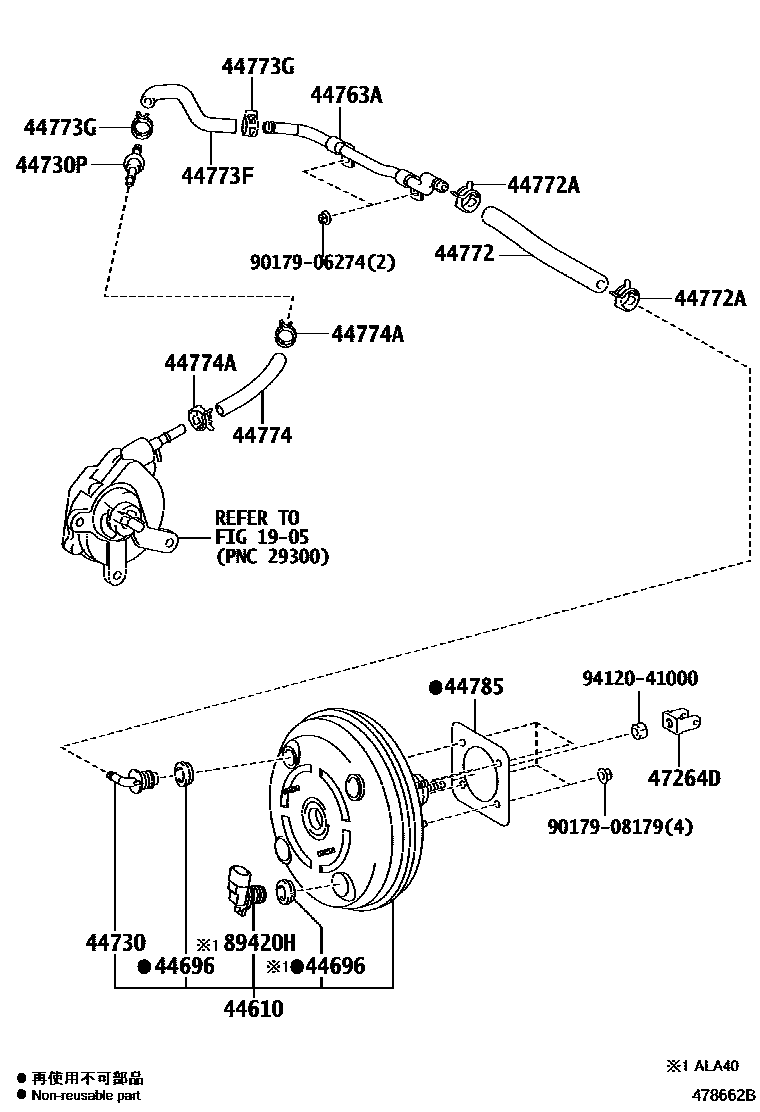

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-42380iASA44..X..EUR;ZSA42..JPP..X;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

main44610-42390iALA41,49,ZSA44..RHD201212-201510

main44610-42400iALA49..RUP;ALA49..(G,M)..DCRE201212-201810

main44610-42410iWWA42,ZSA44..RHD201212-201810

main44610-42420iWWA42,ZSA44..LHD..EUR201212-201810

44696GROMMET, CHECK VALVE

main90480-24439iALA40201212-201810

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iALA4#,ZSA44201212-201810

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-35010iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201212-201810

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42060iALA4#,ZSA44..LHD201212-201810

main44763-42080iWWA42..RHD201510-201805

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42070iALA4#,ZSA44..LHD201212-201810

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iALA4#,ZSA44..LHD201212-201810

44773FHOSE, UNION TO CHECK VALVE

main44773-42131iALA4#..RHD201212-201510

main44773-42170iALA4#..LHD201212-201810

main44773-42180iZSA44..RHD201212-201810

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iZSA44..RHD201212-201810

NO.2

main96133-41500iALA4#,ZSA44..RHD201212-201810

NO.1

main96133-41500iALA49..RUP;ALA49..(G,M)..DCRE201510

44774HOSE, UNION TO CONNECTOR TUBE

main44774-28320iZSA44201212-201810

main44774-42061iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201212-201810

main44774-42110iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

main44774-42170iWWA42..RHD201510-201805

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ALA49..JPP..X..DCRE;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201212-201810

44785GASKET, BRAKE BOOSTER

main44785-12040iALA4#,ZSA44201212-201810

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iALA4#,ZSA44201212-201810

89420HSENSOR ASSY, VACUUM

main89421-52020iALA40201212-201510

main89421-52020iWWA42,ZSA44..EUR201510-201810

ECO PACKAGE-WITHOUT

9017906274

main90179-06274

9017908179

main90179-08179

9412041000

main94120-41000

18 parts on this diagram · 7 diagrams in section
