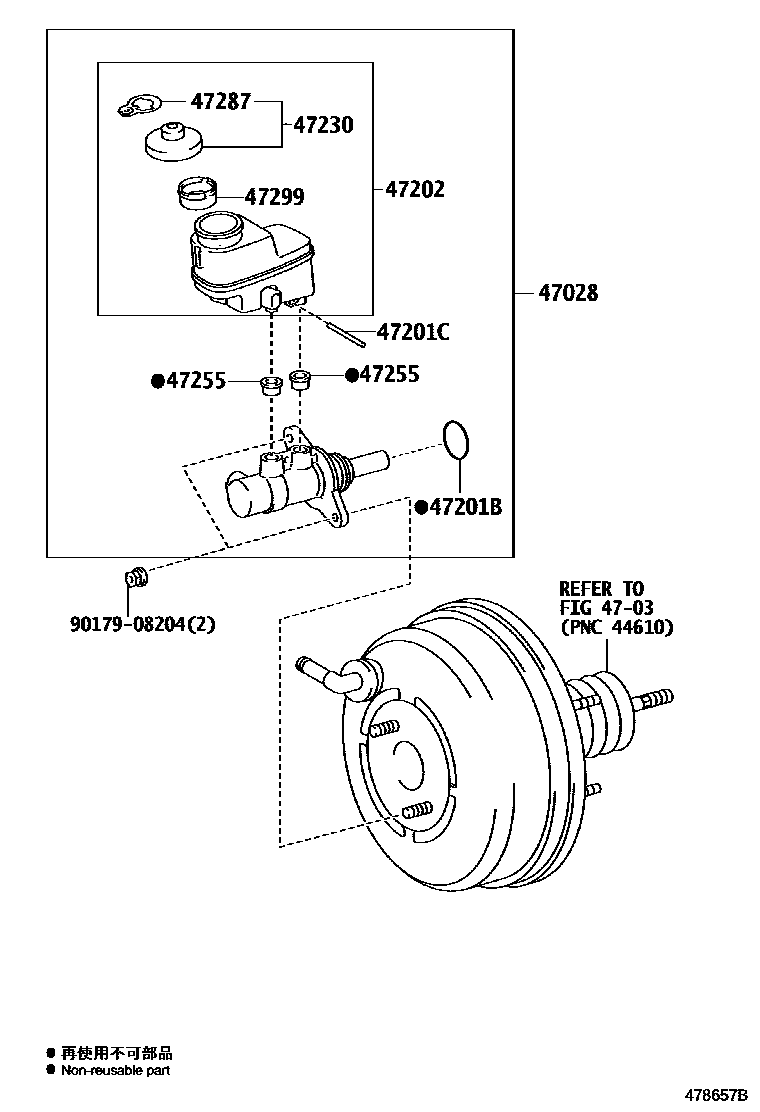

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42362iALA49,ZSA44..RHD..(6FC,A)201212-201810

main47201-42372iALA4#,ZSA44..RHD..6F201212-201805

main47201-42382iASA44..X..EUR;ASA44..JPP..(G,M);ALA49,ZSA4#..JPP..LHD..(ATM,CVT)201212-201810

main47201-42392iWWA42..LHD;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201810

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iALA4#,ZSA44201212-201810

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201212-201810

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ALA49,ZSA4#..JPP..LHD..(ATM,CVT)201212-201810

main47220-42110iZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X201212-201810

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iALA4#,ZSA44201212-201810

main47230-47090iAVA4#201612-201810

main47230-58010iAVA4#201510-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iALA4#,ZSA44201212-201810

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iALA4#,ZSA44201212-201810

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iALA4#,ZSA44201212-201810

9017908204

main90179-08204
