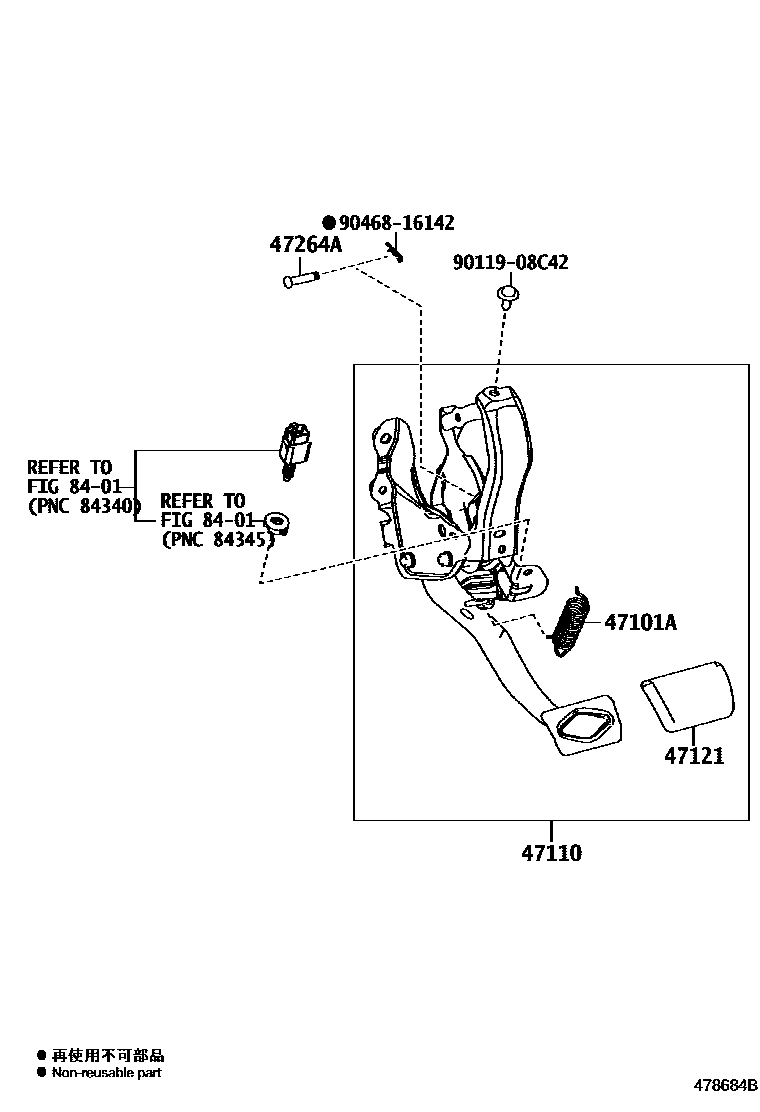

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-42030iALA4#,ZSA44..LHD201212-201405

sub47146-78010

sub47146-78020

main47146-78010iAVA4#,WWA42,ZSA44..RHD201405-201810

main47146-78020iALA4#,ZSA44..LHD201405-201810

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42210iALA49,ZSA44..RHD..(6FC,A)201212-201810

main47110-42220iWWA42..RHD201212-201805

main47110-42230iALA49,ZSA44..LHD..(6FC,A)201212-201810

main47110-42240iZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X201212-201810

main47110-48260iAVA4#..RHD201510-201810

main47110-78030iAVA4#..LHD201510-201810

47121PAD, BRAKE PEDAL

main31321-42010iALA4#,ZSA44..6F201212-201810

main47121-42010iALA49,ASA44,AVA4#,ZSA4#..ATM,CVT201212-201608

main47121-42020iAVA42..RUS;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B)201609-201810

47264APIN(FOR PUSH ROD)

main90249-08256iALA4#,ZSA44201212-201810

8401

9011908C42

main90119-08C42

9046816142

main90468-16142

7 parts on this diagram · 4 diagrams in section
