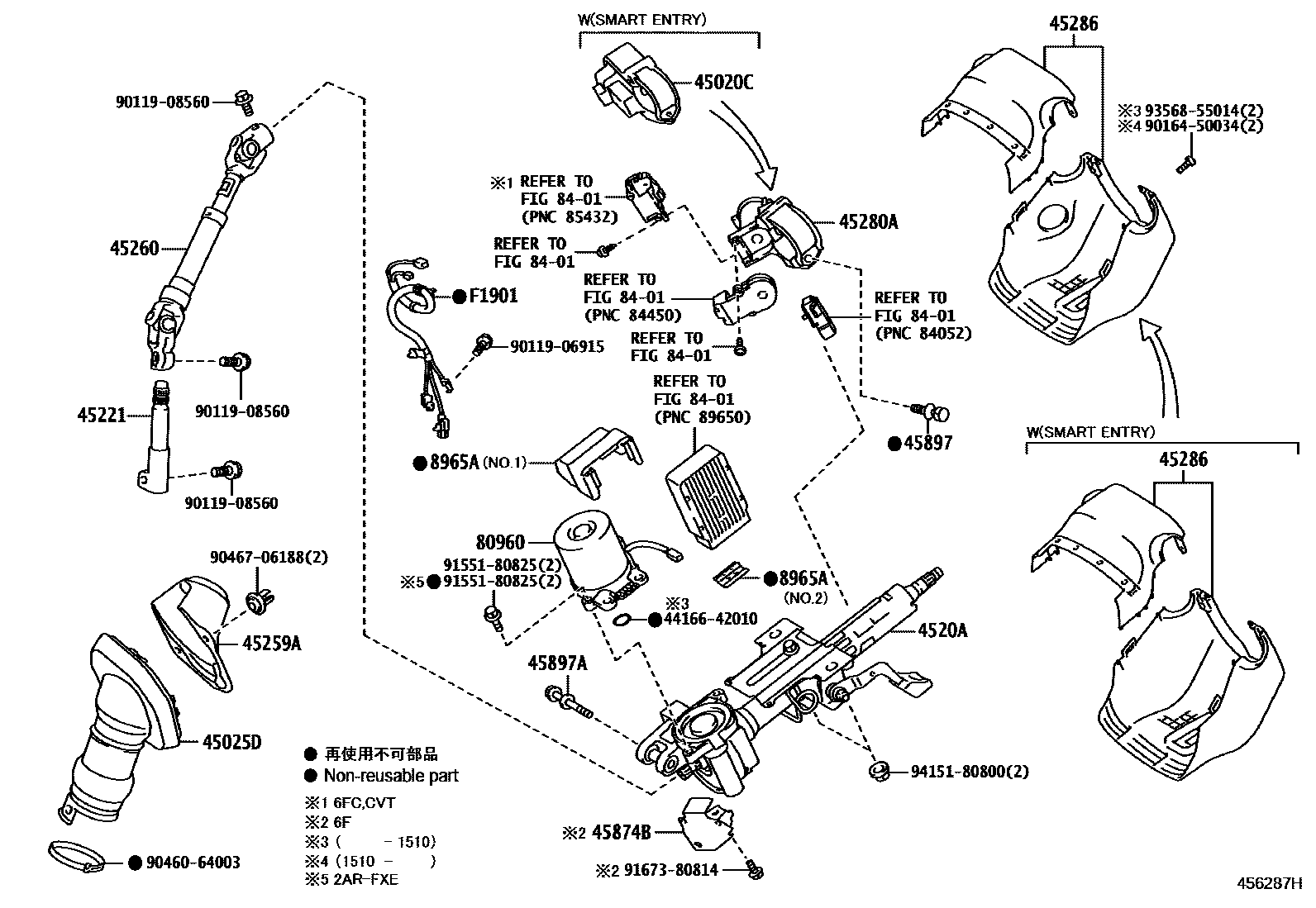

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33170iALA4#,ZSA44..LHD..G201212-201510

main45020-33170iAVA4#..LHD;ALA49,ASA44,WWA42,ZSA4#..LHD..G201510-201909

KEY PLATE-MASTER 2 FOR SMART

main45020-52200iWWA42,ZSA44..RHD..M201510-201810

KEY PLATE-MASTER 2 FOR SMART

main45020-52200iALA4#,ZSA44..RHD..G201212-201510

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42070iALA4#,ZSA44..RHD201212-201810

main45025-42080iALA4#,ZSA44..LHD201212-201810

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-42050iALA4#,ZSA44..RHD..G201212-201510

main4520A-42050iWWA42,ZSA44..RHD..M201510-201810

KEY PLATE-MASTER 2 FOR SMART

main4520A-42060iALA4#,ZSA44..RHD..G..(DCRE,DCRL,HTWVM)201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main4520A-42060iWWA42,ZSA44..RHD..(M,X)201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

main4520A-42070iALA4#,ZSA44..LHD..G201212-201510

main4520A-42070iAVA4#..LHD;ALA49,ASA44,WWA42,ZSA4#..LHD..G201510-201909

KEY PLATE-MASTER 2 FOR SMART

main4520A-42080iALA4#,ZSA44..LHD..G201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main4520A-42080iALA49,ASA44,WWA42,ZSA4#..LHD..(M,X)201510-201909

45221SHAFT, STEERING INTERMEDIATE

main45221-42090iALA4#,ZSA44201212-201810

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-42010iALA4#,ZSA44..RHD201212-201810

main45259-42020iASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..201212-201810

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42100iAVA4#,WWA42,ZSA44..RHD201212-201810

main45260-42110iWWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42170iZSA44..RHD..(M,X)201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

main45280-42170iALA49,ZSA44..RHD..(6FC,A)..(M,X)201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main45280-42180iALA4#,ZSA44..RHD..6F..(M,X)201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main45280-42180iWWA42..RHD..G201510-201805

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

main45280-42190iALA49,ZSA44..LHD..(6FC,A)..G201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main45280-42190iASA44..X..EUR;ASA44..JPP..M;ALA49,ZSA4#..JPP..LHD..(ATM,CVT)..(M,X)201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

main45280-42190iASA44..X..RUS;ASA44..RUP..M;ALA49,ZSA4#..RUP..(6FC,B)..(M,X)201510

main45280-42200iWWA42..LHD..(M,X);ZSA44..6F..X..RUS;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ALA49,ZSA42..JPP..6F..M201510

main45280-42200iZSA44..6F..(M,X)..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

main45280-42200iALA4#,ZSA44..LHD..6F..G201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON)

45286COVER, STEERING COLUMN

main45286-42920-C0iAVA4#..M201510-201810

KEY PLATE-MASTER 2 FOR SMART,BLACK,TRIM2#

main45286-42920-C0iALA4#,ZSA44..G201212-201810

BLACK,TRIM1#,2#,3#,4#

main45286-42920-C0iAVA4#..M201510-201810

BLACK,TRIM2#

main45286-42921-C0iASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTW201212-201810

BLACK,TRIM2#

main45286-42921-C0iASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTW201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS,BLACK,TRIM2#

main45286-42921-C0iALA4#,ZSA44..X201212-201510

BLACK,TRIM1#,2#,3#,4#

main45286-42921-C0iALA4#,ZSA44..X201212-201510

WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK,TRIM1#,2#,3#,4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-42070iWWA42..RHD201212-201805

45897BOLT, STEERING LOCK SET

main45897-12020iALA4#,ZSA44..RHD..G..(DCRE,DCRL,HTWVM)201212-201311

WIRELESS DOOR LOCK-WITH(2 BUTTON)

main45897-12020iALA4#,ZSA44..RHD..G201212-201510

main45897-12020iAVA4#..RHD;WWA42,ZSA44..RHD..G201510-201810

KEY PLATE-MASTER 2 FOR SMART

main45897-12050iWWA42,ZSA44..RHD..G201510-201810

KEY PLATE-JACK KNIFE KEY 2 WIRELESS

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iALA4#,ZSA44201212-201810

80960MOTOR ASSY, POWER STEERING

main80960-42050iALA49,ASA44,AVA4#,WWA42,ZSA4#..LHD201212-201908

sub80960-42051

main80960-42060iALA4#,ZSA44..RHD201212-201810

sub80960-42061

8401

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-33030iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

NO.1

main8965A-33040iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

NO.2

F1901WIRE SUB-ASSY, COMPUTER

mainF190142011iWWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

mainF190142021iALA4#,ZSA44..RHD201212-201310

subF1901-78040

mainF190178040iAVA4#,WWA42,ZSA44..RHD201311-201810

4416642010RING, SEAL, NO.2

main44166-42010

9011906915

main90119-06915

9011908560

main90119-08560

9016450034

main90164-50034

9046064003

main90460-64003

9046706188

main90467-06188

9155180825

main91551-80825

9167380814

main91673-80814

9356855014

main93568-55014

9415180800

main94151-80800

25 parts on this diagram · 2 diagrams in section
