TRANSAXLE ASSY(HEV OR BEV OR FCEV)

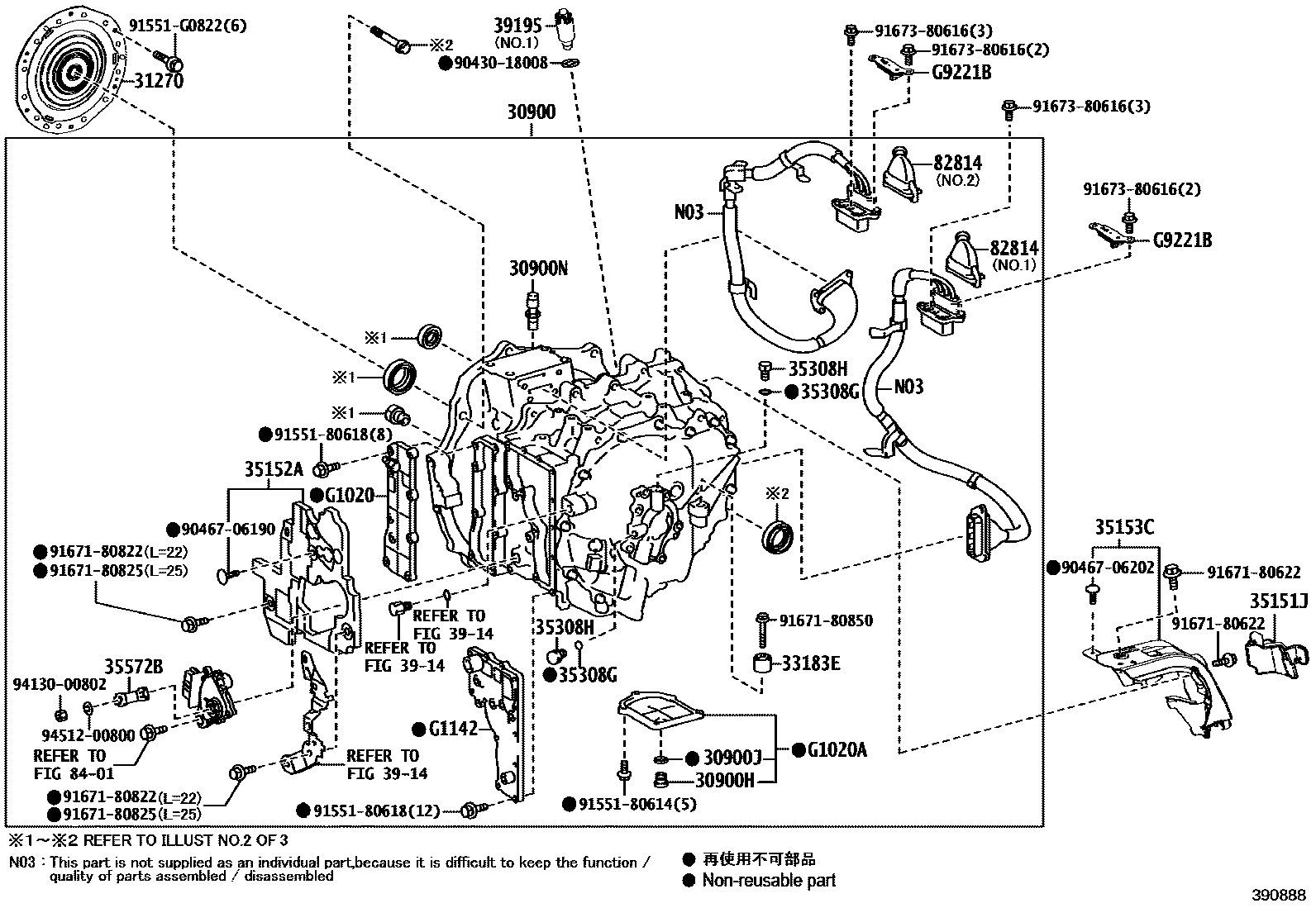

Parts diagram
30900TRANSAXLE ASSY, HYBRID VEHICLE
main30900-48121i201510-201810
main30900-78011i201510-201810
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
main90341-18016i201510-201810
30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
main90430-18008i201510-201810
30900NPLUG, BREATHER(FOR TRANSAXLE)
main90930-03201i201510-201810
31270DAMPER ASSY, TRANSMISSION INPUT
main31270-30010i201510-201810
33183EDAMPER, DYNAMIC
main33183-48010i201510-201810
35151JCOVER, AUTOMATIC TRANSMISSION CASE
main35151-33090i201510-201810
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
main35151-33100i201510-201810
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
main35153-48020i201510-201810
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
main90301-06196i201510-201810
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
main90341-08001i201510-201810
35572BLEVER, TRANSMISSION, OUTER
main35572-33030i201510-201810
3914
39195DAMPER, HV TRANSAXLE MASS
main39195-28011i201510-201810
NO.2
main39195-33020i201510-201810
NO.1
82814BOOT, WIRE HARNESS
main82814-42010i201804-201810
NO.1
main82814-42020i201804-201810
NO.2
main82814-48020i201510-201804
NO.1
sub82814-42020
main82814-48030i201510-201804
NO.2
sub82814-42010
8401
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
mainG102033010i201510-201810
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
mainG102048030i201510-201810
G1142COVER, MOTOR WATERJACET
mainG102048040i201510-201810
G9221BCOVER, INVERTER, UPRPER
mainG922133010i201510-201810
9043018008
main90430-18008
9046706190
main90467-06190
9046706202
main90467-06202
9155180614
main91551-80614
9155180618
main91551-80618
91551G0822
main91551-G0822
9167180622
main91671-80622
9167180822
main91671-80822
9167180825
main91671-80825
9167180850
main91671-80850
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800

33 parts on this diagram · 3 diagrams in section
