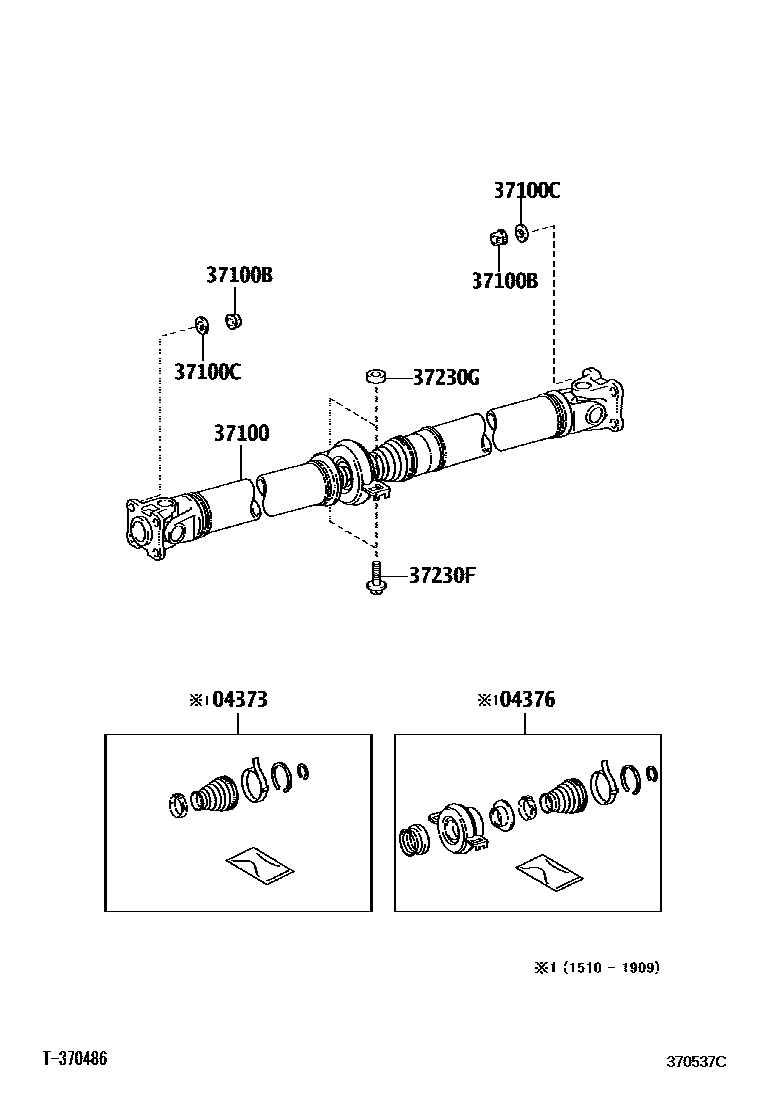

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iALA49,ASA44,ZSA44201212-201909

04376BEARING KIT, CENTER SUPPORT

main04376-52010iALA41,49,ZSA44201212-201909

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0R010iASA44..X..EUR;ZSA44..JPP..B..X;ALA49..JPP..X..DCRE;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,ZSA44..JPP..(DCRL,HTWVM)201701-201810

(L)

main37100-42090iALA49..M..DCRE;ALA49,ASA44,ZSA44..RUP;ASA44,ZSA44..JPP..(6F,6FC)..X..RUS201701-201810

(J)

main37100-42090iALA41,49,ZSA44201212-201701

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iALA41,49,ZSA44201212-201810

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201212-201810

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201212-201810

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201212-201810

T=4.5

main90201-10083iALA41,49,ZSA44201212-201810

T=6.5

main90201-10123iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201212-201810

T=2.0

7 parts on this diagram · 1 diagram in section
