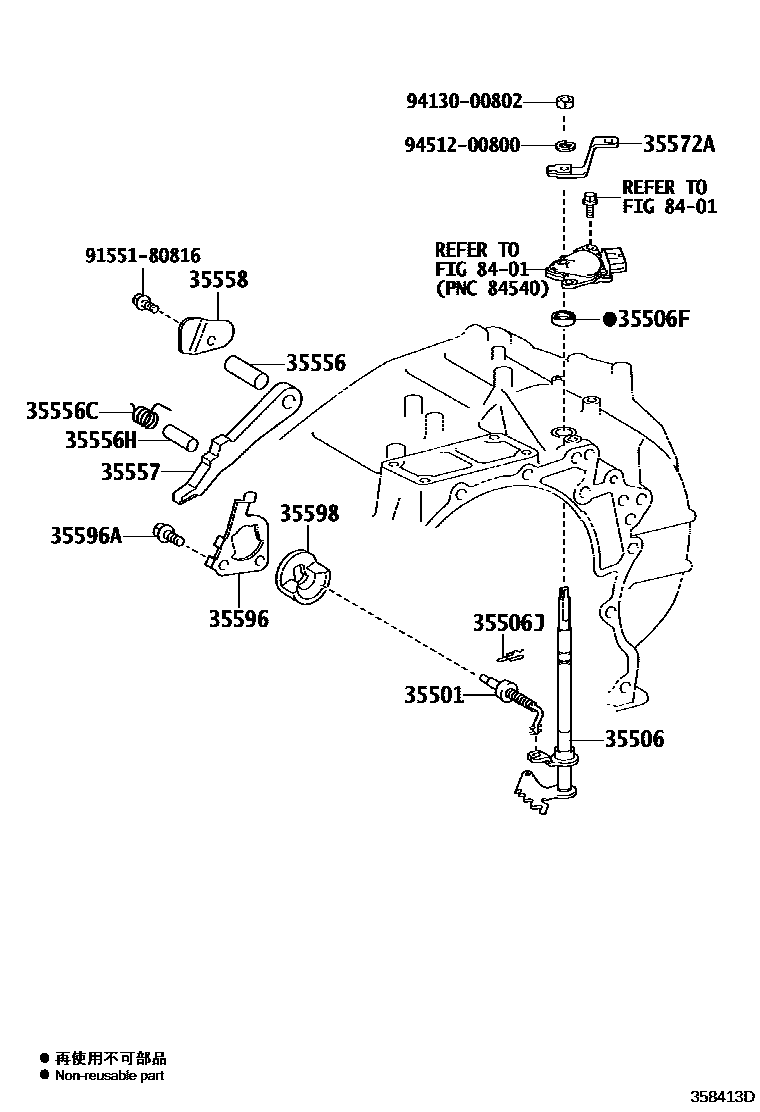

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U760F 0002 1U660F

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iALA49..6FC201212-201810

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASA44..JPP201709-201810

*285

main35506-33020iALA49..6FC201212-201810

main35506-73011iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC201212-201810

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iALA49..6FC201212-201810

35556SHAFT, PARKING LOCK PAWL

main35556-33010iALA49..JPP..DCRL201510-201811

*284

main35556-33010iALA49..6FC201212-201510

main35556-33020iASA44..RUP201709-201810

*285

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21007iALA49..RUP..DCRL201212-201810

main90508-21008iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35556HSHAFT, PARKING LOCK PAWL

main35556-33030iASA44..JPP201709-201810

*285

main35556-63010iALA49..6FC201212-201510

main35556-63010iALA49..JPP..DCRL201510-201811

*284

35557PAWL, PARKING LOCK

main35557-33021iALA49..6FC201212-201810

main35557-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35558CLAMP, PAWL SHAFT

main35558-33010iASA44..RUP..(G,M)201510-201811

*284

main35558-33010iALA49..6FC201212-201510

main35558-33020iASA44..RUP201709-201810

*285

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iALA49..6FC201212-201810

35596PLATE, PAWL STOPPER

main35596-33010iALA49..RUP..DCRL201212-201810

main35596-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iALA49..6FC201212-201810

8401

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
