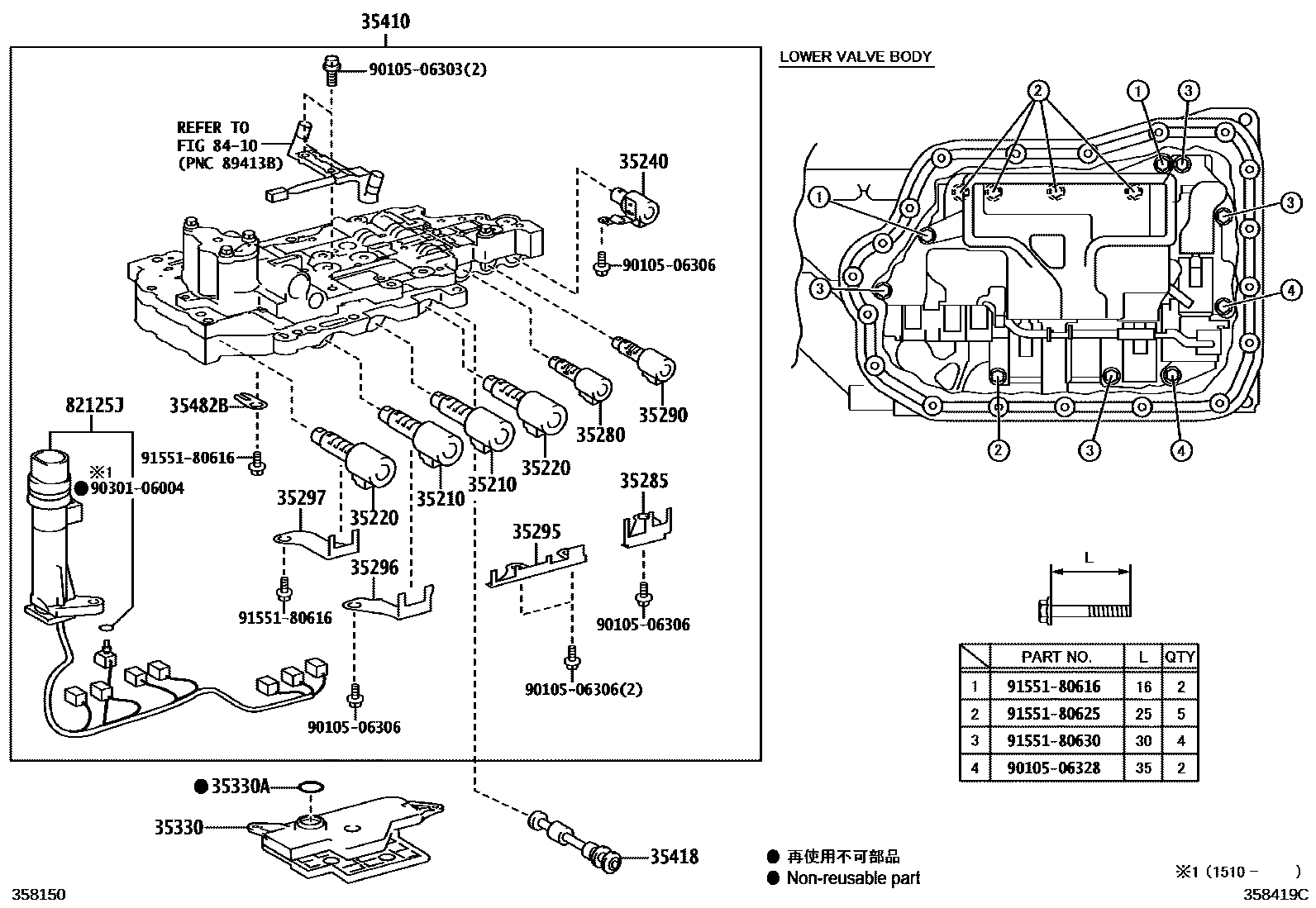

VALVE BODY & OIL STRAINER (ATM)

0001 1U760F 0002 1U660F 0003 1U660F,U760F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iALA49..6FC201212-201810

main35220-48020iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iALA49..6FC201212-201810

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASA44..RUP;ASA44..JPP..X..RUS201510-201810

main35280-52040iALA49..JPP..DCRL201212-201810

35285PLATE, SOLENOID LOCK

main35285-33070iASA44..RUP201709-201810

*285

main35285-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050iASA44..RUP201709-201810

*285

main35295-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050iASA44..JPP201709-201810

*285

main35296-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201811

*284

35297PLATE, SOLENOID LOCK, NO.4

main35297-33020iASA44..JPP201709-201810

*285

main35297-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201811

*284

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iALA49..6FC201212-201308

sub35330-48020

main35330-48020iALA49..JPP..DCRL201308-201810

main35330-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35330ARING, O (FOR OIL STRAINER)

main90301-27015iALA49..6FC201212-201810

35410BODY ASSY, TRANSMISSION VALVE

main35410-33240iALA49..JPP..DCRL201212-201810

main35410-33250iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

sub35410-33260

main35410-33260iASA44..RUP201709-201810

*285

35418VALVE, MANUAL

main35418-73010iALA49..6FC201212-201810

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

82125JWIRE, TRANSMISSION

main82125-33150iALA49..DCRL201212-201807

sub82125-33151

main82125-33151iALA49..RUP..DCRL201808-201810

main82125-73010iASA44201510-201807

sub82125-73011

main82125-73011iASA44..RUP201808-201810

8410

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

23 parts on this diagram · 3 diagrams in section
