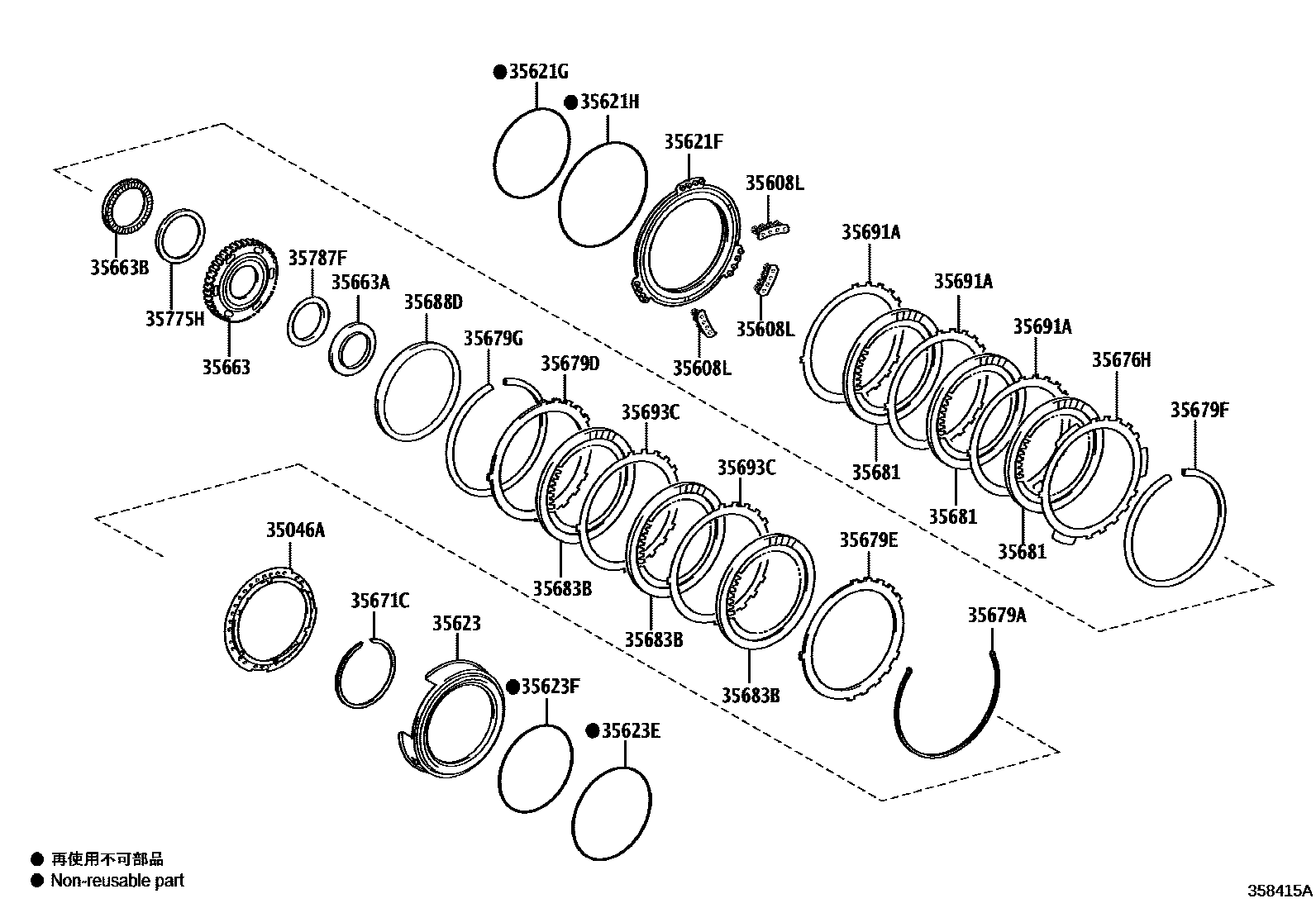

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U760F 0002 1U660F

35046ASPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3

main35046-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-33030iALA49..RUP..DCRL201212-201810

main35608-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35621FPISTON, BRAKE, NO.1

main35621-33010iALA49..6FC201212-201310

sub35621-48010

main35621-33030iASA44..JPP201709-201810

*285

main35621-48010iALA49..6FC201310-201810

main35621-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

35621GRING, O (FOR BRAKE PISTON INNER)

main90301-99190iALA49..6FC201212-201810

35621HRING, O (FOR BRAKE PISTON OUTER)

main90301-99189iALA49..6FC201212-201810

35623PISTON, BRAKE, NO.3

main35623-33060iALA49..6FC201212-201310

sub35623-48030

main35623-33090iASA44..RUP201709-201810

*285

main35623-48030iALA49..RUP..DCRL201310-201810

main35623-73011iASA44..RUP;ASA44..JPP..X..RUS201510-201811

*284

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99190iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35623FRING, O, NO.2 (FOR BRAKE PISTON)

main90301-99194iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35663HUB, BRAKE NO.3

main35663-33020iALA49..6FC201212-201810

main35663-33030iASA44..RUP201709-201810

*285

main35663-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

sub35663-33030

35663ABEARING, THRUST NEEDLE ROLLER, NO.1

main90374-60001iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

main90374-62006iALA49..6FC201212-201310

sub90374-62009

main90374-62009iALA49..JPP..DCRL201310-201810

35663BBEARING, THRUST NEEDLE ROLLER, NO.2

main90374-62008iALA49..JPP..DCRL201310-201810

main90374-62010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

main90374-64002iALA49..6FC201212-201310

sub90374-62008

35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99103iASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC201212-201810

35676HFLANGE, BRAKE, NO.1

main35676-33020iALA49..6FC201212-201810

T=3.0,MARK 30

main35676-33030iALA49..6FC201212-201810

T=3.1,MARK 31

main35676-33040iALA49..JPP..DCRL201212-201810

T=3.2,MARK 32

main35676-33050iALA49..JPP..DCRL201212-201810

T=3.3,MARK 33

main35676-33060iALA49..JPP..DCRL201212-201810

T=3.4,MARK 34

main35676-33070iALA49..JPP..DCRL201212-201810

T=3.5,MARK 35

main35676-33080iALA49..JPP..DCRL201310-201810

T=3.6,MARK 36

main35676-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

T=3.0,MARK 30

main35676-73020iASA44..RUP;ASA44..JPP..X..RUS201510-201810

T=3.1,MARK 31

main35676-73030iASA44..RUP;ASA44..JPP..X..RUS201510-201810

T=3.2,MARK 32

main35676-73040iASA44..RUP;ASA44..JPP..X..RUS201510-201810

T=3.3,MARK 33

main35676-73050iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

T=3.4,MARK 34

main35676-73060iASA44..RUP;ASA44..JPP..X..RUS201510-201810

T=3.5,MARK 35

main35676-73070iASA44..JPP201709-201810

T=3.6,MARK 36

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90521-99136iALA49..6FC201212-201810

35679DFRANGE, BRAKE, NO.2

main35679-33080iASA44..RUP201709-201810

*285

main35679-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201811

*284

main35679-73010iALA49..6FC201212-201510

35679EFRANGE, BRAKE, NO.3

main35679-73020iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

T=3.8,MARK 38

main35679-73030iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

T=3.9,MARK 39

main35679-73040iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

T=4.0,MARK 40

main35679-73050iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

T=4.1,MARK 41

main35679-73060iALA49..6FC201212-201810

T=4.2,MARK 42

main35679-73070iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)201212-201810

T=4.3,MARK 43

main35679-73080iALA49..RUP..DCRL201310-201810

T=4.4,MARK 44

main35679-73090iALA49..RUP..DCRL201310-201810

T=4.5,MARK 45

main35679-73100iALA49..JPP..DCRL201605-201810

T=3.7,MARK 37

35679FRING, SNAP(FOR BRAKE FLANGE)

main90520-99116iALA49..JPP..DCRL201212-201810

main90520-99144iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35679GRING, SNAP (FOR RAKE FLANGE NO.3)

main90520-99112iALA49..6FC201212-201810

main90520-99136iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35681DISC, BRAKE, NO.1

main35681-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35683BDISC, BRAKE, NO.3

main35683-33030iALA49..6FC201212-201810

main35683-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35688DSTOPPER, BRAKE SNAP RING

main35688-33010iALA49..6FC201212-201804

sub35688-45010

main35688-45010iALA49..JPP..DCRL201804-201810

main35688-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35691APLATE, BRAKE, NO.1

main35691-33010iALA49..6FC201212-201810

main35691-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

35693CPLATE, BRAKE, NO.3

main35693-33010iALA49..JPP..DCRL201212-201810

main35693-73010iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

35775HRACE, THRUST BEARING, NO.5

main35775-33010iALA49..6FC201212-201310

sub35775-48020

main35775-33020iASA44..RUP;ASA44..JPP..X..RUS201510-201810

main35775-48020iALA49..JPP..DCRL201310-201810

35787FRACE, THRUST BEARING, NO.2

main35787-33010iALA49..6FC201212-201310

sub35787-48020

main35787-48020iALA49..6FC201310-201408

sub35787-48021

main35787-48021iALA49..JPP..DCRL201409-201810

main35787-73010iASA44..RUP;ASA44..JPP..X..RUS201510-201810

25 parts on this diagram · 2 diagrams in section
