TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

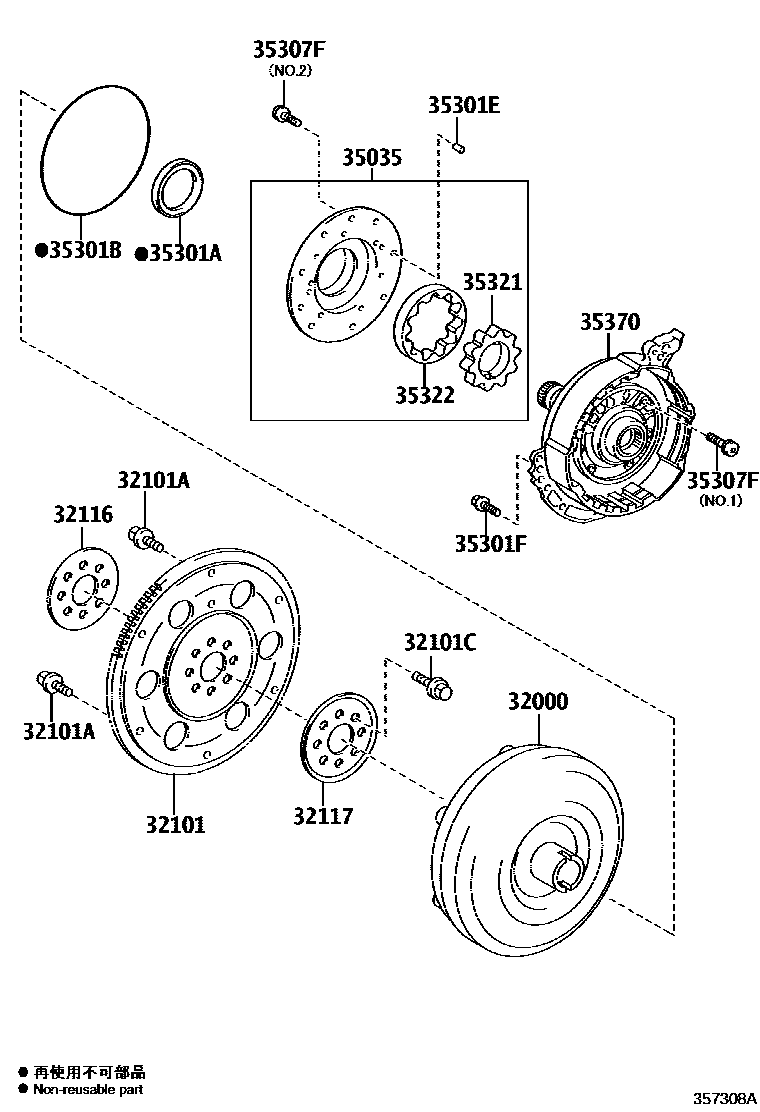

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-20351i201212-201810
main32000-33143i201610-201810
*285
main32000-73013i201510-201811
*284
sub32000-33143
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06060i201510-201810
(L)
main32101-20130i201212-201810
main32101-73010i201510-201810
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90105-10567i201212-201810
*10-1.25PX10.6-8.3,BLACK
main90105-10568i201212-201810
*10-1.25PX10.6-8.3,SILVER WHITE
main90109-09001i201510-201810
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201510-201810
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i201212-201810
*10-1.25PX18-13
main90105-12384i201510-201810
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i201510-201810
main32116-20070i201212-201810
32117SPACER, DRIVE PLATE, REAR
main32117-06010i201510-201810
(L)
main32117-20060i201510-201810
(J)
main32117-20080i201212-201810
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-33031i201212-201810
main35035-33043i201709-201810
*285
main35035-73013i201510-201811
*284
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i201212-201810
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-33010i201212-201810
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040i201212-201810
main90250-08052i201510-201810
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main91551-80835i201212-201810
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90148-60064i201212-201810
NO.1
main90148-60065i201212-201810
NO.2
main90148-60067i201510-201810
NO.1
main90148-60068i201510-201810
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-33111i201212-201810
T=11.567,MARK 1
main35321-33121i201212-201810
T=11.567,MARK 2
main35321-33131i201212-201810
T=11.567,MARK 3
main35321-33141i201212-201810
T=11.567,MARK 4
main35321-33151i201212-201810
T=11.567,MARK 5
main35321-73010i201510-201810
T=11.567,MARK 1
main35321-73020i201510-201810
T=11.567,MARK 2
main35321-73030i201510-201810
T=11.567,MARK 3
main35321-73040i201510-201810
T=11.567,MARK 4
main35321-73050i201510-201810
T=11.567,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-33110i201212-201810
T=11.567,MARK 1
main35322-33120i201212-201810
T=11.567,MARK 2
main35322-33130i201212-201810
T=11.567,MARK 3
main35322-33140i201212-201810
T=11.567,MARK 4
main35322-33150i201212-201810
T=11.567,MARK 5
main35322-73010i201510-201810
T=11.567,MARK 1
main35322-73020i201510-201810
T=11.567,MARK 2
main35322-73030i201510-201810
T=11.567,MARK 3
main35322-73040i201510-201810
T=11.567,MARK 4
main35322-73050i201510-201810
T=11.567,MARK 5
35370SHAFT ASSY, STATOR
main35370-33031i201212-201810
main35370-33043i201709-201810
*285
main35370-73013i201510-201811
*284
