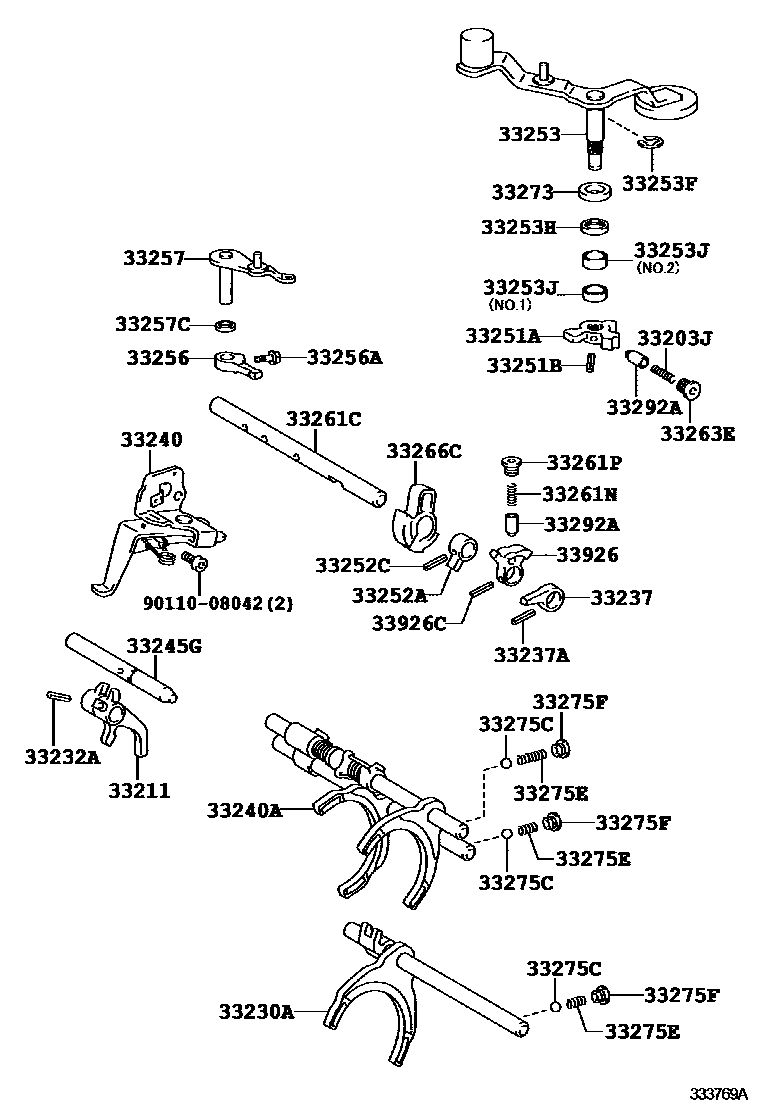

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1EB61,EB61F 0002 1EB64,EB64F 0003 1EA64

33203JSPRING(FOR SHIFT LEVER SHAFT BALL)

main90501-12221iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

33211FORK, REVERSE SHIFT

main33211-20030iALA4#..6F201212-201810

main33211-20050iZSA44..6F201212-201810

33230ASHAFT ASSY, GEAR SHIFT FORK, NO.1

main33230-20060iZSA44..6F201212-201810

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05001iZSA44..6F201212-201810

33237HEAD, RELEASE

main33237-20010iZSA44..6F201212-201810

33237APIN, SLOTTED SPRING (FOR RELEASE HEAD)

main90254-05001iZSA44..6F201212-201810

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-20050iZSA44..6F201212-201810

33240ASHAFT ASSY, GEAR SHIFT FORK, NO.2

main33240-20080iZSA44..6F201212-201810

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-20030iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

33251ALEVER, SHIFT, INNER NO.1

main33251-12110iALA40201212-201405

main33251-20110iALA41,49..6F201212-201409

main33251-20111iALA49..RUP..DCRE;ALA49..(G,M)..DCRE201409-201810

main33251-20130iZSA44..6F201212-201507

main33251-42020iZSA44..6F201507-201810

main33251-64020iALA40201405-201805

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05011iZSA44..6F201212-201810

L=28.0

33252ALEVER, SHIFT, INNER NO.2

main33252-20070iZSA44..6F201212-201810

33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)

main90254-05001iZSA44..6F201212-201810

33253LEVER, SHIFT OUTER, NO.1

main33253-20081iZSA44..6F201212-201810

33253FRING, E(FOR SHIFT OUTER LEVER)

main90523-15003iZSA44..6F201212-201810

33253HSEAL, OIL(FOR SHIFT OUTER LEVER)

main90310-18003iZSA44..6F201212-201810

33253JBUSH(FOR SHIFT OUTER LEVER)

main90384-14008iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

NO.1

main90384-18018iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

NO.2

33256LEVER, SELECT INNER

main33256-20040iZSA44..6F201212-201810

33256ABOLT, SET (FOR SELECT INNER LEVER)

main90105-08079iZSA44..6F201212-201810

33257LEVER, SELECT OUTER

main33257-20051iZSA44..6F201212-201810

33257CSEAL, OIL(FOR OUTER SELECT LEVER)

main90310-15005iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

33261CSHAFT, SHIFT & SELECT LEVER

main33261-12190iWWA42201510-201805

main33261-20150iZSA44..6F201212-201810

main33261-42030iALA4#..6F201212-201810

33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)

main90501-11107iZSA44..6F201212-201810

33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)

main90341-16013iZSA44..6F201212-201810

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90341-16013iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

33266CPLATE, SHIFT INTERLOCK

main33266-20050iALA40201212-201404

sub33266-64010

main33266-20070iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

main33266-64010iALA49..JPP..X..DCRE201404-201810

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90560-18017iZSA44..6F201212-201810

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12041iALA4#..6F201212-201810

OD=10.7

33275CBALL (FOR SHIFT DETENT)

main90360-10003iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-12173iALA4#..6F201212-201810

main90501-13087iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-12004iALA49..JPP..X..DCRE201212-201810

33292APIN, LOCK BALL

main33292-20010iZSA44..6F201212-201810

33926LEVER, SHIFT INNER, FRONT

main33926-20020iZSA44..6F201212-201409

sub33926-20021

main33926-20021iZSA44..6F201409-201810

33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)

main90254-05001iZSA44..6F201212-201810

9011008042

main90110-08042

35 parts on this diagram · 3 diagrams in section
