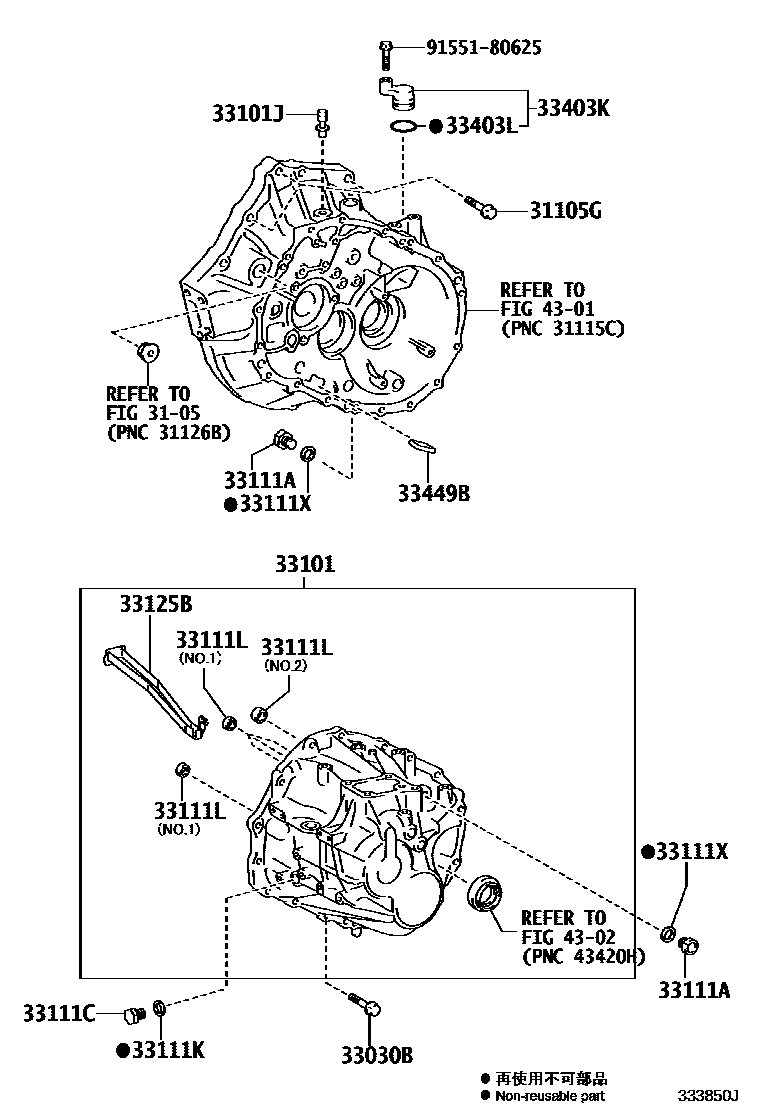

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1EB61,EB61F 0002 1EA64,EA64F 0003 1EA64

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0133iWWA42201510-201805

*8-1.25PX40-22,(L),NO.2

main90107-12004iWWA42201510-201805

*12-1.75PX100-40,(J),NO.1

main90107-12005iWWA42201510-201805

*12-1.75PX80-30,(J),NO.3

main90107-WX001iWWA42201510-201805

*12-1.75PX100-40,(L),NO.1

main90107-WX002iWWA42201510-201805

*12-1.75PX80-30,(L),NO.3

main90119-12042iALA4#..6F201212-201510

*12-1.25PX75-30

main90119-12042iALA49..RUP..DCRE;ALA49..(G,M)..DCRE201510-201810

*12-1.25PX75-30,NO.1

main90119-12252iALA4#..6F201212-201510

*12-1.25PX60-30

main90119-12252iALA49..JPP..X..DCRE201510-201810

*12-1.25PX60-30,NO.2

main91512-61045iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

*10-1.25PX45-30

main91512-61060iALA4#..6F201212-201510

*10-1.25PX60-30

main91512-61060iALA49..JPP..X..DCRE201510-201810

*10-1.25PX60-30,NO.3

main91512-61065iALA49..RUP..DCRE;ALA49..(G,M)..DCRE201510-201810

*10-1.25PX65-30,NO.4

main91512-61065iALA4#..6F201212-201510

*10-1.25PX65-30

main91551-80840iWWA42201510-201805

*8-1.25PX40-22,(J),NO.2

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iALA49..JPP..X..DCRE201212-201810

*8-1.25PX45-27.5

main91551-10840iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

*8-1.25PX40-22

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-20100iZSA44..6F201212-201507

main33101-42050iZSA44..6F201507-201810

33101JPLUG, BREATHER

main90930-03085iZSA44..6F201212-201810

33111CASE, MANUAL TRANSMISSION

main33111-42060iALA4#..6F201212-201810

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

main90341-42002iALA49..JPP..X..DCRE201212-201810

33111CPLUG(FOR TRANSMISSION CASE)

main90341-12004iWWA42;ALA49..RUP..DCRE;ALA49..(G,M)..DCRE201212-201810

OD=18

main90341-18033iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

OD=24

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

33111LBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90384-14008iZSA44..6F..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS201212-201810

NO.1

main90384-16005iZSA44..6F201212-201810

NO.2

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-20020iZSA44..6F201212-201810

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iALA4#,ZSA44..6F201212-201810

33403LRING, O

main96711-24018iALA4#,ZSA44..6F201212-201810

33449BMAGNET, TRANSMISSION

main33449-60010iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

4301

4302

9155180625

main91551-80625

18 parts on this diagram · 3 diagrams in section
