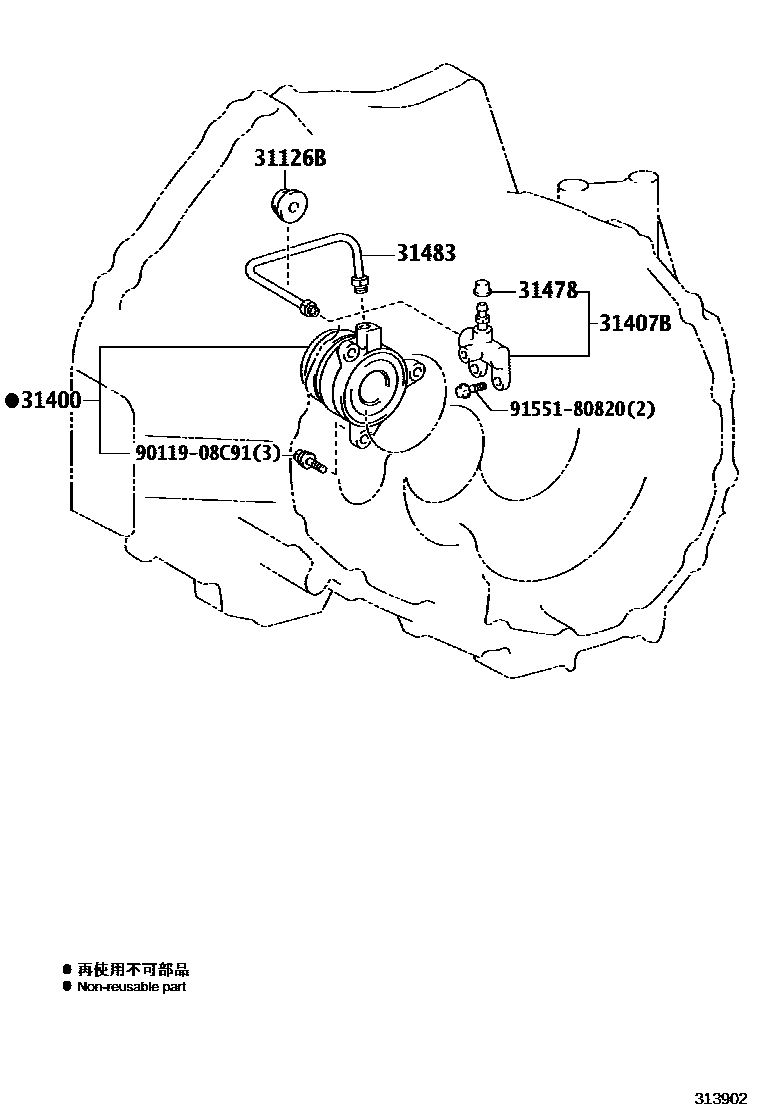

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

31126BBOOT, CLUTCH TUBE

main31126-20090iZSA44..6F201212-201810

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-39006iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-20011iZSA44..6F201212-201810

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iALA4#,ZSA44..6F201212-201810

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-20610iZSA44..6F201212-201810

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 3 diagrams in section
