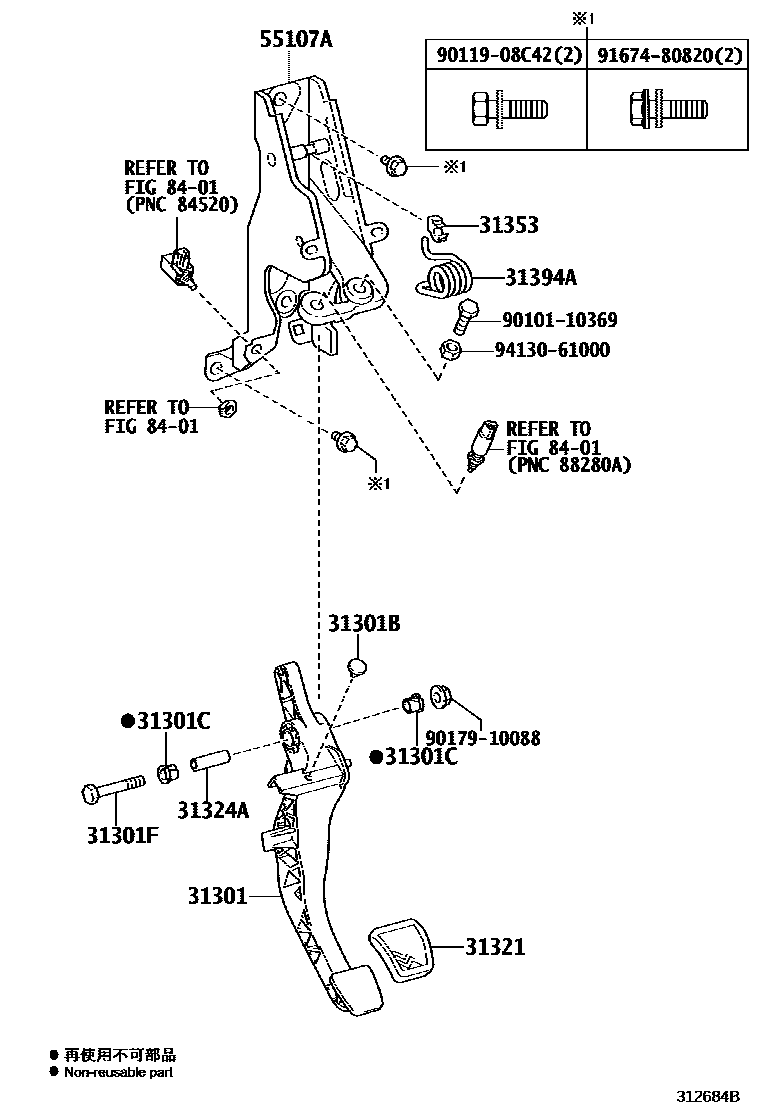

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42081iALA49..JPP..X..DCRE201212-201810

main31301-42090iZSA42..RUP..6F;ZSA44..RUP..6F..M;ZSA44..6F..(G,X)..RUS;ZSA42..JPP..6F..(G,M)201212-201810

main31311-42050iWWA42..RHD201212-201805

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iWWA42..RHD201212-201810

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iALA4#,ZSA44..6F201212-201810

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10039iALA4#,ZSA44..6F201212-201810

31321PAD, CLUTCH PEDAL

main31321-42010iWWA42;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201810

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iWWA42;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201810

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iWWA42;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201810

31394ASPRING, PEDAL W/HOOK

main31394-12050iALA4#,ZSA44..RHD..6F201212-201805

main31394-12070iALA49..JPP..X..DCRE201212-201810

NO.1

main31394-42050iALA4#..LHD..6F201212-201810

NO.2

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42080iWWA42..RHD201212-201805

main55107-42091iALA4#,ZSA44..LHD..6F201212-201810

8401

9010110369

main90101-10369

9011908C42

main90119-08C42

9017910088

main90179-10088

9167480820

main91674-80820

9413061000

main94130-61000

15 parts on this diagram · 11 diagrams in section
