EXHAUST GAS RECIRCULATION SYSTEM

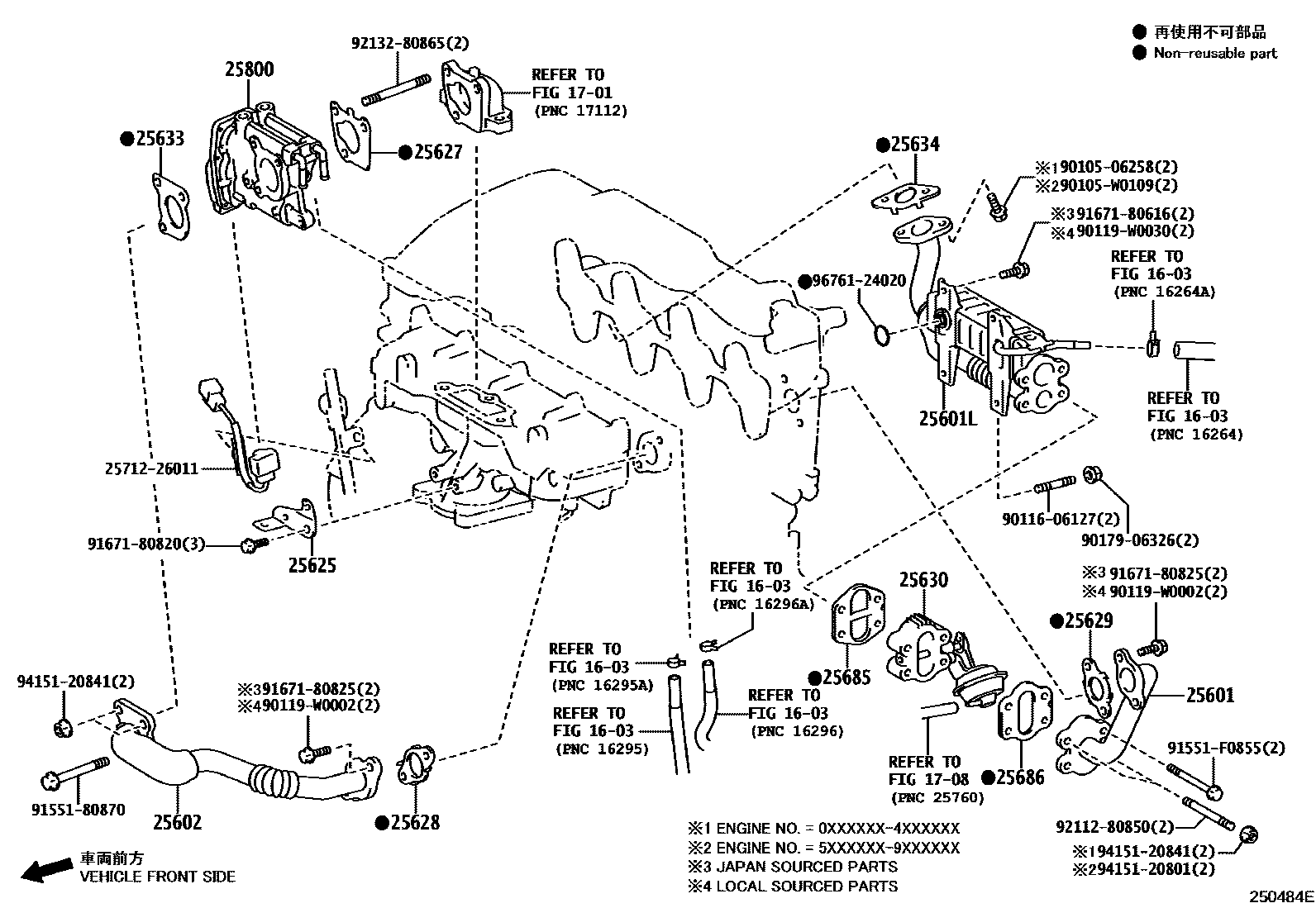

Parts diagram
1603
1701
1708
25601PIPE SUB-ASSY, EGR, NO.1
main25611-0R020i201212-201510
2AD-FTV,(L),*119
main25611-0R020i201212-201510
1AD-FTV,(L),*119
main25611-0R020i201212-201510
2AD-FHV,(L),*119
main25611-0R020i201212-201510
(L),*119
main25611-0R020i201510-201810
(L)
main25611-0R020i201506-201510
(L),*145
main25611-26030i201510-201810
(J)
main25611-26030i201212-201510
(J),*119
main25611-26030i201506-201510
(J),*145
25601LPIPE SUB-ASSY, EGR W/COOLER
main25601-0R020i201212-201510
1AD-FTV,*119
main25601-0R020i201510-201810
main25601-0R020i201212-201510
*119
main25601-0R020i201212-201510
2AD-FHV,*119
main25601-0R020i201212-201510
2AD-FTV,*119
main25601-0R020i201506-201510
*145
25602PIPE SUB-ASSY, EGR, NO.2
main25612-0R031i201212-201510
(L),*119
main25612-0R031i201212-201510
2AD-FHV,(L),*119
main25612-0R031i201212-201510
1AD-FTV,(L),*119
main25612-0R031i201510-201810
main25612-0R031i201506-201510
*145
main25612-0R031i201212-201510
2AD-FTV,(L),*119
main25612-26040i201212-201510
(J),*119
25625BRACKET, EGR VALVE
main25625-26010i201212-201510
2AD-FHV,*119
main25625-26010i201212-201510
2AD-FTV,*119
main25625-26010i201510-201810
main25625-26010i201506-201510
*145
main25625-26010i201212-201510
*119
main25625-26010i201212-201510
1AD-FTV,*119
25627GASKET, EGR VALVE
main25627-0R020i201510-201810
main25627-0R020i201506-201510
*145
main25627-26030i201212-201510
*119
main25627-26030i201212-201510
2AD-FHV,*119
main25627-26030i201212-201510
2AD-FTV,*119
main25627-26030i201212-201510
1AD-FTV,*119
main25627-36010i201510-201810
*347,*265 OR *524
main25627-36010i201510-201810
EXCEPT FOR WVTA,*347,*265 OR *524
main25627-36010i201510-201810
KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,*347,*265 OR *524
main25627-36010i201510-201810
HONG KONG,MACAO SPEC,*347,*265 OR *524
main25627-36010i201510-201810
FIJI SPEC,*347,*265 OR *524
main25627-36010i201510-201810
BOSNIA,HERZEGOVINA SPEC,*347,*265 OR *524
main25627-36010i201510-201810
MACEDONIA SPEC,*347,*265 OR *524
main25627-36010i201510-201810
SRI LANKA SPEC,*347,*265 OR *524
main25627-36010i201510-201810
JAMAICA SPEC,*347,*265 OR *524
main25627-36010i201510-201810
TRINIDAD-TOBAGO SPEC,*347,*265 OR *524
main25685-WA020i201510-201805
25628GASKET, EGR INLET
main25628-0R010i201506-201510
(L),*145
sub25628-26020
main25628-0R010i201510-201810
(L)
sub25628-26020
main25628-26020i201212-201510
1AD-FTV,*119
main25628-26020i201212-201510
2AD-FHV,*119
main25628-26020i201212-201510
2AD-FTV,*119
main25628-26020i201212-201510
*119
main25628-26020i201506-201510
(J),*145
main25628-26020i201510-201810
(J)
25629GASKET, EGR VALVE ADAPTER
main25629-0R010i201510-201810
main25629-0R010i201212-201510
(L),*119
main25629-0R010i201212-201510
1AD-FTV,(L),*119
main25629-0R010i201212-201510
2AD-FHV,(L),*119
main25629-0R010i201212-201510
2AD-FTV,(L),*119
main25629-0R010i201506-201510
*145
main25629-26010i201212-201510
(J),*119
25630VALVE ASSY, EGR, NO.2
main25630-26020i201212-201510
2AD-FTV,*119
main25630-26020i201212-201510
1AD-FTV,*119
main25630-26020i201212-201510
2AD-FHV,*119
main25630-26020i201212-201510
*119
main25630-26020i201506-201510
*145
main25630-26020i201510-201810
25633GASKET, EGR VALVE
main25633-0R020i201506-201510
*145
main25633-0R020i201510-201810
main25633-26020i201212-201510
1AD-FTV,*119
main25633-26020i201212-201510
*119
main25633-26020i201212-201510
2AD-FHV,*119
main25633-26020i201212-201510
2AD-FTV,*119
25634GASKET, EGR PIPE
main25634-0R010i201212-201510
*119
main25634-0R010i201212-201510
1AD-FTV,*119
main25634-0R010i201212-201510
2AD-FHV,*119
main25634-0R010i201212-201510
2AD-FTV,*119
main25634-0R010i201506-201510
*145
main25634-0R010i201510-201810
main25634-36010i201510-201810
EXCEPT FOR WVTA,*347,*265 OR *524
main25634-36010i201510-201810
*347,*265 OR *524
main25634-36010i201510-201810
KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,*347,*265 OR *524
main25634-36010i201510-201810
HONG KONG,MACAO SPEC,*347,*265 OR *524
main25634-36010i201510-201810
FIJI SPEC,*347,*265 OR *524
main25634-36010i201510-201810
BOSNIA,HERZEGOVINA SPEC,*347,*265 OR *524
main25634-36010i201510-201810
MACEDONIA SPEC,*347,*265 OR *524
main25634-36010i201510-201810
SRI LANKA SPEC,*347,*265 OR *524
main25634-36010i201510-201810
JAMAICA SPEC,*347,*265 OR *524
main25634-36010i201510-201810
TRINIDAD-TOBAGO SPEC,*347,*265 OR *524
25685GASKET, EGR COOLER, NO.1
main25685-0R011i201212-201510
*119
main25685-0R011i201212-201510
1AD-FTV,*119
main25685-0R011i201212-201510
2AD-FHV,*119
main25685-0R011i201212-201510
2AD-FTV,*119
main25685-0R011i201506-201510
*145
main25685-0R011i201510-201810
25686GASKET, EGR COOLER, NO.2
main25686-0R010i201212-201510
2AD-FTV,*119
main25686-0R010i201212-201510
*119
main25686-0R010i201212-201510
1AD-FTV,*119
main25686-0R010i201212-201510
2AD-FHV,*119
main25686-0R010i201506-201510
*145
main25686-0R010i201510-201810
main25686-WA020i201510-201805
25800VALVE ASSY, ELECTRIC EGR CONTROL
main25800-0R010i201212-201510
2AD-FHV,(L),*119
main25800-0R010i201212-201510
2AD-FTV,(L),*119
main25800-0R010i201510-201810
main25800-0R010i201212-201510
(L),*119
main25800-0R010i201212-201510
1AD-FTV,(L),*119
main25800-0R010i201506-201510
*145
main25800-26010i201212-201510
(J),*119
2571226011WIRE, EMISSION CONTROL VALVE
main25712-26011
9010506258
main90105-06258
90105W0109
main90105-W0109
9011606127
main90116-06127
90119W0002
main90119-W0002
90119W0030
main90119-W0030
9017906326
main90179-06326
9155180870
main91551-80870
91551F0855
main91551-F0855
9167180616
main91671-80616
9167180820
main91671-80820
9167180825
main91671-80825
9211280850
main92112-80850
9213280865
main92132-80865
9415120801
main94151-20801
9415120841
main94151-20841
9676124020
main96761-24020

33 parts on this diagram · 3 diagrams in section
