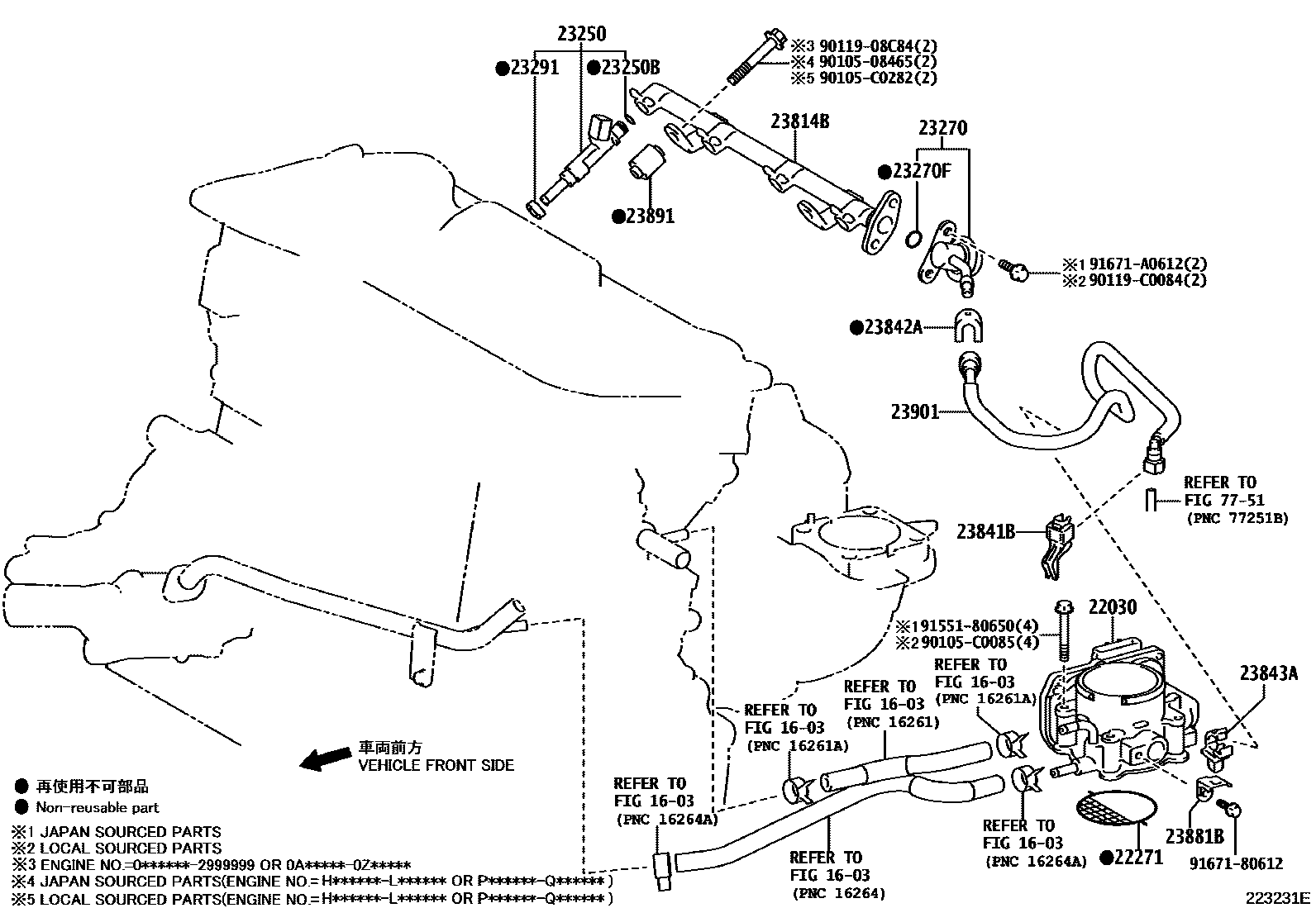

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V030i2ARFXE..AVA4#201510-201810

*347

main22030-0V040i2ARFE..ASA44..RUP201610

*347

main22030-36010i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)¥52,700201510-201810

*265 OR *524

main22030-36020i2ARFXE..AVA4#¥74,900201510-201810

*265 OR *524

main22030-WA011i2WW..WWA42201510-201805

22271GASKET, THROTTLE BODY

main22271-0V020i2ARFE..ASA44..RUP201610

*347

main22271-36010i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS¥0201510-201810

*265 OR *524

main22271-36020i2ARFXE..AVA4#¥0201510-201810

*347,*265 OR *524

main22271-75031i3ZRFAE..ZSA44¥250201212-201810

23250INJECTOR ASSY, FUEL

main23209-09230i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS201510-201810

*347

main23209-39146i3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)¥12,600201212-201810

main23209-39175i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2AR#..ASA44,AVA44..JPP..(G,M)¥12,600201510-201810

*265 OR *524

main23209-39235i3ZRFAE..ZSA44¥13,900201510-201810

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2AR#..ASA44,AVA4#¥140201510-201908

*265 OR *524

main90301-07037i3ZRFE..ZSA4#..RUP;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)¥140201212-201810

main90301-07037i2ARFXE..AVA4#;2ARFE..ASA44..RUP¥140201512

(J),*347

main90301-07037i2ARFE..ASA44¥140201908

(J),*265 OR *524

main90301-07037i2ARFXE..AVA4#¥140201510-201512

*347

main90301-C0072i2ARFE..ASA44201908

(L),*265 OR *524

main90301-C0072i2ARFXE..AVA4#;2ARFE..ASA44..RUP201512

(L),*347

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

*265 OR *524

main23270-36031i2ARFE..ASA44..RUP201610

*347

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASA44..RUP¥140201610

*347

main90301-07037i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)¥140201510-201810

*265 OR *524

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS201510-201810

(L),*347

main23291-23010i3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)¥240201212-201810

TYPE A:REFER ILLUST.

main23291-28020i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS¥310201510-201810

*265 OR *524

main23291-28020i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS¥310201212-201810

TYPE B:REFER ILLUST.

main23291-28020i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS¥310201510-201810

(J),*347

23814BPIPE, FUEL DELIVERY

main23814-0V050i2ARFE..ASA44..RUP201610

(L),*347

main23814-36040i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)¥7,100201510-201810

*265 OR *524

main23814-36040i2ARFE..ASA44..RUP¥7,100201610

(J),*347

main23814-36050i2ARFXE..AVA4#¥8,700201510-201810

*347,*265 OR *524

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-36020i3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)¥0201212-201810

main23841-37080i2ARFXE..AVA4#¥500201510-201601

sub23841-37081¥310

main23841-37081i2ARFXE..AVA4#¥310201602-201810

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i3ZRFAE..ZSA44¥500201212-201810

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-28010i3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)¥220201212-201810

23881BBRACKET, FUEL HOSE

main23881-36010i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS¥260201510-201810

main23881-36040i2ARFXE..AVA4#¥220201510-201810

23891SPACER, FUEL DELIVERY

main23891-36010i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2AR#..ASA44,AVA44..JPP..(G,M)¥300201510-201810

*347

main23891-36010i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2AR#..ASA44,AVA44..JPP..(G,M)¥300201510-201810

*265 OR *524

23901TUBE SUB-ASSY, FUEL

main23901-36070i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main23901-36110i2ARFXE..AVA4#¥4,020201510-201810

main23901-37220i3ZRFAE..ZSA44¥4,020201212-201810

7751

9010508465

main90105-08465¥100

90105C0085

main90105-C0085

90105C0282

main90105-C0282

9011908C84

main90119-08C84¥110

90119C0084

main90119-C0084

9155180650

main91551-80650¥80

9167180612

main91671-80612¥60

91671A0612

main91671-A0612¥60

24 parts on this diagram · 4 diagrams in section
