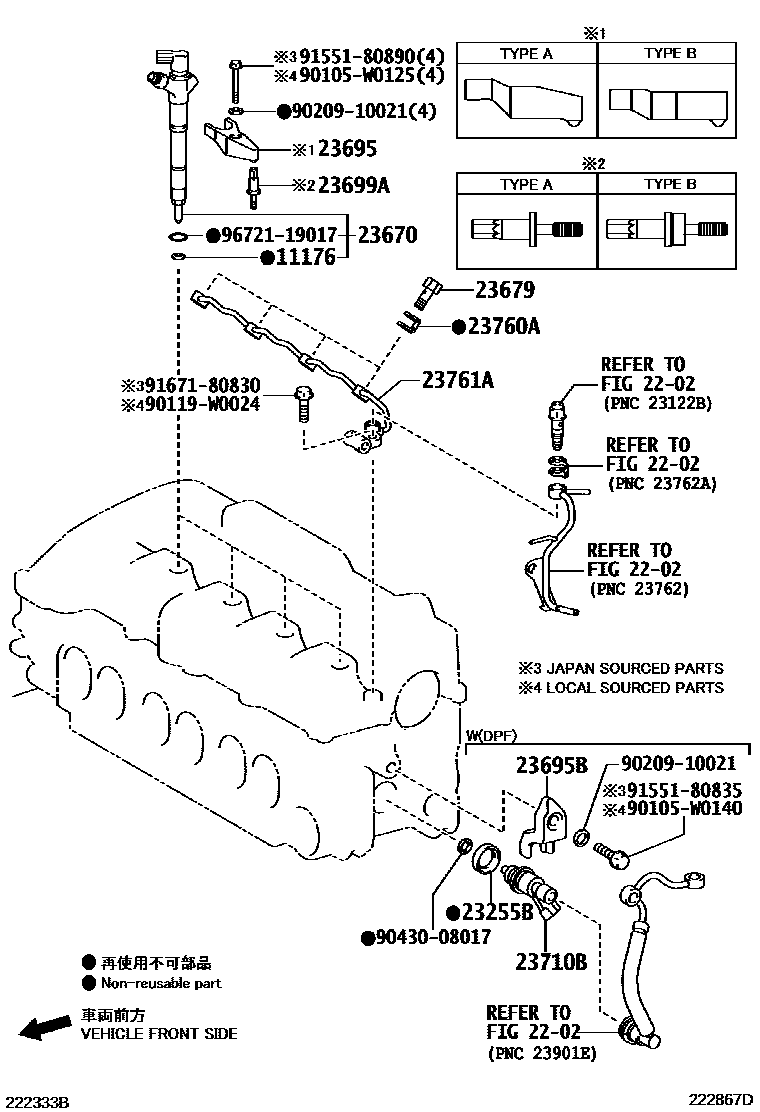

INJECTION NOZZLE

0001 1 0002 1

11176SEAT, INJECTION NOZZLE

main11176-26020×4i2ADFHV..ALA49201212-201510

2AD-FHV,*119

2202

23255BSEAL, FUEL INJECTOR

main23255-26010i2ADFHV..ALA49201212-201510

2AD-FHV,*119

23670INJECTOR ASSY

main23670-29115×4i1ADFTV..ALA40,41201212-201403

*119

main23670-29116×4i1ADFTV..ALA40,41201403-201407

*145

main23670-29125×4i2ADFHV..ALA49201212-201403

2AD-FHV,*119

main23670-29126×4i2AD#..ALA49201403-201407

*145

main23670-WA030×4i2WW..WWA42201510-201805

23679SCREW, INJECTOR FOLLOW

main23679-26020×4i2ADFTV..ALA49..DCR201506-201510

*145

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R021×4i2ADFHV..ALA49201212-201510

2AD-FHV,*119T/P A:REF.ILLUST

main23695-26020×4i1ADFTV,2AD#..ALA4#201212-201510

*119T/P B:REF.ILLUST

main23695-WA010×4i2WW..WWA42201510-201805

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i2ADFHV..ALA49201212-201510

2AD-FHV,*119

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R021×4i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510

main23699-26021×4i2ADFHV..ALA49201212-201510

2AD-FHV,*119T/P A:REF.ILLUST

main23699-26030×4i1ADFTV,2AD#..ALA4#201212-201510

*119T/P B:REF.ILLUST

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26012i2ADFHV..ALA49201212-201510

2AD-FHV,*119

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-WA021i2WW..WWA42201510-201805

23760AGASKET

main90904-30008×4i2ADFHV..ALA49201212-201510

2AD-FHV,*119

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R040i2ADFHV..ALA49201212-201510

2AD-FTV,(L),*119

main23761-26030i1ADFTV,2AD#..ALA4#201212-201510

(J),*119

90105W0125

main90105-W0125

90105W0140

main90105-W0140

90119W0024

main90119-W0024

9020910021

main90209-10021

9043008017

main90430-08017

9155180835

main91551-80835

9155180890

main91551-80890

9167180830

main91671-80830

9672119017

main96721-19017
